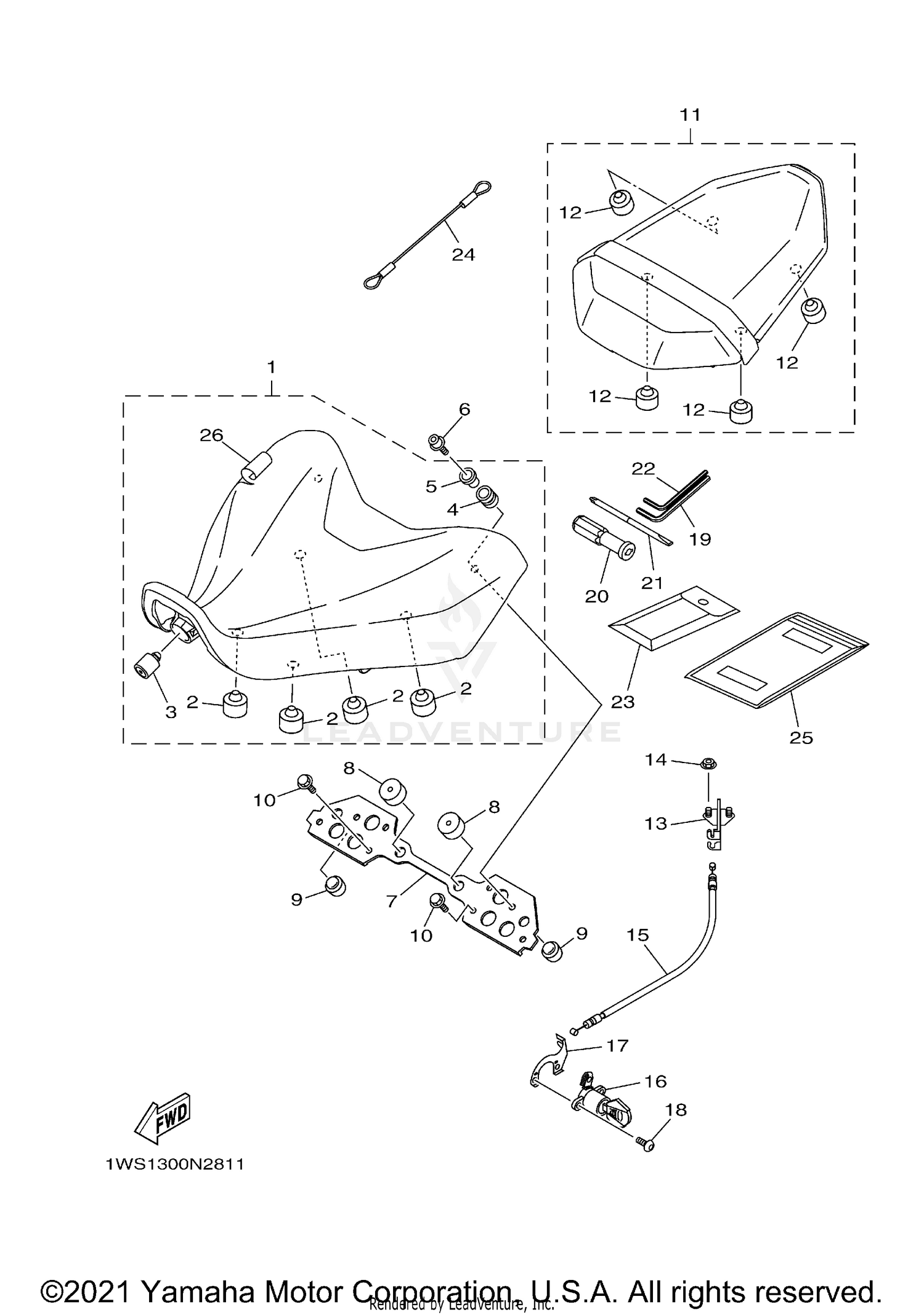

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSY
1WS-24710-00-00
Superseded by 1WS-24710-01-00
|
$150.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
STOPPER, MAIN STAND
371-27114-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER, MAIN STAND
1D7-27114-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET
90480-14604-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEXAGON SOCKET HEAD
90110-06172-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET
1WS-21131-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
STOPPER, MAIN STAND
5RU-27114-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
STOPPER, MAIN STAND
157-27114-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95812-06010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
TANDEM SEAT ASSY
1WS-24750-00-00
Superseded by 1WS-24750-01-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
STOPPER, MAIN STAND
278-27114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAT LOCK ASSY
1WS-24780-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, WITH WASHER
95702-06500-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
CABLE, SEAT LOCK
1WS-2478E-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAT LOCK ASSY
2TV-W2470-00-00
Superseded by 3CK-W2470-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
STAY, LOCK
23P-2117K-00-00
Superseded by 23P-2117K-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
90149-06030-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WRENCH, HEXAGON 8
14B-28164-00-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
GRIP, DRIVER
2H7-28151-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
DRIVER
137-28152-00-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
WRENCH, HEXAGON 8
23P-28164-00-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#23
TOOL KIT
1WS-28100-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
HANGER, HELMET
2S3-21398-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
POUCH
4KG-28186-10-00
Superseded by 4KG-28186-11-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
Seat Cover Comp
1WS-2470F-00-00
Superseded by 1WS-2470F-01-00
|
$47.99 | ||
|
Unavailable |
|||
