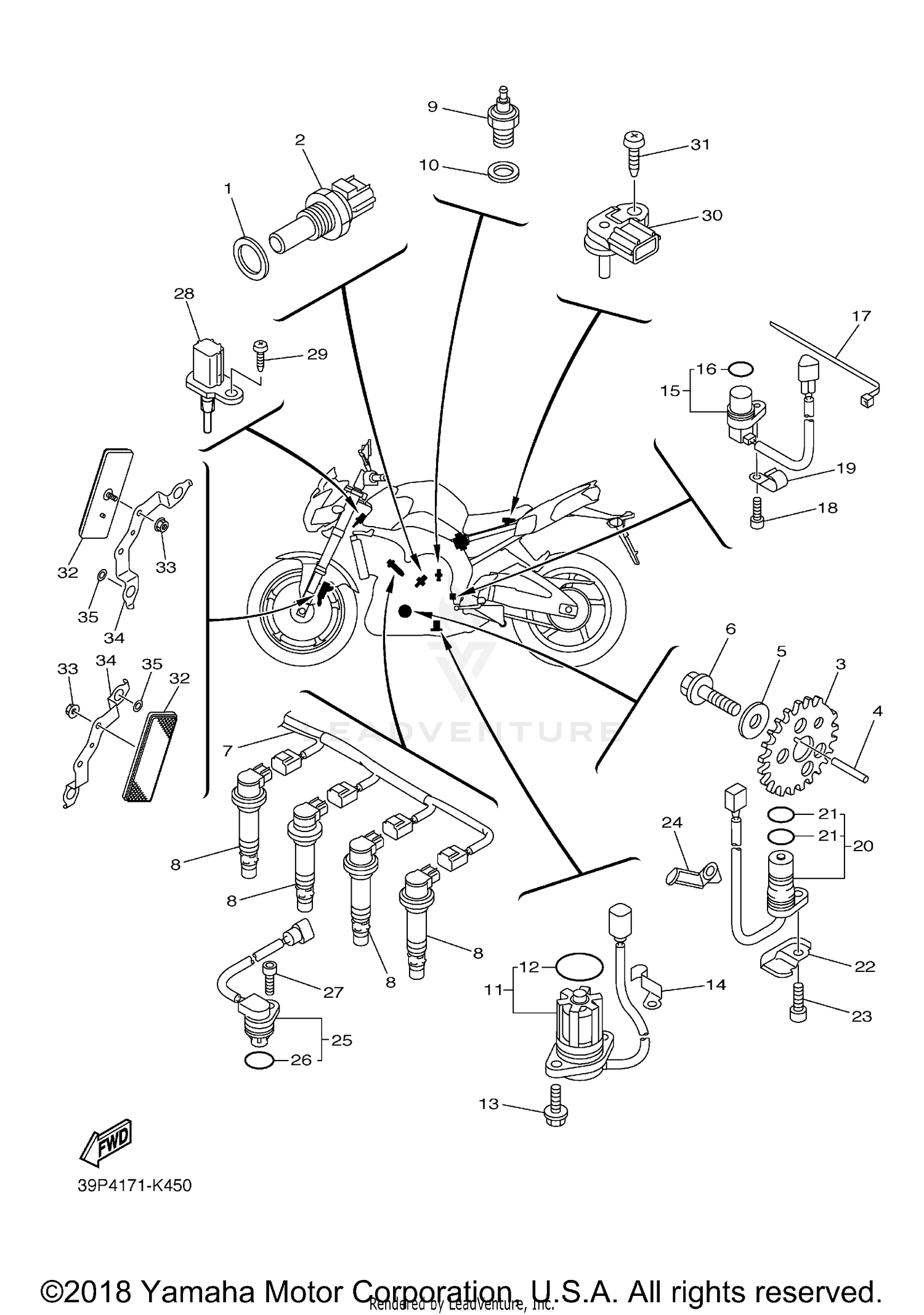

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WASHER, PLATE
90201-12790-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
THERMOSENSOR ASSY
8CC-85790-01-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ROTOR
2D1-81673-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
KEY, STRAIGHT
90282-03001-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-10039-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-10290-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WIRE, SUB LEAD
39P-82309-00-00
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
IGNITION COIL ASSY
39P-82310-10-00
|
$165.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET
90430-10148-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL LEVEL GAUGE ASSY
5VY-85720-00-00
|
$163.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
5VY-8A8E0-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95022-06016-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90465-08053-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SENSOR, SPEED
4XV-83755-03-00
Superseded by 4XV-83755-04-00
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
4D9-81168-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
90464-51001-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT (4MY)
90110-06161-00
Superseded by 91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90462-08057-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PICK-UP ASSY
23P-81670-00-00
Superseded by 23P-81670-01-00
|
$128.99 | ||
|
Unavailable |
|||
|
#21
O-RING 1
5VY-8A8E1-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE
23P-15589-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT (4MY)
90110-06161-00
Superseded by 91317-06016-00
|
$1.15 | ||
|
Unavailable |
|||
|
#24
CLAMP
90465-08054-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SENSOR, CAM POSITION
5VY-85896-00-00
Superseded by 5VY-85896-02-00
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
4D9-81168-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#27
BOLT, HEXAGON SOCKET HEAD
90110-06175-00
Superseded by 91314-06020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
SENSOR, AIR TEMPERATURE
5YU-85886-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, TAPPING
97702-50520-00
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#30
SENSOR, PRESSURE
5S7-82380-00-00
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, TAPPING
97702-60520-00
Superseded by 97707-60520-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
REFLECTOR ASSY
11H-85110-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, FLANGE
95702-05500-00
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
|
#34
BRACKET, REFLECTOR 1
39P-85112-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLATE
90201-10057-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
