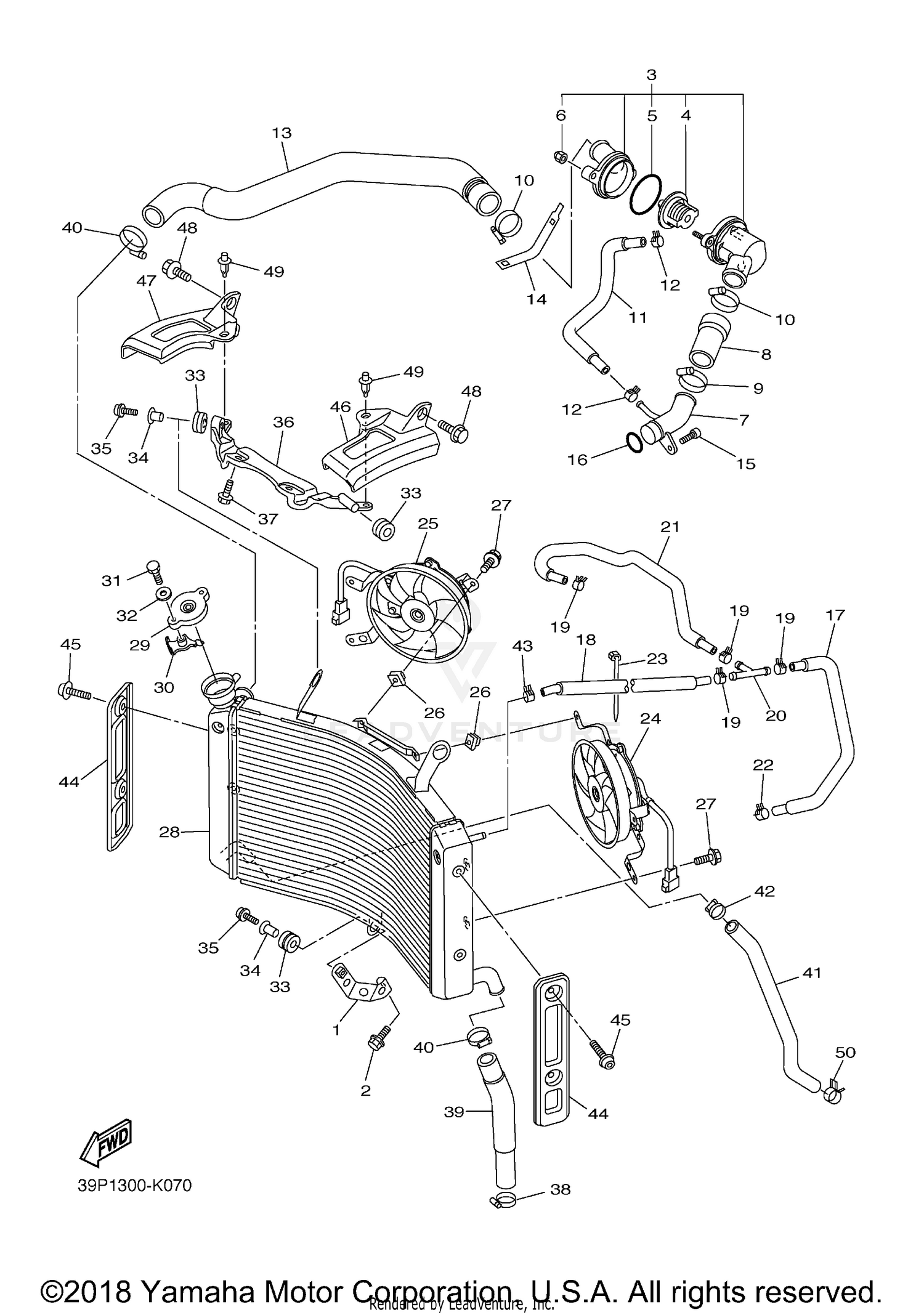

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAY 1
39P-12637-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE (SMALL HEAD)
95024-06012-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
THERMOSTAT ASSY
2D1-12410-00-00
Superseded by 2D1-12410-01-00
|
$91.99 | ||
|
Unavailable |
|||
|
#4
THERMOSTAT
5LP-12411-00-00
Superseded by 5LP-12411-01-00
|
$36.99 | ||
|
Unavailable |
|||
|
#5
O-RING
93210-49046-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, CROWN
90176-06014-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE 5
5VY-12485-10-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE 4
5VY-12579-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE CLAMP ASSY
90450-35001-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE CLAMP ASSY
90450-38040-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE,3
39P-1243F-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP
90467-11090-00
Superseded by 90467-10135-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE 3
39P-12578-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER 1
5GV-1246A-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (4MY)
90110-06161-00
Superseded by 91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
93210-235A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE 1
5VY-1243A-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE, 4
2D1-1244G-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP
90467-11090-00
Superseded by 90467-10135-00
|
$7.49 | ||
|
Unavailable |
|||
|
#20
WAY 3
90413-07023-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE 2
39P-1243E-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP
90467-10039-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
BLOWER ASSY
2D1-12405-01-00
|
$343.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BLOWER ASSY
39P-12405-10-00
|
$310.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLATE
1AA-12535-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, BLOWER HOLDING
2D1-12675-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#28
RADIATOR COMP
2D1-12461-00-00
|
$575.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CAP, RADIATOR
4FL-12462-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
STOPPER
5FC-12437-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, HEXAGON
97007-05012-00
Superseded by 97017-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#33
GROMMET
90480-15363-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, HEXAGON SOCKET HEAD
90110-06172-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
STAY, RADIATOR
39P-12464-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE
95802-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#38
HOSE CLAMP ASSY
90450-32001-00
Superseded by 90450-32003-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
HOSE 7
2D1-12551-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
HOSE CLAMP ASSY
90450-32001-00
Superseded by 90450-32003-00
|
$15.99 | ||
|
Unavailable |
|||
|
#41
HOSE 6
39P-12589-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
HOSE CLAMP ASSY
90450-22017-00
Superseded by 90450-22M14-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLIP
90467-11090-00
Superseded by 90467-10135-00
|
$7.49 | ||
|
Unavailable |
|||
|
#44
RADIATOR COVER ASSY 1
39P-1240J-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT, HEX. SOCKET BUTTON
90111-06079-00
Superseded by 90111-06031-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
COVER 1
39P-1246A-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
COVER 2
39P-1246E-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT, FLANGE
95022-06014-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#49
RIVET
90269-06001-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
CLIP
90467-200A0-00
|
$9.04 | ||
|
Available to order. Add to View Price |
|||
