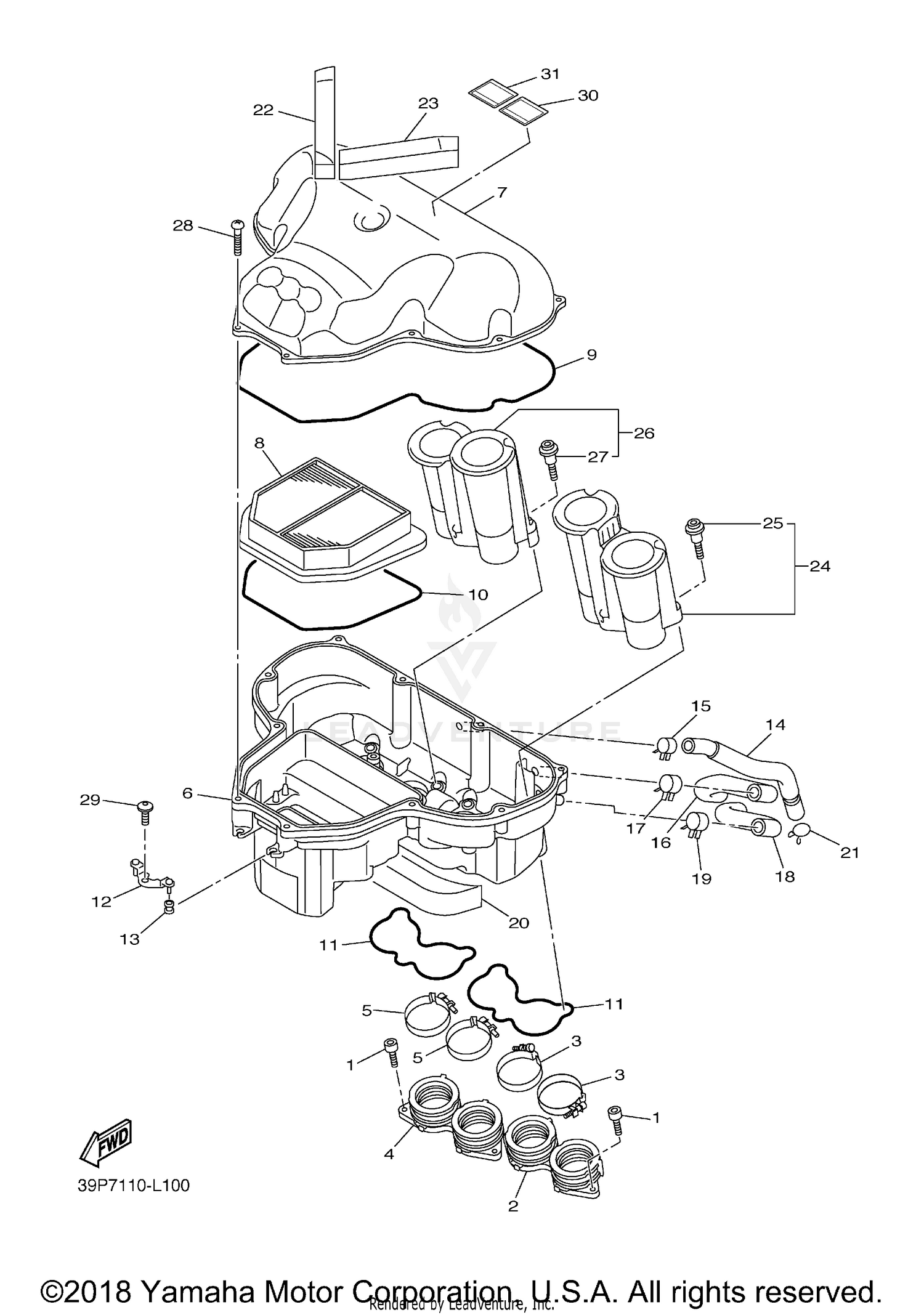

2012 Yamaha FZ 8 INTAKE OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT, HEXAGON SOCKET HEAD
91312-06016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
JOINT
39P-13595-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE CLAMP ASSY
90450-56007-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
JOINT, CARBURETOR 2
39P-13596-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE CLAMP ASSY
90450-56007-00
|
$12.49 | ||
|
Unavailable |
|||
|
#6
CASE, AIR CLEANER 1
39P-14411-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CASE, AIR CLEANER 2
39P-14421-00-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
ELEMENT, AIR CLEANER
2D1-14451-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL
2D1-14452-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL
2D1-14462-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL
39P-14457-00-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY 1
2D1-14498-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-08264-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE, BREATHER 2
39P-15393-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP
90467-14171-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIPE
39P-14148-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
90467-17003-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIPE
39P-14149-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP
90467-17003-00
|
$5.49 | ||
|
Unavailable |
|||
|
#20
DAMPER
2D1-14409-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
90467-14015-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER 1
39P-14425-00-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER 2
39P-14426-00-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
JOINT ASSY
39P-1440B-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
90109-05005-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#26
JOINT ASSY 2
39P-1440C-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
90109-05005-00
|
$3.35 | ||
|
Unavailable |
|||
|
#28
SCREW, ROUND TAPPING
90160-05013-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, HEX. SOCKET BUTTON
90111-06038-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLATE, ROUTING 2
39P-21686-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLATE, ROUTING
13S-21684-10-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
