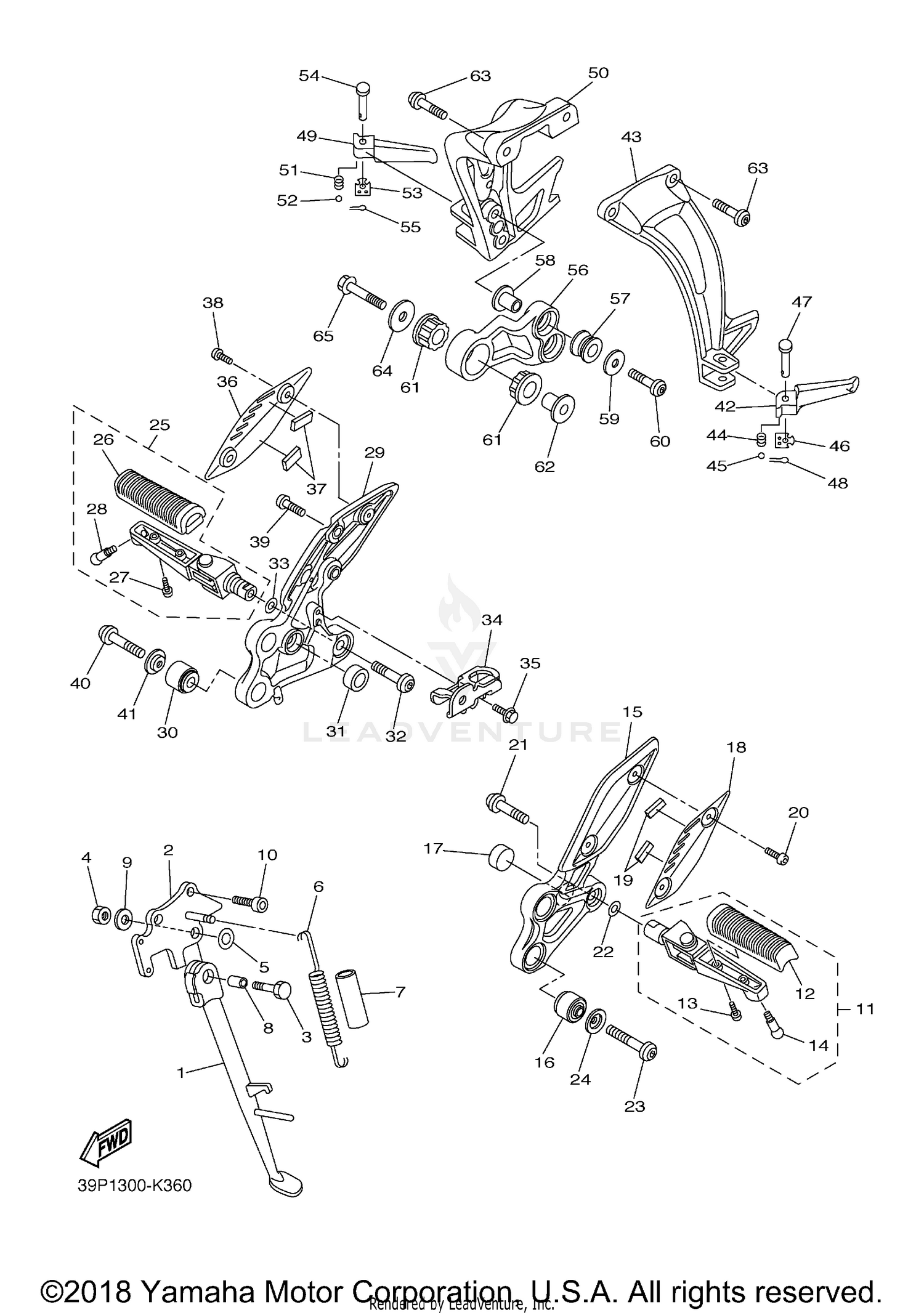

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE
39P-27311-00-00
|
$145.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, SIDE STAND
2D1-27321-00-00
|
$162.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
90101-10025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, SELF-LOCKING
90185-10023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-16027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, TENSION
90506-18020-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE (L60)
90445-19002-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-10050-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-10035-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
90110-10028-00
Superseded by 91312-10030-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
FRONT FOOTREST ASSY (LEFT)
39P-27410-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, FOOTREST
4BP-27413-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
90157-05025-00
Superseded by 98580-05014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
90109-08203-00
Superseded by 90109-08204-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET 2
39P-27442-00-00
|
$200.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER, FOOTREST 2
1NL-27424-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
STOPPER, MAIN STAND
5VX-27114-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER 1
39P-27486-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, DAMPER
1HX-27415-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, BUTTON HEAD
90111-05015-00
Superseded by 92014-05008-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT,HEX. SOCKET BUT
90111-10039-00
Superseded by 90111-10040-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, WAVE
90206-17084-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
90110-08071-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER
90209-08295-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
FRONT FOOTREST ASSY (RIGHT)
39P-27420-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER, FOOTREST
4BP-27413-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#27
SCREW, PAN HEAD
90157-05025-00
Superseded by 98580-05014-00
|
$6.99 | ||
|
Unavailable |
|||
|
#28
BOLT
90109-08203-00
Superseded by 90109-08204-00
|
$6.49 | ||
|
Unavailable |
|||
|
#29
BRACKET 3
39P-27443-00-00
|
$170.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
DAMPER, FOOTREST 2
1NL-27424-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#31
STOPPER, MAIN STAND
5VX-27114-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#32
BOLT,HEX. SOCKET BUT
90111-10039-00
Superseded by 90111-10040-00
|
$4.50 | ||
|
Unavailable |
|||
|
#33
WASHER, WAVE
90206-17084-00
|
$10.49 | ||
|
Unavailable |
|||
|
#34
STAY, STOP SWITCH
39P-2144G-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE
95802-06008-00
Superseded by 95817-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
COVER 2
39P-27487-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
PLATE, DAMPER
1HX-27415-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#38
BOLT, BUTTON HEAD
90111-05015-00
Superseded by 92014-05008-00
|
$3.85 | ||
|
Unavailable |
|||
|
#39
BOLT, BUTTON HEAD
92017-08020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, HEXAGON SOCKET HEAD
90110-08071-00
|
$8.49 | ||
|
Unavailable |
|||
|
#41
WASHER
90209-08295-00
|
$7.49 | ||
|
Unavailable |
|||
|
#42
FOOTREST, REAR 1
3VR-27431-01-00
Superseded by 3VR-27431-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BRACKET 4
2D1-2741L-10-00
|
$237.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
SPRING, COMPRESSION
90501-12743-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#45
BALL
93501-04011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER, SPECIAL
5VX-27437-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
PIN, CLEVIS
91702-08040-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#48
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#49
FOOTREST, REAR 2
3VR-27441-01-00
Superseded by 3VR-27441-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
BRACKET 5
39P-2742L-00-00
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
SPRING, COMPRESSION
90501-12743-00
|
$3.90 | ||
|
Unavailable |
|||
|
#52
BALL
93501-04011-00
|
$7.49 | ||
|
Unavailable |
|||
|
#53
WASHER, SPECIAL
5VX-27437-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#54
PIN, CLEVIS
91702-08040-00
|
$4.10 | ||
|
Unavailable |
|||
|
#55
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Unavailable |
|||
|
#56
BRACKET, MUFFLER 2
39P-21436-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
DAMPER, MUFFLER
5BE-14747-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
COLLAR
90387-08021-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
WASHER, PLATE
90201-08054-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
BOLT, BUTTON HEAD
92012-08035-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#61
DAMPER, FOOTREST 2
39P-27424-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
COLLAR
90387-10097-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
BOLT
90109-085G6-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#64
WASHER, PLATE
90201-10073-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#65
BOLT, FLANGE
90105-10158-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
