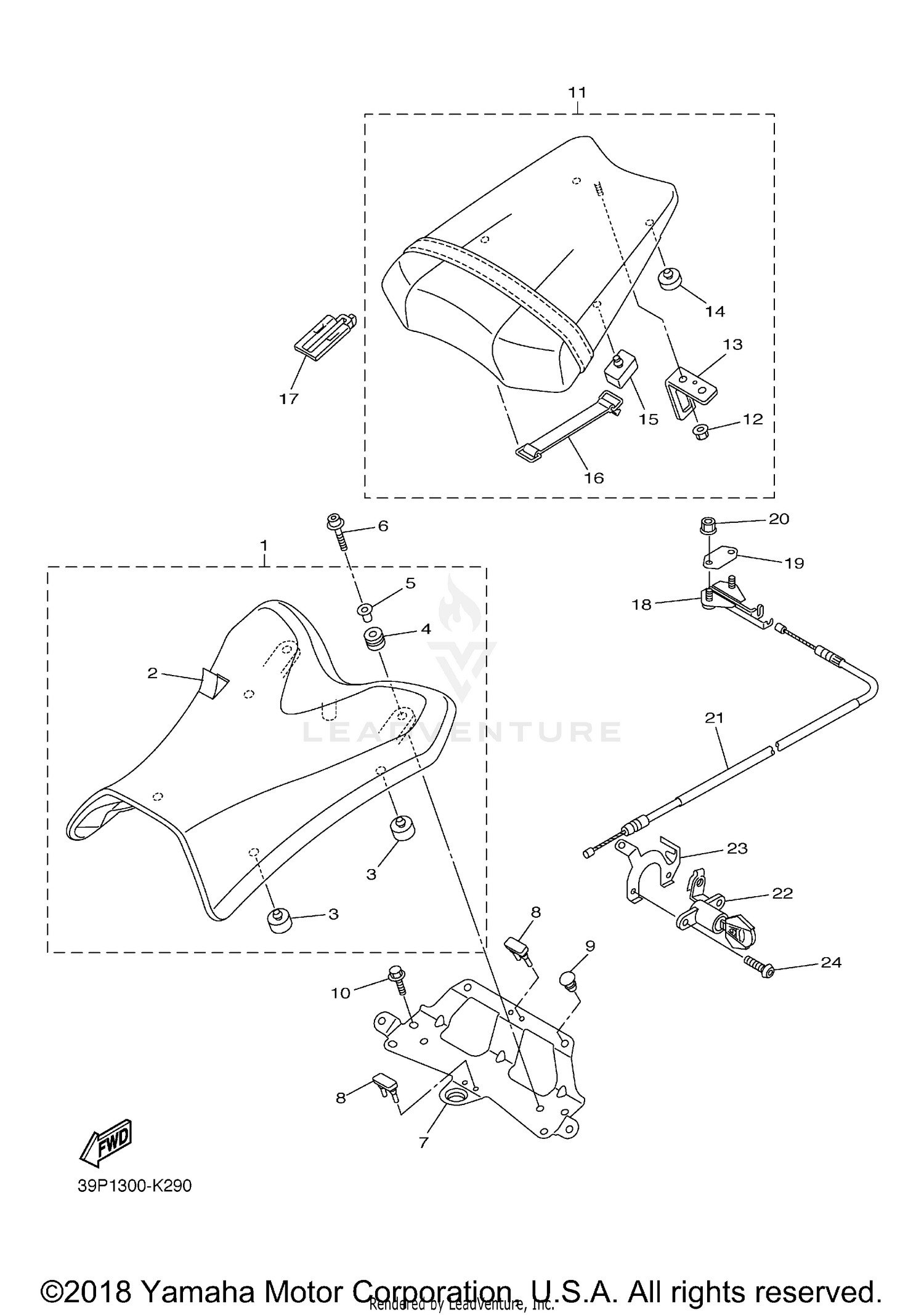

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSY
39P-24710-00-00
Superseded by 39P-24710-01-00
|
$121.99 | ||
|
Unavailable |
|||
|
#2
SEAT COVER COMP.
39P-2470F-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER, MAIN STAND
278-27114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET
90480-14604-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEXAGON SOCKET HEAD
90110-06232-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, SEAT
39P-21349-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
STOPPER, UPPER MOU
682-44532-00-00
Superseded by 682-44532-01-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG
90338-07043-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95022-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
TANDEM SEAT ASSY
39P-24750-00-00
Superseded by 39P-24750-01-00
|
$143.99 | ||
|
Unavailable |
|||
|
#12
NUT, FLANGE
95702-06500-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, SEAT
4NK-24728-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PAD, SEAT
22W-24741-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PAD, SEAT
39P-24741-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAND, BATTERY
18G-82131-00-00
Superseded by 7H3-82131-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
STOPPER
39P-24768-00-00
Superseded by 39P-24768-01-00
|
$6.49 | ||
|
Unavailable |
|||
|
#18
SEAT LOCK ASSY
4BP-24780-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE
4BP-24792-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, FLANGE
95702-06500-00
|
$2.25 | ||
|
Unavailable |
|||
|
#21
CABLE, SEAT LOCK
2D1-2478E-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAT LOCK ASSY
2TV-W2470-00-00
Superseded by 3CK-W2470-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
STAY, LOCK
4XV-2117K-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW
90149-06134-00
Superseded by 90149-06135-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
