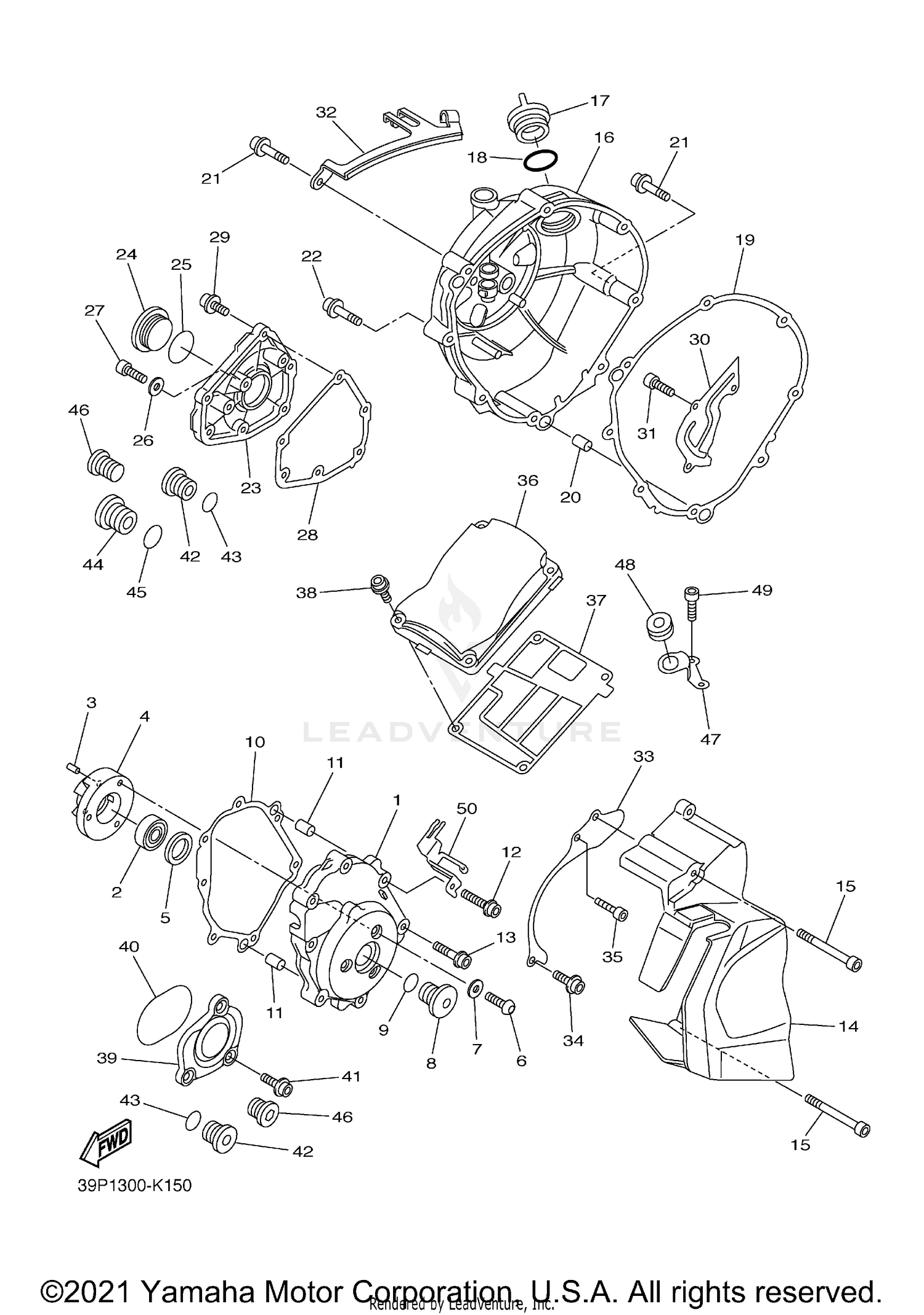

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE 1
5VY-15411-00-00
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-20124-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
93605-10108-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOUSING, BEARING 2
5VY-15164-00-00
|
$192.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR 2
5VY-15542-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
90149-06064-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-06431-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG
5PX-15189-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-22382-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, CRANKCASE COVER 1
2D1-15451-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN
99480-10018-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
90110-06388-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
90110-08099-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, CHAIN CASE
2D1-15418-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
90110-06255-00
Superseded by 90110-06256-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, CRANKCASE 2
2D1-15421-00-00
|
$142.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLUG, OIL LEVEL
3F9-15362-10-00
Superseded by BAT-15362-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#18
O-RING
93210-27194-00
Superseded by 93210-27778-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET, CRANKCASE COVER 2
4C8-15461-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, DOWEL
93610-20189-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEXAGON SOCKET HEAD
90110-06321-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
90110-06320-00
Superseded by 90110-06321-00
|
$3.35 | ||
|
Unavailable |
|||
|
#23
COVER, OIL PUMP
2D1-15416-00-00
|
$146.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLUG, STRAIGHT SCREW
90340-32004-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING
93210-32172-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET
90430-08143-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, BUTTON HEAD
92014-08012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET, OIL PUMP COVER 1
4C8-15456-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, HEXAGON SOCKET HEAD
90110-06331-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLATE, BREATHER
5VY-11165-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT
90110-06182-00
Superseded by 91317-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOLDER, CLUTCH CABLE
39P-15441-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
PLATE
39P-15113-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
90110-06277-00
Superseded by 91312-06014-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, HEXAGON SOCKET HEAD
90110-06276-00
Superseded by 90110-06219-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
COVER
2D1-15413-10-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
GASKET, CRANKCASE COVER 3
4C8-15462-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, HEXAGON SOCKET HEAD
90110-06349-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#39
COVER, CRANKCASE 3
4C8-15431-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
O-RING
93210-57003-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, HEXAGON SOCKET HEAD
90110-06331-00
|
$5.49 | ||
|
Unavailable |
|||
|
#42
PLUG
36Y-15189-00-00
Superseded by 36Y-15189-01-00
|
$12.99 | ||
|
Unavailable |
|||
|
#43
O-RING
93210-16325-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
PLUG
4H7-15189-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
O-RING
93210-22382-00
|
$7.49 | ||
|
Unavailable |
|||
|
#46
PLUG, STRAIGHT SCREW
90340-12003-00
Superseded by 90340-12112-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
STAY
5VY-12443-10-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#48
GROMMET
90480-13014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
BOLT
91380-06014-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#50
STAY
39P-14413-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
