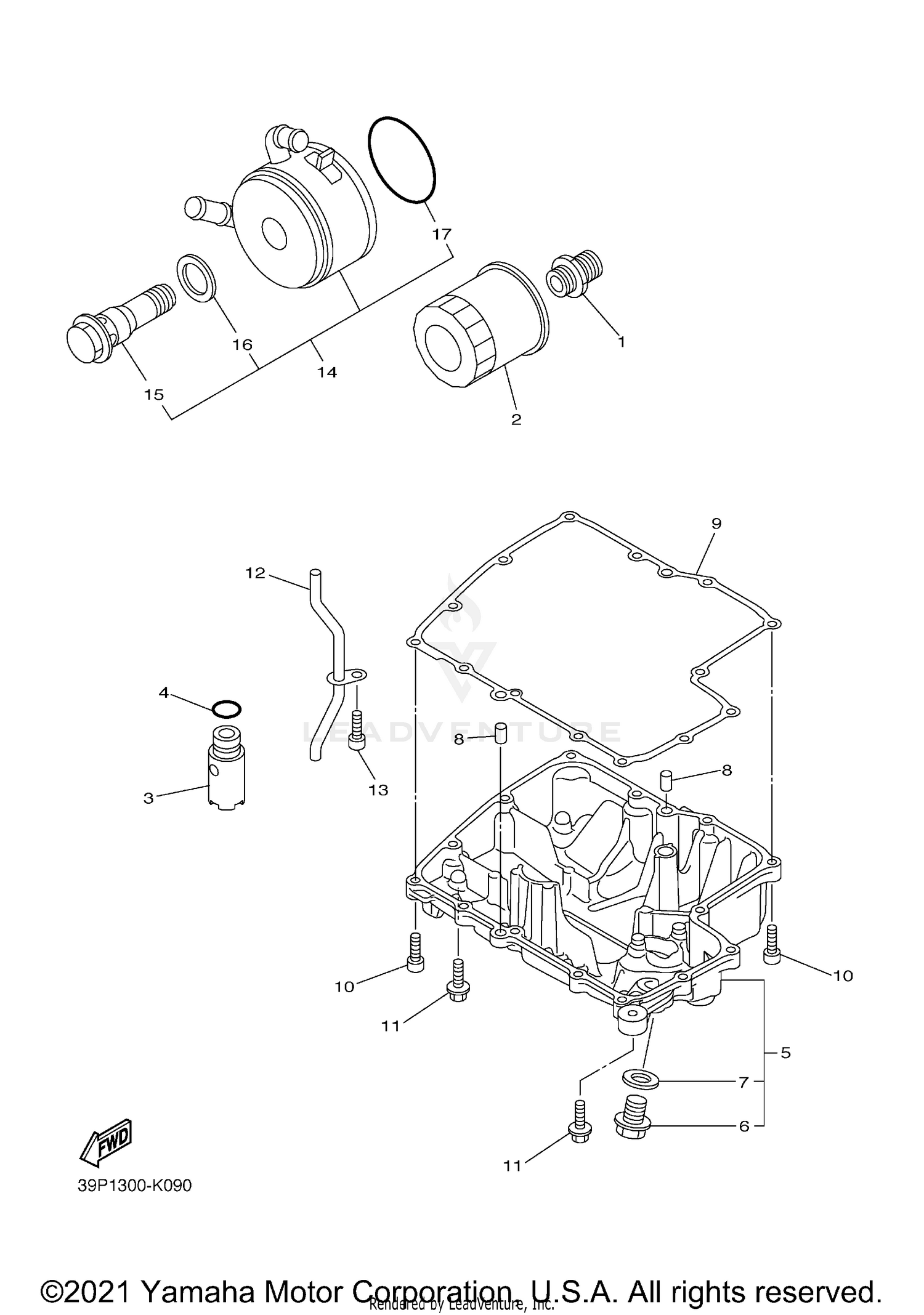

Oil Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT, UNION
90401-20008-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ELEMENT ASSY, OIL CLEANER
5GH-13440-50-00
Superseded by 5GH-13440-80-00
|
$14.99 | ||
|
Unavailable |
|||
|
#3
RELIEF VALVE ASSY
5VY-13490-00-00
|
$202.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
STRAINER COVER ASSY
39P-13400-00-00
|
$354.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG, STRAIGHT SCREW
90340-14132-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
214-11198-01-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, DOWEL
99530-08012-00
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, STRAINER COVER
4C8-13414-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
91312-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95812-06010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE, DELIVERY 1
5VY-13161-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (4MY)
90110-06161-00
Superseded by 91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL COOLER ASSY
39P-13470-00-00
|
$377.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, UNION
5FL-12822-00-00
|
$205.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET
5EB-13475-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
5JW-13473-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
