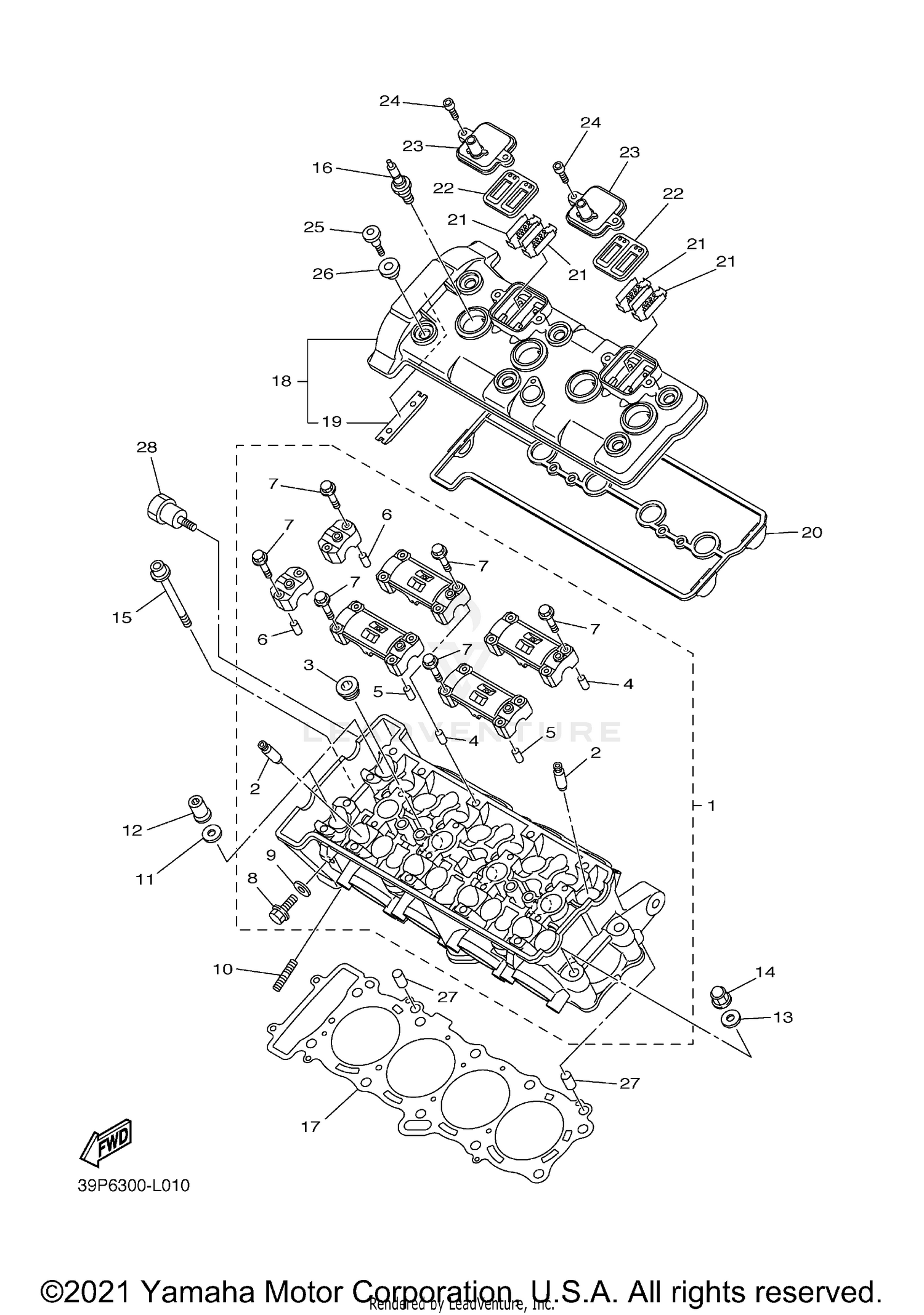

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
39P-11101-09-00
|
$870.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE 2
20S-11134-10-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLUG, STRAIGHT SCREW
90340-18002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
91808-16023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, DOWEL
91808-16023-00
|
$7.49 | ||
|
Unavailable |
|||
|
#6
PIN, DOWEL
91808-16023-00
|
$7.49 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE
90105-06027-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (SMALL HEAD)
95024-06012-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, STUD
90116-08087-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-10035-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
90179-10029-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-10035-00
|
$3.95 | ||
|
Unavailable |
|||
|
#14
NUT, CROWN
90176-10075-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
90110-06212-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CR9E NGK SPLUG 4PK
94701-00318-00
Superseded by CR9-E0000-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#17
GASKET, CYLINDER HEAD 1
39P-11181-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, CYLINDER HEAD 1
4C8-11191-00-00
|
$276.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GUIDE, STOPPER 2
5BE-12241-00-00
Superseded by 5BE-12241-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET, HEAD COVER 1
4C8-11193-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLATE
5VY-1482K-00-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
REED VALVE ASSY
5SL-14890-10-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP, CASE
5VY-14899-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEXAGON SOCKET HEAD
90110-06175-00
Superseded by 91314-06020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
90109-066F0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
RUBBER, MOUNT 1
5VY-1111G-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, DOWEL
99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, MOUNT
2D1-11026-00-00
Superseded by 2D1-11026-10-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
