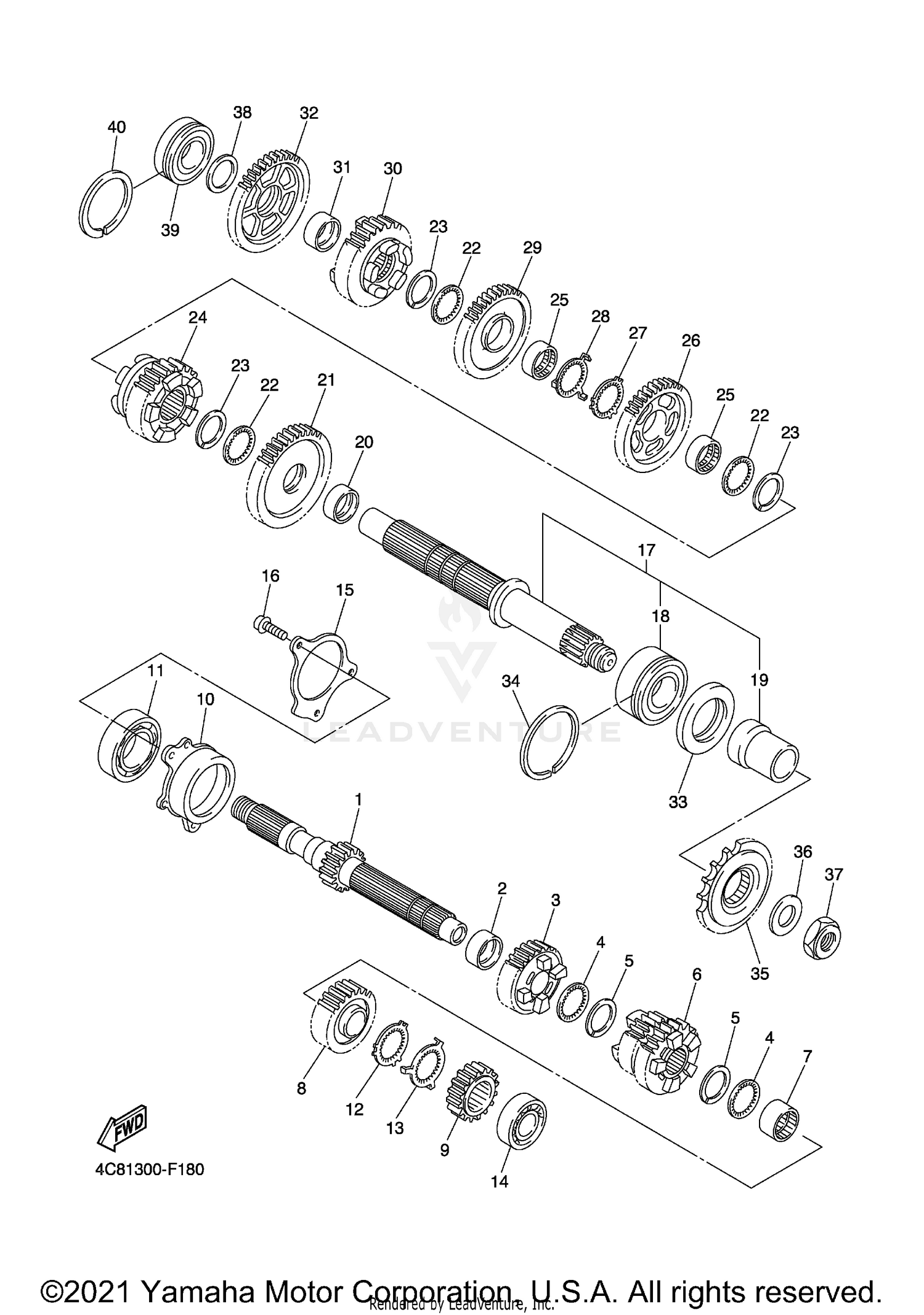

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN (13T)
39P-17411-00-00
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-28003-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 5TH PINION (20T)
39P-17151-00-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
90209-25011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93440-28184-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 3RD PINION (21/23T)
39P-17131-00-00
|
$203.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-25007-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, 6TH PINION (24T)
39P-17161-00-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, 2ND PINION (16T)
39P-17121-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOUSING, BEARING 1
5VY-15163-00-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93306-20652-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, CLAW
90214-25004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, CLAW
90214-25003-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93306-27209-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE
5VY-17446-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
90110-06164-00
Superseded by 90110-06163-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
DRIVE AXLE ASSY
4C8-17402-00-00
|
$664.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING
93305-20605-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR, DISTANCE
5VY-17442-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-31003-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, 2ND WHEEL (33T)
39P-17221-00-00
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
90209-28008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP
93440-31187-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GEAR, 6TH WHEEL (29T)
39P-17261-00-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-28004-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
GEAR, 4TH WHEEL (35T)
39P-17241-00-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, CLAW
90214-29002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, CLAW
90214-28002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
GEAR, 3RD WHEEL (37T)
5VY-17231-00-00
|
$131.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
GEAR, 5TH WHEEL (27T)
39P-17251-00-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR
90387-25008-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
GEAR, 1 ST WHEEL (35T)
39P-17211-00-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
OIL SEAL
93102-40330-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
CIRCLIP
93440-62032-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
SPROCKET, DRIVE (16T)
5PS-17460-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
90201-22015-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT
90179-22019-00
Superseded by 90179-22018-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, PLATE
90201-257H0-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
BEARING
93306-205A2-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
CIRCLIP
93440-52009-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
