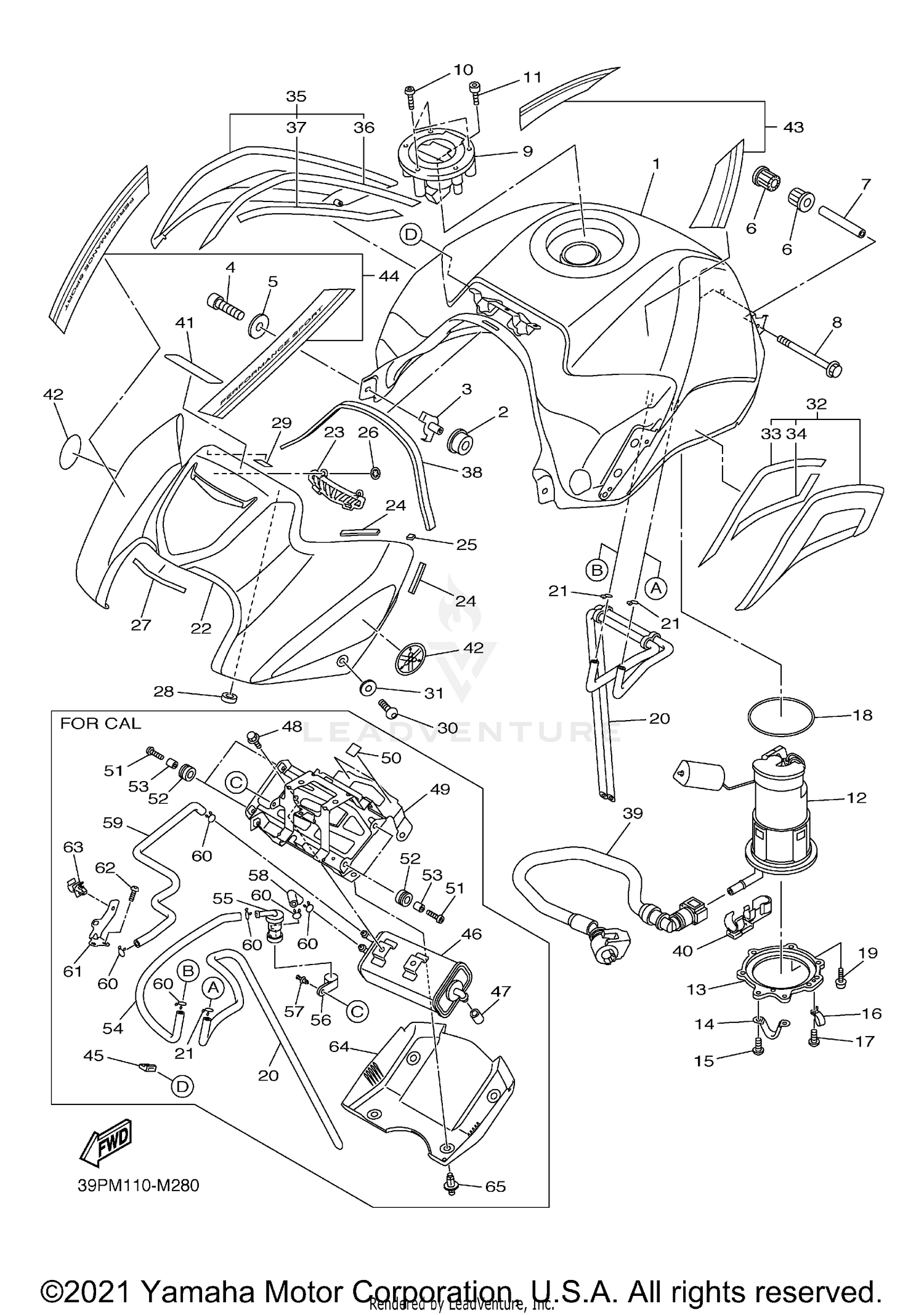

Fuel Tank Diagram

Item MSRP Qty
#1 FUEL TANK COMP.
39P-24110-00-P4
Superseded by 39P-24110-01-P4
 $569.99
Unavailable
#2 DAMPER, LOCATING 1
5VY-24181-00-00
 $7.49
Available to order.
Add to View Price
#3 COLLAR
2D1-2412G-00-00
 $24.99
Available to order.
Add to View Price
#4 BOLT, HEXAGON SOCKET HEAD
91312-06016-00
 $5.49
Available to order.
Add to View Price
#5 WASHER, PLATE
90201-06086-00
 $6.49
Available to order.
Add to View Price
#6 DAMPER, LOCATING 3
5SL-24183-00-00
 $7.49
Available to order.
Add to View Price
#7 COLLAR
90387-06055-00
 $4.60
Available to order.
Add to View Price
#8 BOLT, FLANGE
95022-06090-00
 $2.20
Available to order.
Add to View Price
#9 CAP ASSY
39P-24602-10-00
 $245.99
Available to order.
Add to View Price
#10 BOLT, HEXAGON SOCKET HEAD
90110-05112-00
 $8.49
Available to order.
Add to View Price
#11 BOLT, HEXAGON SOCKET HEAD
91312-05010-00
 $5.49
Available to order.
Add to View Price
#12 FUEL PUMP COMP.
39P-13907-00-00
Superseded by 39P-13907-03-00
 $468.99
Unavailable
#13 BRACKET, FUEL PUMP
39P-24491-00-00
 $49.99
Available to order.
Add to View Price
#14 BRACKET, FUEL TANK 2
2D1-24192-00-00
 $11.49
Available to order.
Add to View Price
#15 SCREW, BIND
98902-05008-00
 $1.60
Available to order.
Add to View Price
#16 CLAMP
90461-10010-00
 $6.49
Available to order.
Add to View Price
#17 SCREW, BIND
90154-05035-00
Superseded by 98902-05008-00
 $1.60
Unavailable
#18 O-RING
19B-24486-01-00
 $41.99
Available to order.
Add to View Price
#19 BOLT, HEXAGON SOCKET HEAD
90110-05028-00
 $7.49
Available to order.
Add to View Price
#20 PIPE 7
39P-24317-00-00
 $55.99
Available to order.
Add to View Price
#20 PIPE 5
39P-24315-00-00
 $22.99
Available to order.
Add to View Price
#21 CLIP
90467-09006-00
Superseded by 90467-090A2-00
 $4.15
Available to order.
Add to View Price
#21 CLIP
90467-09006-00
Superseded by 90467-090A2-00
 $4.15
Unavailable
#22 COVER, TOP
39P-2171A-10-P5
 $307.99
Available to order.
Add to View Price
#23 COVER, TANK
39P-241B1-00-00
 $13.49
Available to order.
Add to View Price
#24 DAMPER 3
4XV-2834E-00-00
 $4.30
Available to order.
Add to View Price
#25 DAMPER, LOCATING 1
14B-24181-00-00
 $7.49
Available to order.
Add to View Price
#26 NUT, SPRING
90183-05M02-00
 $0.30
Available to order.
Add to View Price
#27 SEAL
39P-28307-00-00
 $5.49
Available to order.
Add to View Price
#28 DAMPER
4FM-28372-00-00
 $6.49
Available to order.
Add to View Price
#29 DAMPER, RUBBER 1
4RR-21485-00-00
 $6.49
Available to order.
Add to View Price
#30 BOLT, HEX. SOCKET BUTTON
90111-05019-00
 $7.49
Available to order.
Add to View Price
#31 WASHER, PLATE
90202-05224-00
 $6.49
Available to order.
Add to View Price
#32 TANK SIDE COVER ASSY 1
39P-24106-00-00
 $39.99
Available to order.
Add to View Price
#33 SEAL 3
39P-241A3-00-00
 $15.49
Available to order.
Add to View Price
#34 SEAL 5
39P-241A5-00-00
 $16.99
Available to order.
Add to View Price
#35 TANK SIDE COVER ASSY 2
39P-24108-00-00
 $39.99
Available to order.
Add to View Price
#36 SEAL 4
39P-241A4-00-00
 $15.49
Available to order.
Add to View Price
#37 SEAL 6
39P-241A6-00-00
 $10.49
Available to order.
Add to View Price
#38 DAMPER, PLATE 5
2D1-2414P-00-00
 $9.49
Available to order.
Add to View Price
#39 PIPE, FUEL 1
39P-13971-00-00
 $141.99
Available to order.
Add to View Price
#40 CLAMP
90464-16005-00
 $11.49
Available to order.
Add to View Price
#41 LABEL, CAUTION
5GK-2118K-00-00
 $6.49
Available to order.
Add to View Price
#42 EMBLEM
5SL-2413B-00-00
 $49.99
Available to order.
Add to View Price
#43 GRAPHIC SET
39P-24240-20-00
 $39.99
Available to order.
Add to View Price
#44 GRAPHIC SET 1
42P-24230-00-00
 $67.99
Available to order.
Add to View Price
#45 DAMPER, SIDE COVER
5PW-2411J-01-00
 $7.49
Available to order.
Add to View Price
#46 CANISTER ASSY
39P-24170-00-00
 $252.99
Available to order.
Add to View Price
#47 HOSE (L70)
90445-11418-00
Superseded by 90445-112E0-00
 $7.49
Available to order.
Add to View Price
#48 BOLT, FLANGE
95802-06010-00
Superseded by 95812-06010-00
 $2.80
Available to order.
Add to View Price
#49 BRACKET, CANISTOR
39P-2419F-00-00
 $575.99
Available to order.
Add to View Price
#50 DAMPER 2
5YU-21639-00-00
 $2.25
Available to order.
Add to View Price
#51 BOLT, BUTTON HEAD
92012-06020-00
 $7.49
Available to order.
Add to View Price
#52 GROMMET
90480-14030-00
 $6.49
Available to order.
Add to View Price
#53 COLLAR
90387-065L7-00
Superseded by 90387-06026-00
 $7.49
Available to order.
Add to View Price
#54 PIPE 3
39P-24313-00-00
 $39.99
Available to order.
Add to View Price
#55 ROLL OVER VALVE ASSY
2C0-24180-00-00
 $86.99
Available to order.
Add to View Price
#56 CLAMP
90461-15139-00
Superseded by 90464-15014-00
 $3.10
Available to order.
Add to View Price
#57 RIVET
90269-05005-00
 $3.25
Available to order.
Add to View Price
#58 PIPE 4
39P-24314-00-00
 $11.49
Available to order.
Add to View Price
#59 PIPE
39P-1444J-00-00
 $40.99
Available to order.
Add to View Price
#60 CLIP
90467-09006-00
Superseded by 90467-090A2-00
 $4.15
Unavailable
#61 STAY
39P-24216-00-00
 $31.99
Available to order.
Add to View Price
#62 BOLT, BUTTON HEAD
92012-06016-00
 $7.49
Available to order.
Add to View Price
#63 CLAMP
90464-10125-00
Superseded by 90464-10M32-00
 $4.15
Available to order.
Add to View Price
#64 COVER
5D0-2172W-00-00
 $49.99
Available to order.
Add to View Price
#65 RIVET
90269-07077-00
 $7.49
Available to order.
Add to View Price
