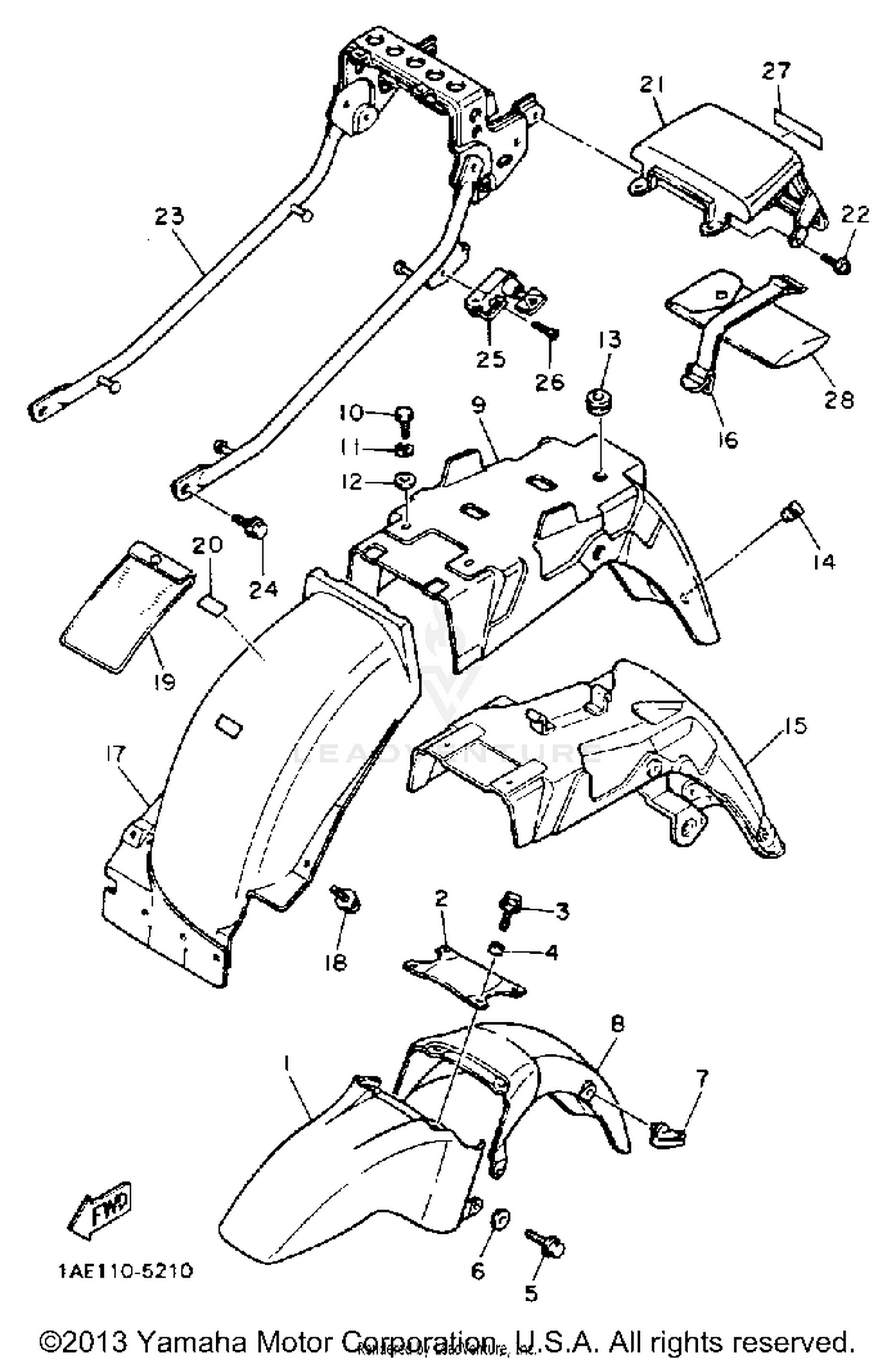

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
1AE-21511-00-AJ
|
$190.99 | ||
|
Unavailable |
|||
|
#2
BRACKET, FENDER
1AE-21512-00-00
|
$56.99 | ||
|
Unavailable |
|||
|
#3
BOLT, FLG.(SMALL HEAD)
95023-06020-00
Superseded by 95024-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-06022-00
Superseded by 90387-06106-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95026-06020-00
Superseded by 95027-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-062A8-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER, CABLE
1A8-21518-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FENDER, FRONT 2
1AE-21556-00-AJ
|
$190.99 | ||
|
Unavailable |
|||
|
#9
FENDER, REAR
1FN-21611-00-00
|
$124.99 | ||
|
Unavailable |
|||
|
#10
BOLT
97016-06016-00
Superseded by 97017-06016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-12067-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG
4G0-21639-00-00
Superseded by 90338-07018-00
|
$6.99 | ||
|
Unavailable |
|||
|
#15
REINFORCEMENT
1AE-21670-00-00
|
$155.99 | ||
|
Unavailable |
|||
|
#16
BAND, BATTERY
120-82131-00-00
Superseded by 7H3-82131-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
MUD GUARD
1AE-21620-00-00
|
$107.99 | ||
|
Unavailable |
|||
|
#18
BOLT, WITH WASHER
90119-06095-00
Superseded by 90119-06108-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
POUCH
4K5-28186-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOOK
4K5-2814E-10-00
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, REAR FENDER
1AE-21651-00-AJ
|
$140.99 | ||
|
Unavailable |
|||
|
#22
SCREW, WITH WASHER
90159-06042-00
Superseded by 90159-06013-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
REAR STAY CMPLT
1AE-21640-00-00
|
$131.99 | ||
|
Unavailable |
|||
|
#24
BOLT,FLANGE (JN5)
95816-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
HELMET HANGER ASSY
26H-21308-00-00
Superseded by 26H-21308-01-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, COUNTERSUNK
90149-06150-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#27
EMBLEM, YAMAHA
1FM-2163G-00-00
Superseded by 99241-00080-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
TOOL KIT
1UF-28100-00-00
|
$160.99 | ||
|
Unavailable |
|||
