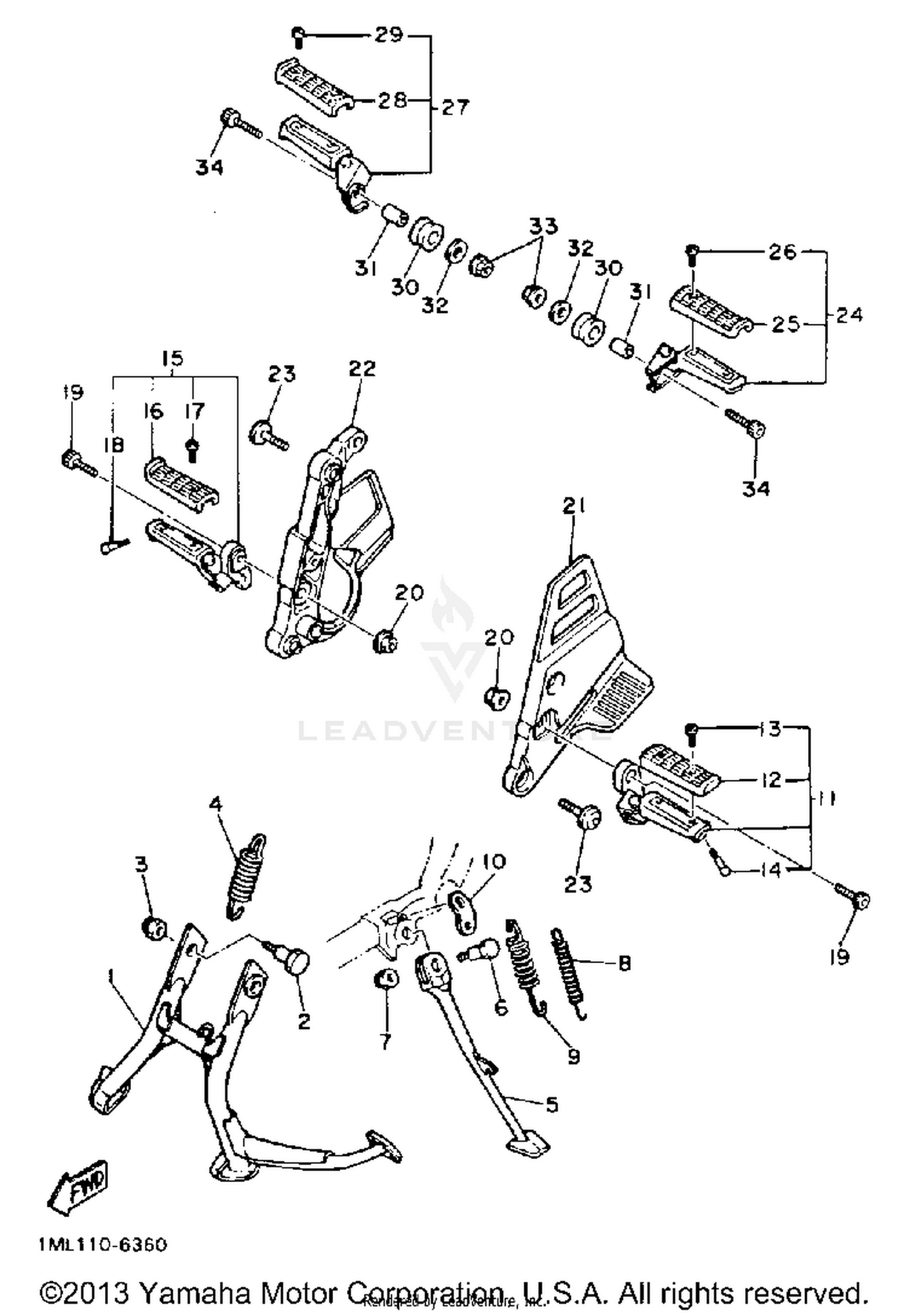

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, MAIN (1AE-27111-00-R4)
1AE-27111-01-R4
|
$242.99 | ||
|
Unavailable |
|||
|
#2
BOLT
90109-100E6-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SELF-LOCKING
90185-10091-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TENSION
90506-45385-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAND, SIDE
1AE-27311-01-00
Superseded by 4AS-27311-01-00
|
$156.99 | ||
|
Unavailable |
|||
|
#6
BOLT
90109-106A8-00
|
$8.49 | ||
|
Unavailable |
|||
|
#7
NUT, SELF-LOCKING
90185-10037-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, TENSION
90506-18224-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, TENSION
90506-26225-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
LINK, SIDE STAND
3Y3-27315-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
FRT FOOTREST ASSEMBLY L
1AE-27410-00-00
|
$113.99 | ||
|
Unavailable |
|||
|
#12
COVER, FOOTREST
2GH-27413-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
90157-05079-00
Superseded by 98507-05014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
90109-082A4-00
Superseded by 90109-08224-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
FRT FOOTREST ASSEMBLY R
1AE-27420-00-00
|
$95.99 | ||
|
Unavailable |
|||
|
#16
COVER, FOOTREST
2GH-27413-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN HEAD
90157-05079-00
Superseded by 98507-05014-00
|
$7.99 | ||
|
Unavailable |
|||
|
#18
BOLT
90109-082A4-00
Superseded by 90109-08224-00
|
$2.50 | ||
|
Unavailable |
|||
|
#19
BOLT
91316-10030-00
Superseded by 91317-10030-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRACKET 2
1AE-W2748-00-00
|
$175.99 | ||
|
Unavailable |
|||
|
#22
BRACKET 3
1AE-W2749-00-00
|
$181.99 | ||
|
Unavailable |
|||
|
#23
SCREW
90149-08222-00
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#24
RR FOOTREST ASSEMBLY 1
1AE-27430-00-00
|
$99.99 | ||
|
Unavailable |
|||
|
#25
COVER, FOOTREST
2GH-27413-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#26
SCREW, PAN HEAD
90157-05079-00
Superseded by 98507-05014-00
|
$7.99 | ||
|
Unavailable |
|||
|
#27
RR FOOTREST ASSEMBLY 2
1AE-27440-00-00
|
$99.99 | ||
|
Unavailable |
|||
|
#28
COVER, FOOTREST
2GH-27413-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#29
SCREW, PAN HEAD
90157-05079-00
Superseded by 98507-05014-00
|
$7.99 | ||
|
Unavailable |
|||
|
#30
DAMPER, FOOTREST
2H7-27414-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR
90387-10636-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
90201-10669-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.21 | ||
|
Unavailable |
|||
|
#34
BOLT
91316-10050-00
Superseded by 91317-10050-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
