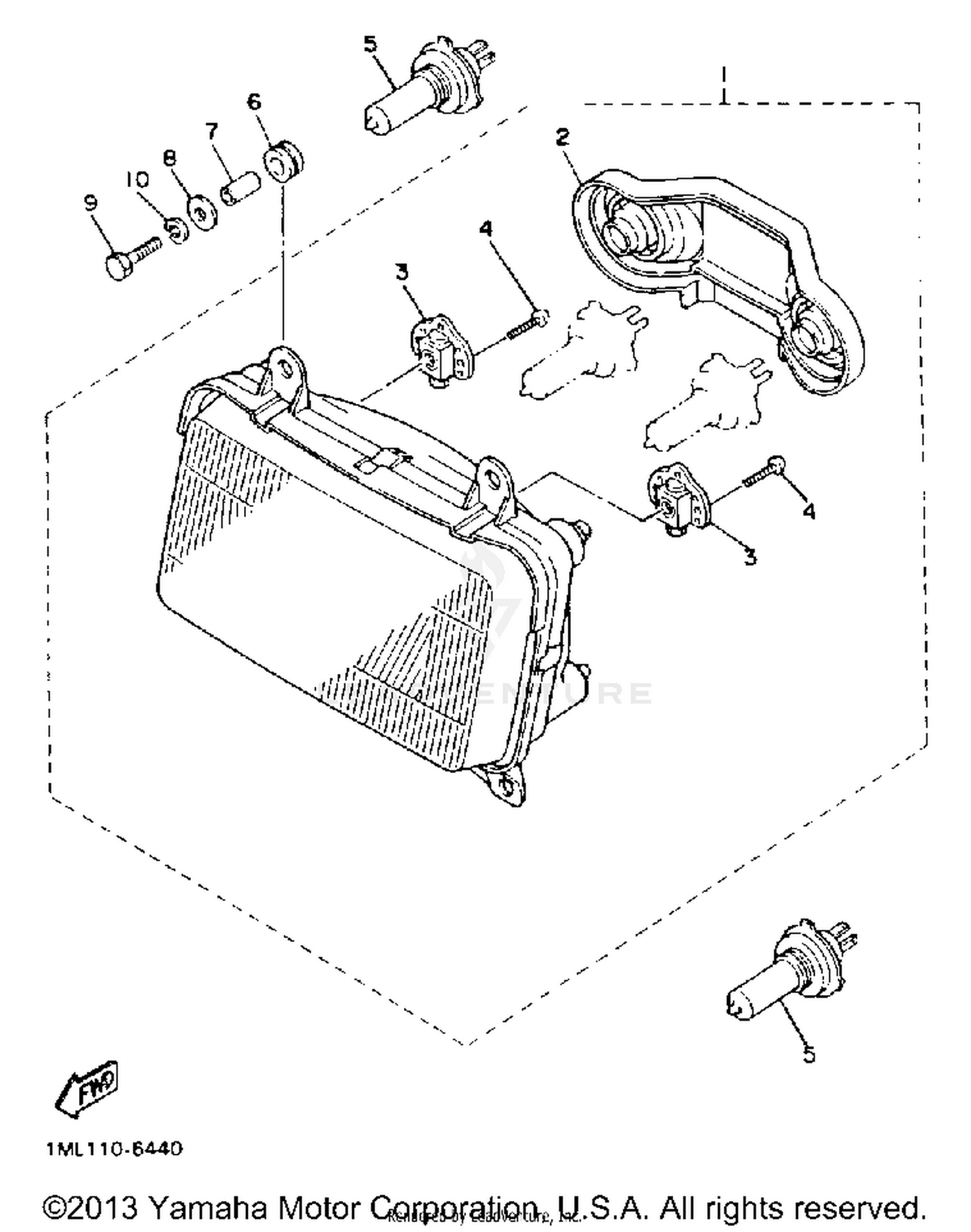

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT UNIT ASSEMBLY
1LJ-84303-A0-00
|
$339.99 | ||
|
Unavailable |
|||
|
#2
COVER, SOCKET
1FM-84397-00-00
|
$34.82 | ||
|
Unavailable |
|||
|
#3
GEAR UNIT ASSEMBLY
1AE-8430M-00-00
|
$5.44 | ||
|
Unavailable |
|||
|
#4
SCREW,TAPPING(4HP)
97706-40616-00
Superseded by 97707-40616-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
BULB, HEADLIGHT
1ML-84314-00-XX
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET
90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-07598-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
97016-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
