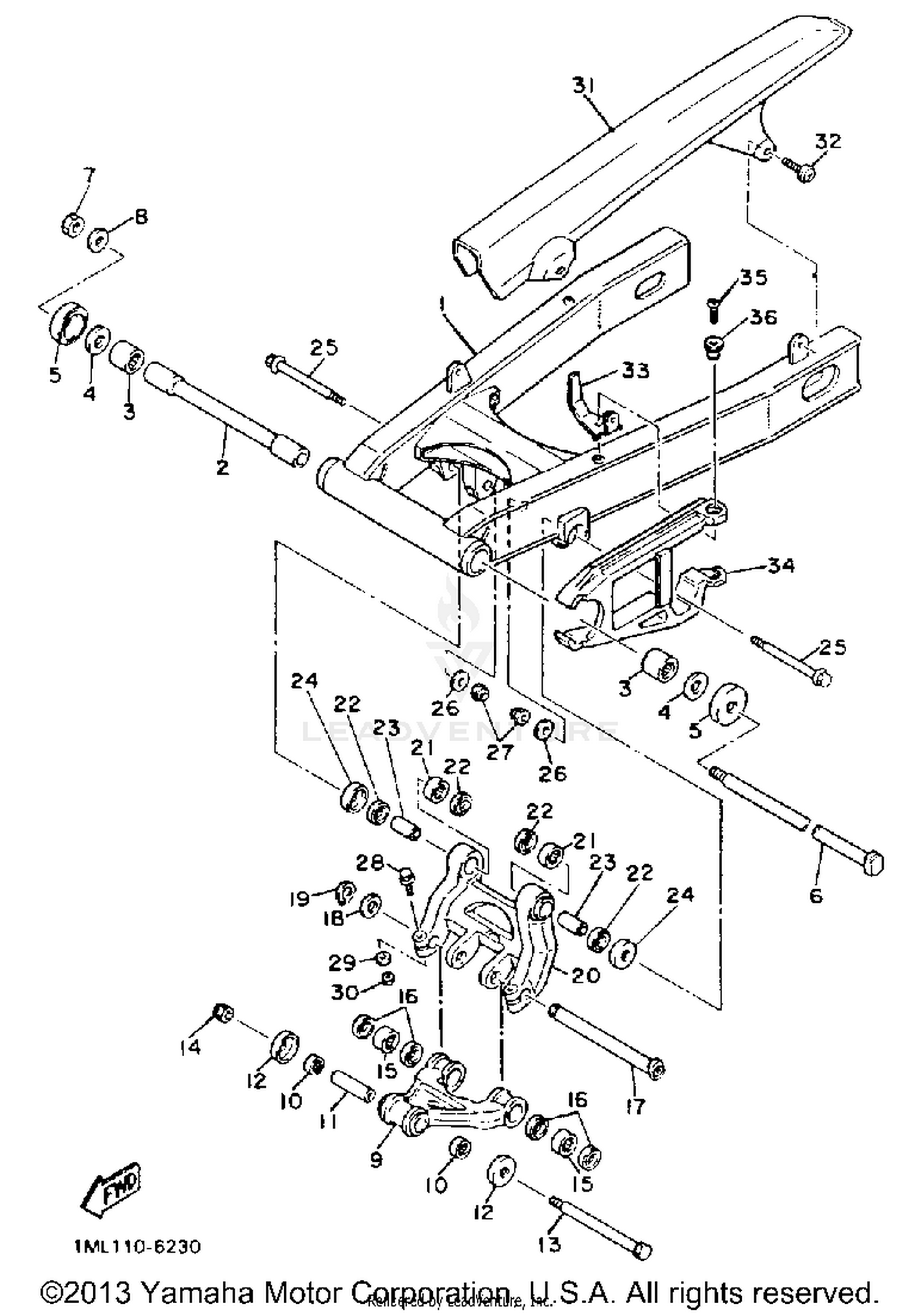

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
1AE-22110-00-00
|
$544.99 | ||
|
Unavailable |
|||
|
#2
BUSH
36Y-22184-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93317-42550-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIM
36Y-22127-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, THRUST 1
36Y-22128-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, PIVOT
1AE-22141-00-00
Superseded by 1AE-22141-01-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SELF-LOCKING
90185-14070-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-142M6-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
UNAVAILABLE IN PRICE BOOK
1A-E2217-A0-00
|
|||
|
Unavailable |
|||
|
#10
BEARING
93315-21813-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-123M4-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, THRUST 2
36Y-22129-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90101-12605-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, U
95611-12100-00
Superseded by 95617-12100-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
93315-31841-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL, SWO-TYPE
93110-18017-00
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHAFT 1
1AE-22121-00-00
|
$70.99 | ||
|
Unavailable |
|||
|
#18
WASHER, plate
90201-187H4-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP
99009-18400-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
ARM 1
1AE-2217M-00-00
|
$169.99 | ||
|
Unavailable |
|||
|
#21
BEARING
93315-22045-00
Superseded by 93315-32057-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL
93109-20029-00
Superseded by 93109-20076-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
90387-123M3-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, THRUST 2
1AE-22129-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE
90105-12309-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-126A7-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, U
95611-12100-00
Superseded by 95617-12100-00
|
$4.16 | ||
|
Unavailable |
|||
|
#28
BOLT, FLANGE
95811-06045-00
Superseded by 95817-06045-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-061A5-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, U
95611-06100-00
Superseded by 95617-06100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CASE, CHAIN
29L-22311-00-00
Superseded by 29L-22311-01-00
|
$50.99 | ||
|
Unavailable |
|||
|
#32
SCREW, WITH WASHER
90159-06084-00
Superseded by 90159-06082-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
STAY, CHAIN CASE 1
1AE-22321-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#34
SEAL, GUARD
1LJ-22151-00-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, BIND
98902-06025-00
Superseded by 98907-06025-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
COLLAR
90387-062M9-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
