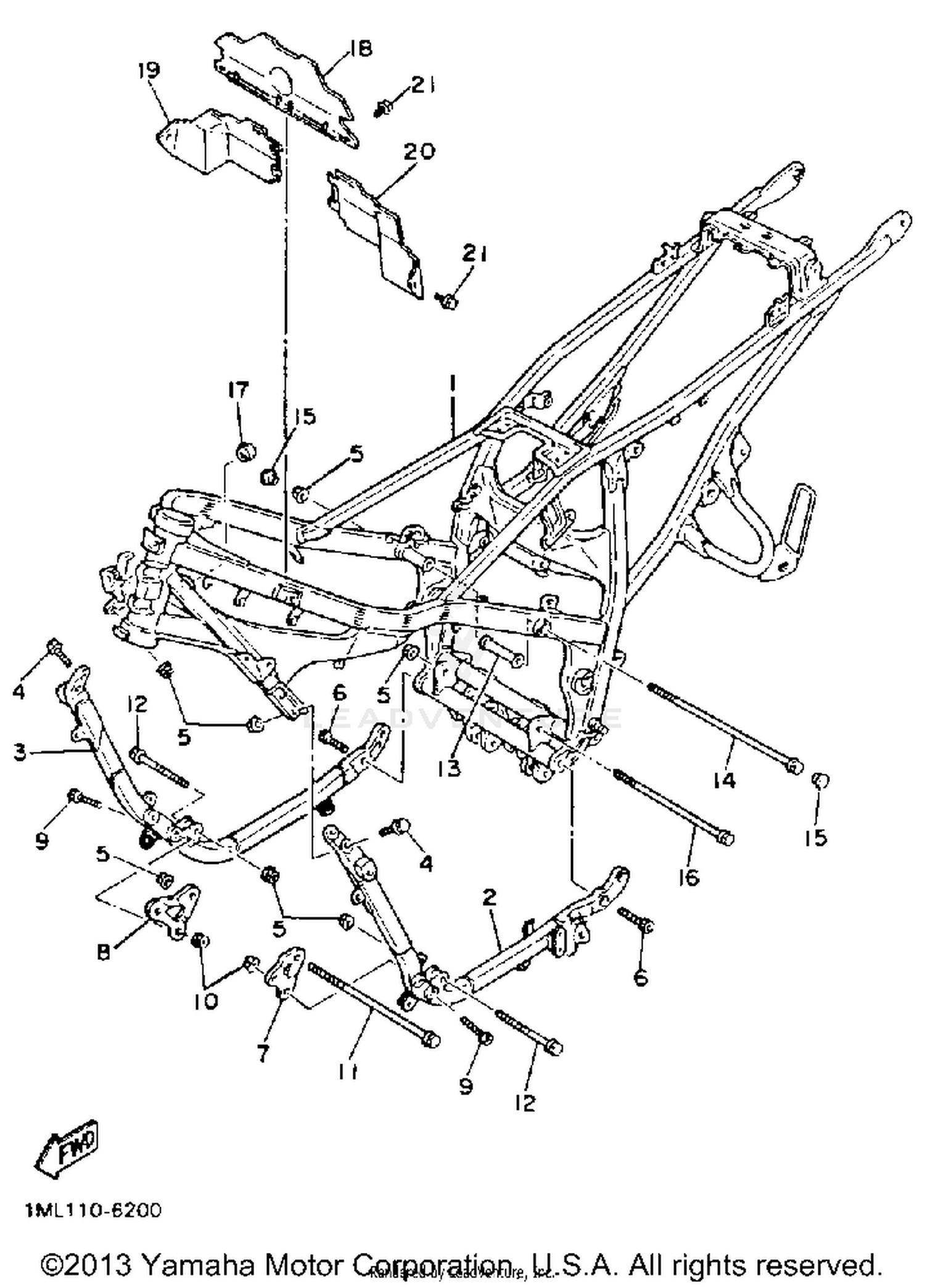

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
1LJ-21110-00-MA
|
$1,316.99 | ||
|
Unavailable |
|||
|
#2
TUBE, DOWN
1ML-21140-00-MA
|
$252.99 | ||
|
Unavailable |
|||
|
#3
DOWN TUBE COMP.2
1ML-21150-00-MA
|
$228.99 | ||
|
Unavailable |
|||
|
#4
BOLT, FLANGE
95811-10040-00
Superseded by 95814-10040-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
90179-10247-00
Superseded by 90179-10658-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEXAGON SOCKET HEAD
91311-08020-00
Superseded by 91314-08020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, ENGINE 2
1AE-21315-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, ENGINE 3
1AE-21316-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#9
BOLT, HEXAGON SOCKET HEAD
91311-08050-00
Superseded by 91314-08050-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, WASHER BASED
90105-10401-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
90105-10170-00
Superseded by 90105-10737-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER
1AE-21459-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, WASHER BASED
90105-10056-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG
90338-23172-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-10042-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GROMMET
90480-18171-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER 1
1AE-1246A-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER 2
2KW-1246E-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#20
COVER 3
1AE-1246F-00-00
Superseded by 2KW-1246F-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE
95816-06012-00
Superseded by 95817-06012-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
