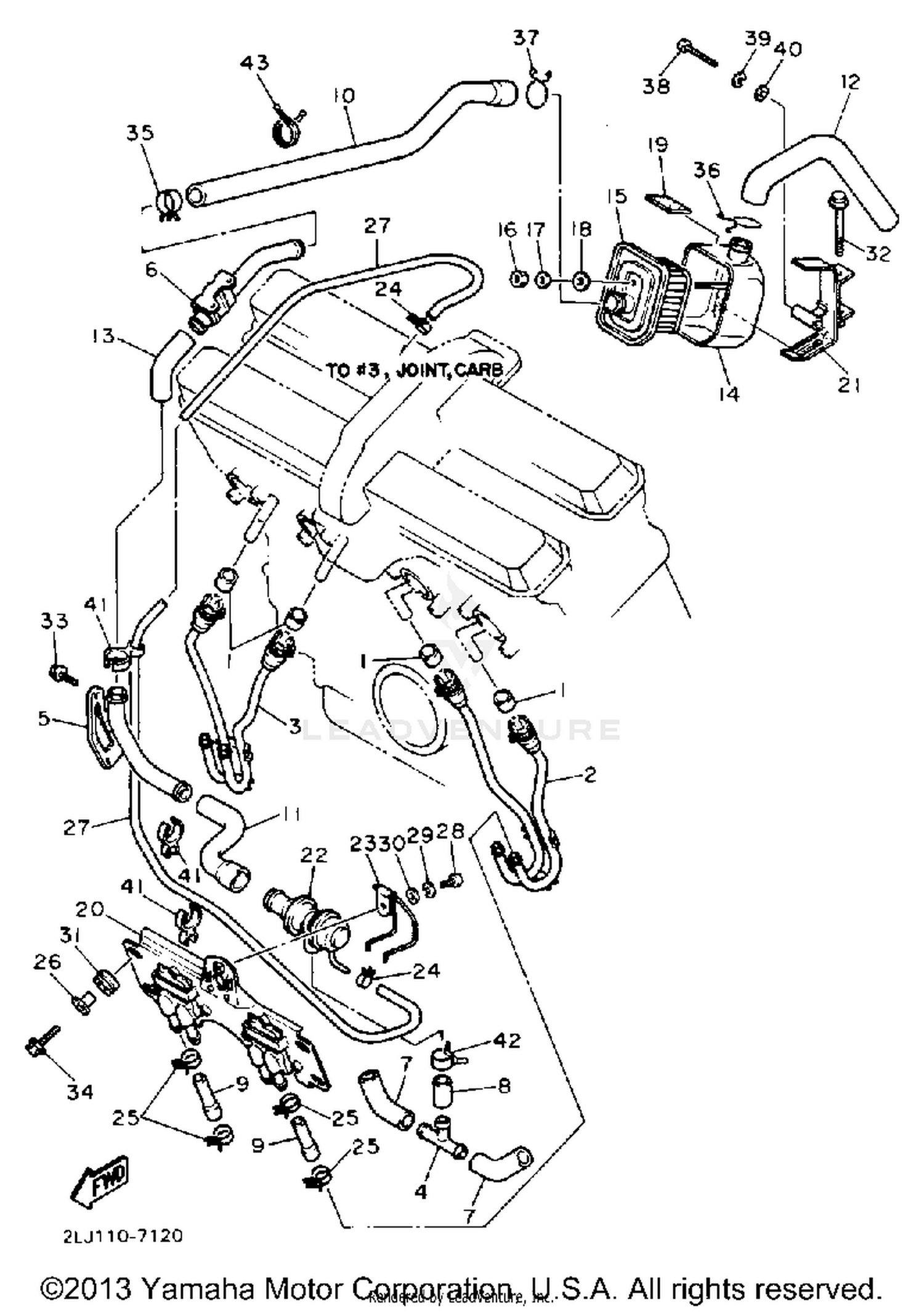

Air Induction System California Model Only Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, MUFFLER
42H-14714-00-00
Superseded by 42H-14714-10-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
UNAVAILABLE IN PRICE BOOK
2L-J1487-10-00
|
|||
|
Unavailable |
|||
|
#3
PIPE 2
2LJ-14872-00-00
|
$77.43 | ||
|
Unavailable |
|||
|
#4
PIPE 4
2L-J1487-40-00
|
|||
|
Unavailable |
|||
|
#5
UNAVAILABLE IN PRICE BOOK
2L-J1487-50-00
|
|||
|
Unavailable |
|||
|
#6
UNAVAILABLE IN PRICE BOOK
2L-J1487-60-00
|
|||
|
Unavailable |
|||
|
#7
HOSE, BEND 1
2L-J1488-10-00
|
|||
|
Unavailable |
|||
|
#8
HOSE, BEND 2
2LJ-14882-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#9
HOSE, BEND 3
2L-J1488-30-00
|
|||
|
Unavailable |
|||
|
#10
UNAVAILABLE IN PRICE BOOK
2L-J1488-40-00
|
|||
|
Unavailable |
|||
|
#11
UNAVAILABLE IN PRICE BOOK
2L-J1488-50-00
|
|||
|
Unavailable |
|||
|
#12
UNAVAILABLE IN PRICE BOOK
2L-J1488-60-00
|
|||
|
Unavailable |
|||
|
#13
UNAVAILABLE IN PRICE BOOK
2L-J1414-80-00
|
|||
|
Unavailable |
|||
|
#14
CASE, AIR CLEANER
42H-14857-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, CASE
42H-14858-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#16
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90202-05057-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER
5H0-8235Y-M0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
UNAVAILABLE IN PRICE BOOK
2L-J1480-80-00
|
|||
|
Unavailable |
|||
|
#21
UNAVAILABLE IN PRICE BOOK
2L-J1486-80-00
|
|||
|
Unavailable |
|||
|
#22
AIR CUT VALVE ASSEMBLY
1TA-14840-00-00
|
$300.99 | ||
|
Unavailable |
|||
|
#23
CLAMP
90462-20188-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP
90467-08092-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP
90468-08104-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOSE
90445-094E8-00
|
$3.27 | ||
|
Unavailable |
|||
|
#28
SCREW,PAN HEAD
98506-06016-00
Superseded by 98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#31
GROMMET
90480-14229-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE
95816-06055-00
Superseded by 95817-06055-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE
95026-06012-00
Superseded by 95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE
95026-06020-00
Superseded by 95027-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLIP
90467-20085-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLIP
90467-22080-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLIP
90467-26111-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#41
UNAVAILABLE IN PRICE BOOK
90-46419-11-00
|
|||
|
Unavailable |
|||
|
#42
CLIP
90467-17089-00
Superseded by 90467-17128-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLAMP
90464-30040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
