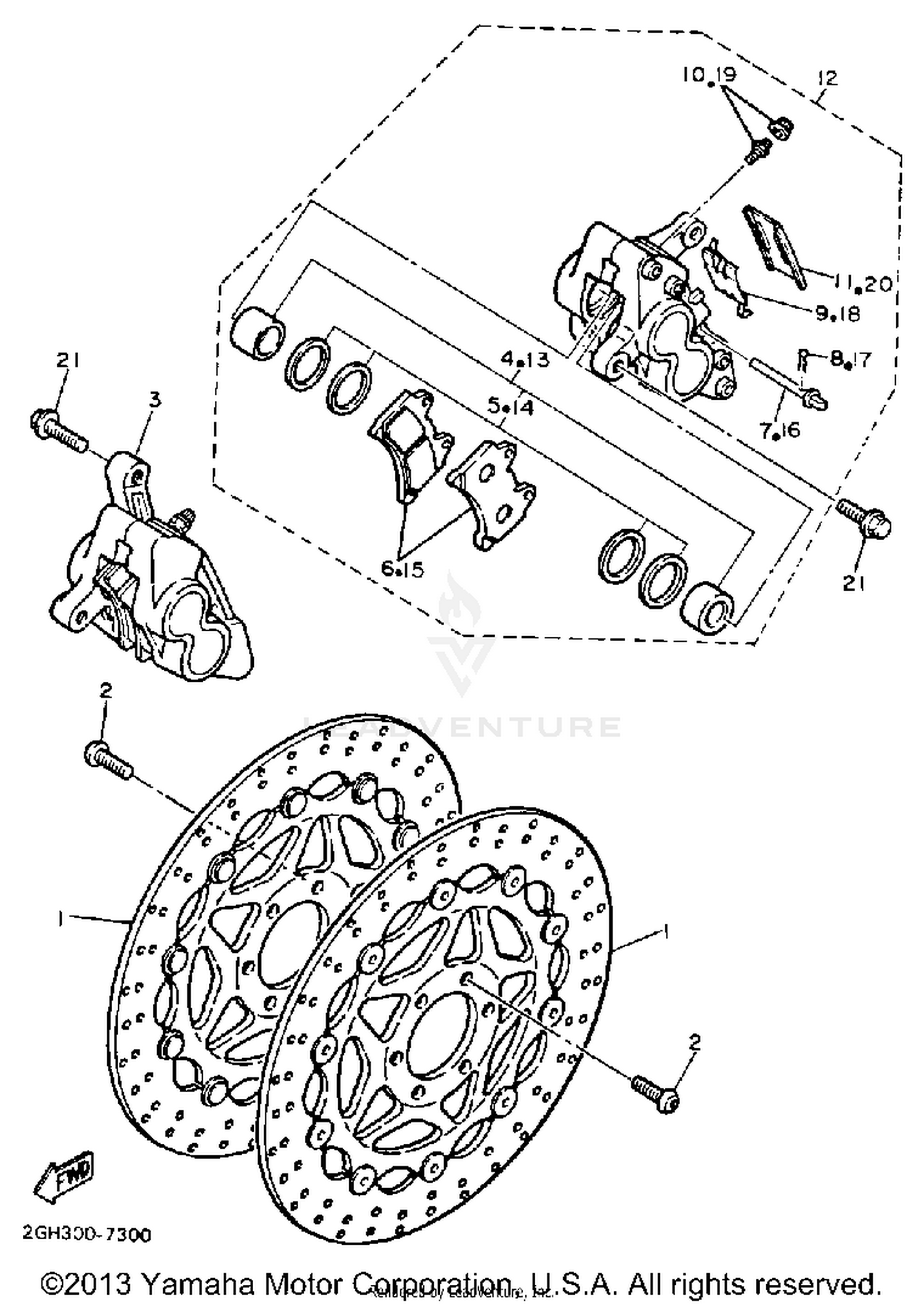

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC BRAKE ASSY
2GH-25830-00-00
Superseded by 4KG-2581T-10-00
|
$388.99 | ||
|
Unavailable |
|||
|
#2
BOLT,HEX. SOCKET BUT
90109-08718-00
Superseded by 90111-08084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSY (RIGHT)
2GH-25810-00-00
Superseded by 2GH-25810-02-00
|
$577.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON ASSY, CALIPER
1NL-W0057-00-00
|
$210.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
1NL-W0047-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRAKE PAD KIT
2GH-W0045-01-00
Superseded by 4KG-25805-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, PAD
3HE-25924-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP
3GM-25925-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SUPPORT, PAD
2GH-25919-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BLEED SCREW KIT
1J3-W0048-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, DUST
1KT-25836-00-00
Superseded by 1KT-25836-01-00
|
$17.49 | ||
|
Unavailable |
|||
|
#12
CALIPER ASSY (LEFT)
2GH-25810-10-00
Superseded by 2GH-25810-12-00
|
$577.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PISTON ASSY, CALIPER
1NL-W0057-00-00
|
$210.99 | ||
|
Unavailable |
|||
|
#14
CALIPER SEAL KIT
1NL-W0047-00-00
|
$69.99 | ||
|
Unavailable |
|||
|
#15
BRAKE PAD KIT
2GH-W0045-01-00
Superseded by 4KG-25805-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#16
PIN, PAD
3HE-25924-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#17
CLIP
3GM-25925-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#18
SUPPORT, PAD
2GH-25919-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#19
BLEED SCREW KIT
1J3-W0048-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#20
COVER, DUST
1KT-25836-00-00
Superseded by 1KT-25836-01-00
|
$17.49 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE
90105-10638-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
