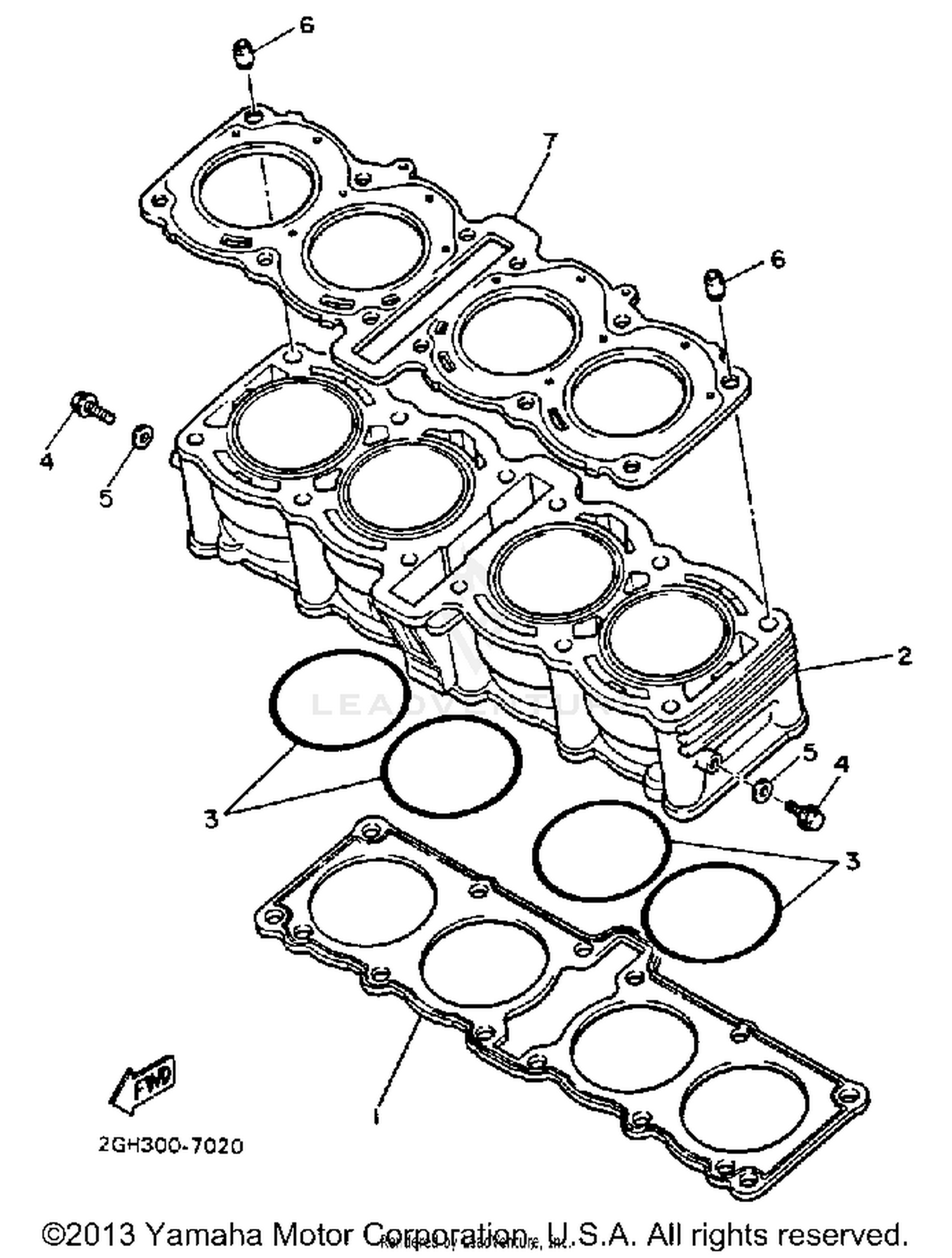

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, CYLINDER
3GM-11351-00-00
Superseded by 4SV-11351-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER
2GH-11310-00-00
|
$673.99 | ||
|
Unavailable |
|||
|
#3
O-RING
93210-77363-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95026-06012-00
Superseded by 95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL
91810-08016-00
Superseded by 93612-16254-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, CYLINDER HEAD 1
2GH-11181-01-00
|
$142.99 | ||
|
Unavailable |
|||
