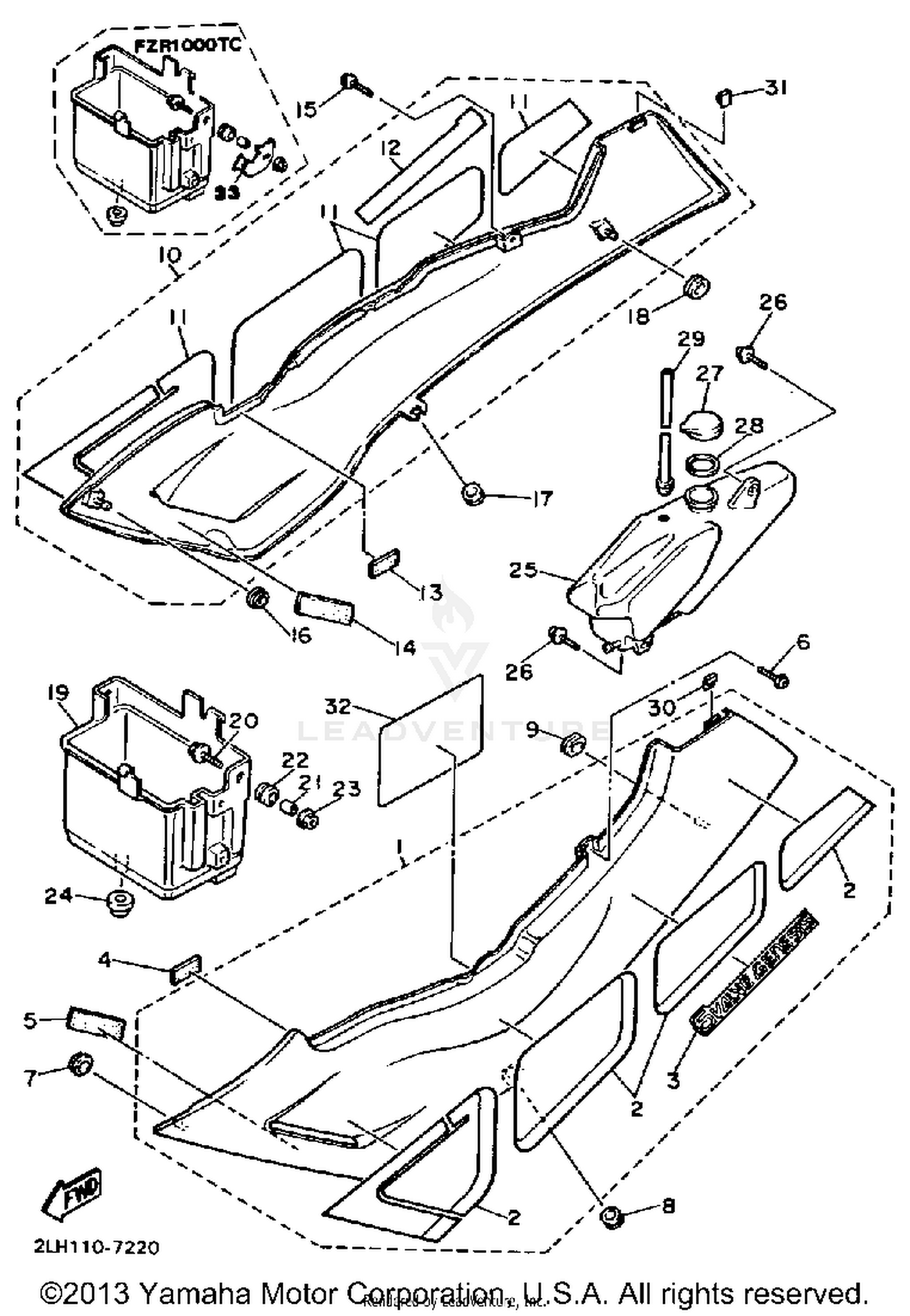

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SIDE COVER 1
2GH-W2175-00-GE
|
$242.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET 1
2GH-2173L-00-00
|
$121.99 | ||
|
Unavailable |
|||
|
#3
EMBLEM 1
2GH-21781-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#4
DAMPER
5G3-21747-00-00
|
$2.60 | ||
|
Unavailable |
|||
|
#5
DAMPER
1KH-21717-00-00
Superseded by 26H-21746-00-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, WITH WASHER
90159-06033-00
Superseded by 90159-06060-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET
90480-14074-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET
90480-12320-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
90480-22084-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SIDE COVER 3
2GH-W2173-00-GE
|
$289.99 | ||
|
Unavailable |
|||
|
#11
GRAPHIC SET 2
2GH-2174L-00-00
|
$121.99 | ||
|
Unavailable |
|||
|
#12
EMBLEM 1
2GH-21781-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#13
DAMPER
5G3-21747-00-00
|
$2.60 | ||
|
Unavailable |
|||
|
#14
DAMPER
1KH-21717-00-00
Superseded by 26H-21746-00-00
|
$2.35 | ||
|
Unavailable |
|||
|
#15
SCREW, WITH WASHER
90159-06033-00
Superseded by 90159-06060-00
|
$7.49 | ||
|
Unavailable |
|||
|
#16
GROMMET
90480-14074-00
|
$5.49 | ||
|
Unavailable |
|||
|
#17
GROMMET
90480-12320-00
|
$7.49 | ||
|
Unavailable |
|||
|
#18
GROMMET
90480-22084-00
|
$6.49 | ||
|
Unavailable |
|||
|
#19
BOX
2GH-21245-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#20
BOLT, WITH WASHER
90119-06097-00
Superseded by 90119-06172-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-060A7-00
Superseded by 90387-06113-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
GROMMET
90480-16233-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
GROMMET
90480-23192-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
TANK, RECOVERY
2GH-21871-00-00
|
$70.99 | ||
|
Unavailable |
|||
|
#26
SCREW, WITH WASHER
90159-06056-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CAP
4L0-21875-00-00
Superseded by 1AA-21815-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET
1AA-21874-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIPE, OVERFLOW
1KF-21816-00-00
Superseded by 4BH-21877-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SEAL 1
2GH-21732-00-00
|
$2.10 | ||
|
Unavailable |
|||
|
#31
SEAL 1
2GH-21732-00-00
|
$2.10 | ||
|
Unavailable |
|||
|
#32
PLATE, SPECIFICATON
2LJ-21687-70-00
|
$3.57 | ||
|
Unavailable |
|||
|
#
PLATE, SPEC
2LH-21683-70-00
|
$3.36 | ||
|
Unavailable |
|||
|
#33
BRACKET
2LJ-21158-00-00
|
$19.42 | ||
|
Unavailable |
|||
