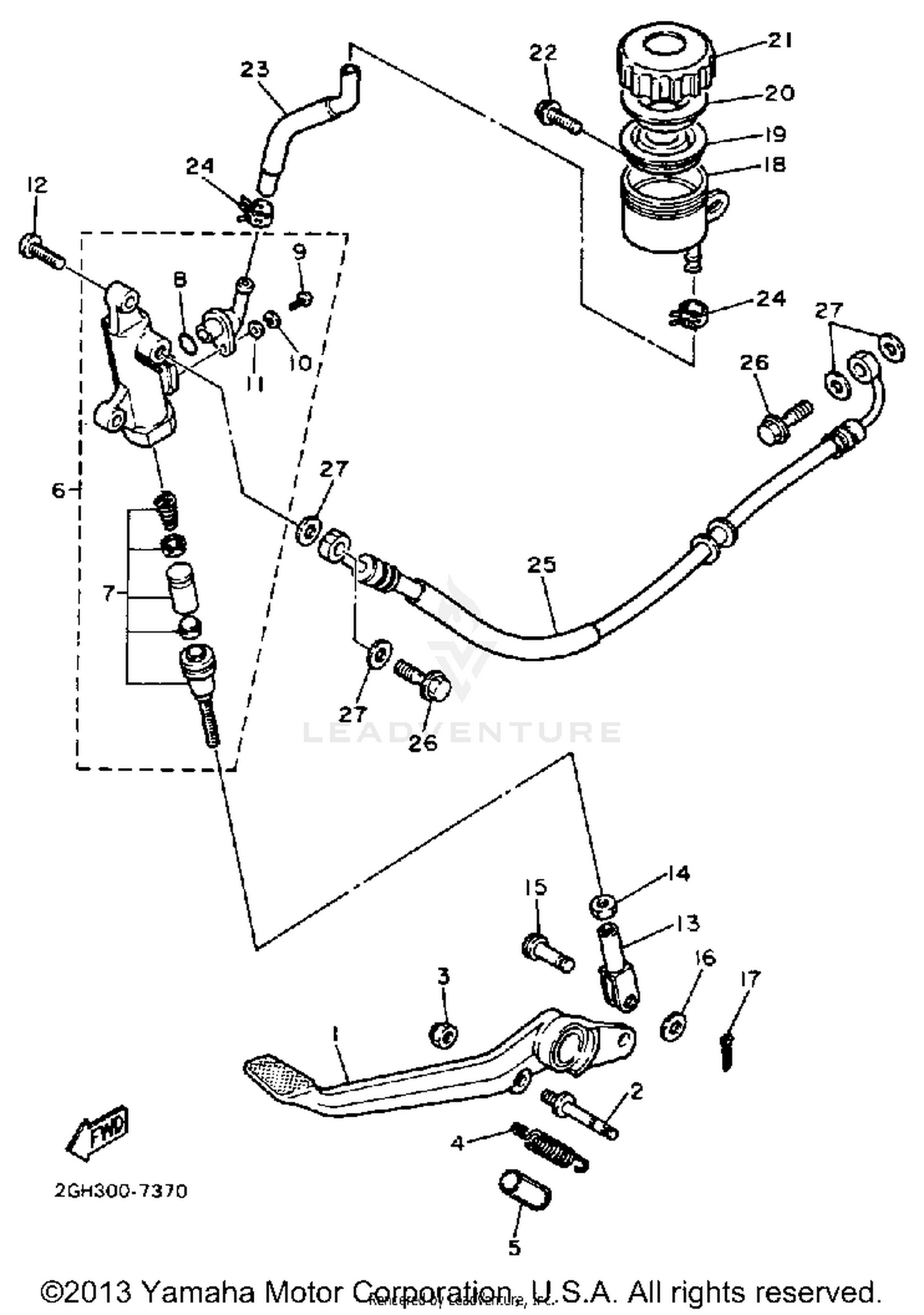

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
2GH-27211-00-00
|
$125.99 | ||
|
Unavailable |
|||
|
#2
PIN, PEDAL CRK
1KT-27813-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#3
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TORSION
90508-20737-00
|
$7.49 | ||
|
Unavailable |
|||
|
#5
HOSE
90446-17267-00
Superseded by 90446-17346-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
MSTR CYLINDER ASSEMBLYASSY
2GH-25850-50-00
|
$256.99 | ||
|
Unavailable |
|||
|
#7
CYLINDER KIT, MASTER
2GH-W0042-50-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
93210-15620-00
Superseded by 93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW,PANHEAD
98506-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92906-04100-00
Superseded by 92907-04100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
92906-04600-00
Superseded by 92907-04600-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, BUTTON HEAD
92016-08030-00
Superseded by 92017-08030-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
JOINT
31A-27222-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, CLEVIS
90240-08013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TANK, RESERVOIR
31A-25894-01-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
DIAPHRAGM, RESERVOIR
360-25854-00-00
Superseded by 360-25854-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BUSH, DIAPHRAGM
2GU-25855-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP, RESERVOIR
2KF-25852-50-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, WITH WASHER
90159-06085-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE, RESERVOIR
2GH-25895-00-00
|
$5.20 | ||
|
Unavailable |
|||
|
#24
CLIP
90467-14057-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE BRK 1
2GH-25872-50-00
Superseded by 99999-02673-00
|
$79.99 | ||
|
Unavailable |
|||
|
#26
BOLT, UNION
90401-10096-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
