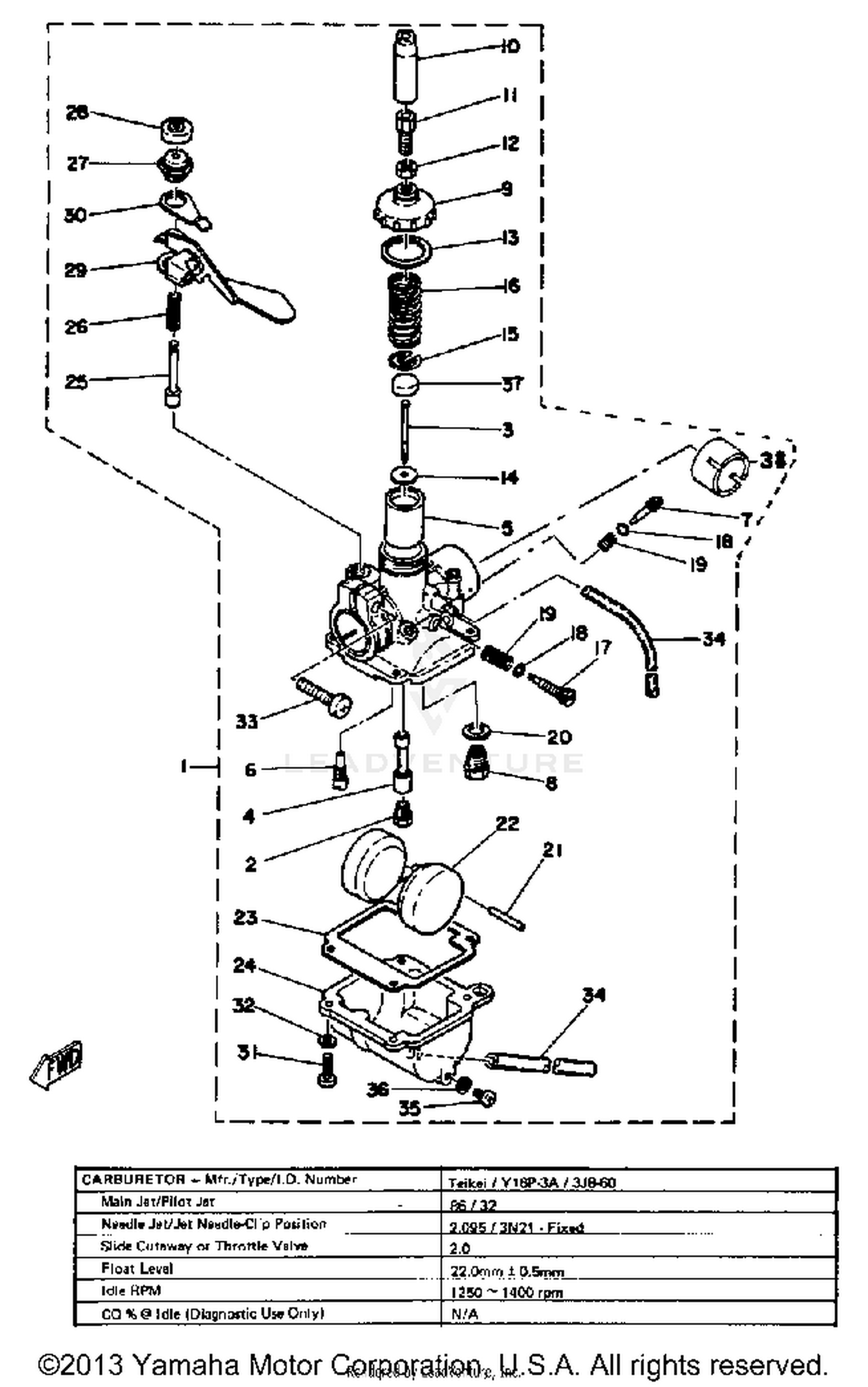

Carburetor Gt80g Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
3J8-14301-60-00
|
$116.99 | ||
|
Unavailable |
|||
|
#2
JET, MAIN #86
288-14343-43-00
|
$19.99 | ||
|
Unavailable |
|||
|
#3
NEEDLE
3J8-14336-00-00
|
$6.86 | ||
|
Unavailable |
|||
|
#4
NOZZLE, MAIN
3J8-14341-00-00
|
$12.72 | ||
|
Unavailable |
|||
|
#5
VALVE, THROTTLE 1
3J8-14312-20-00
|
$14.42 | ||
|
Unavailable |
|||
|
#6
JET, PILOT #32
3J8-14342-16-00
|
$9.28 | ||
|
Unavailable |
|||
|
#7
SCREW, AIR ADJUSTING
3J8-14323-00-00
|
$4.56 | ||
|
Unavailable |
|||
|
#8
NEEDLE VALVE ASSEMBLY
367-14390-20-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, MIXING CHAMBER
367-14168-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#10
CAP
367-14169-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#11
SCREW, CABLE ADJUSTING
288-14124-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#12
NUT, CABLE ADJUSTING
288-14161-00-00
Superseded by 85L-14161-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
367-14126-00-00
|
$3.65 | ||
|
Unavailable |
|||
|
#14
SUPPORTER, NEEDLE
3J8-14339-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#15
SEAT, SPRING
3J8-14136-00-00
|
$7.88 | ||
|
Unavailable |
|||
|
#16
SPRING, THRTL VALVE
367-14331-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#17
SCREW, THROTTLE
3J8-14321-00-00
|
$7.90 | ||
|
Unavailable |
|||
|
#18
O-RING
1E7-14147-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#19
SPRING, AIR ADJUSTING
288-14334-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#20
GASKET
367-14195-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, FLOAT
367-14386-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
FLOAT
367-14385-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
GSKT, FLOAT CHAMBER
4U1-14384-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BODY, FLOAT CHAMBER
3J8-14381-28-00
|
$21.56 | ||
|
Unavailable |
|||
|
#25
PLUNGER,STARTER
367-14371-00-00
Superseded by 29J-1410A-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#26
SPRING, PLUNGER
367-14335-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#27
PLUNGER,STARTER
367-14374-00-00
Superseded by 29J-1410A-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#28
COVER, PLUNGER CAP
367-14373-00-00
|
$0.99 | ||
|
Unavailable |
|||
|
#29
LEVER, STARTER
367-14375-01-00
|
$39.99 | ||
|
Unavailable |
|||
|
#30
STOPPER
367-14377-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#31
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIPE
367-14396-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, FLAT HEAD
3J8-14324-00-00
|
$3.75 | ||
|
Unavailable |
|||
|
#36
GASKET
6A1-14398-00-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#37
COVER, RECEIVE
3J8-14372-00-00
|
$3.16 | ||
|
Unavailable |
|||
|
#38
GASKET
2A3-14359-00-00
|
$36.99 | ||
|
Unavailable |
|||
