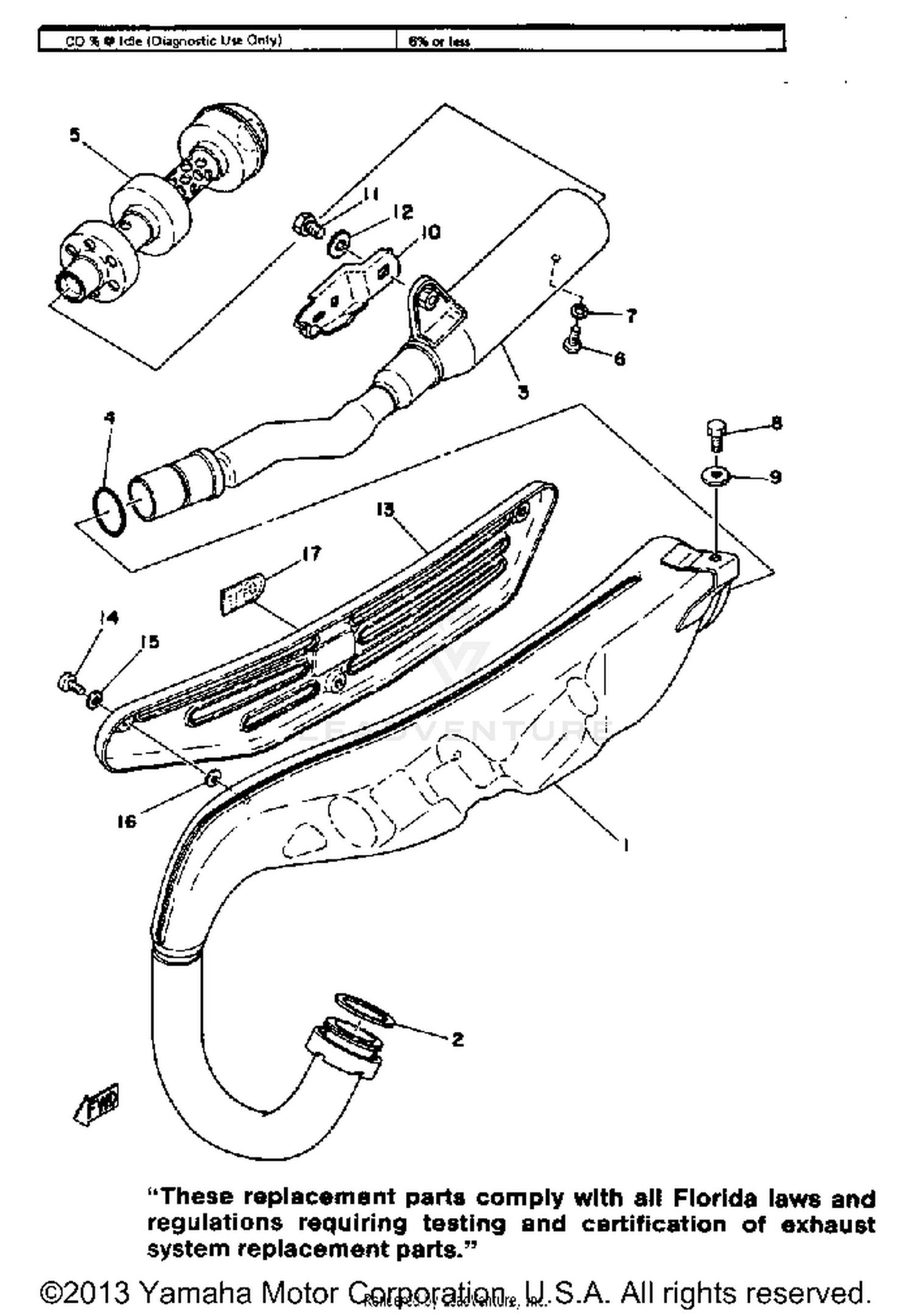

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY L
2F4-14610-00-00
|
$89.89 | ||
|
Unavailable |
|||
|
#
EXHAUST PIPE ASSEMBLY L
2F4-14610-10-00
|
$96.92 | ||
|
Unavailable |
|||
|
#
EXHAUST PIPE ASSEMBLY L
3J8-14610-00-00
|
$136.99 | ||
|
Unavailable |
|||
|
#2
GASKET, EXST PIPE
132-14613-00-00
Superseded by 3MT-14613-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SILENCER, EXHAUST (80E/F)
2F4-14753-00-00
|
$71.86 | ||
|
Unavailable |
|||
|
#
SILENCER, EXHAUST
3J8-14753-00-00
|
$65.10 | ||
|
Unavailable |
|||
|
#4
O-RING
93210-24235-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
O-RING
93210-27250-00
|
$8.99 | ||
|
Unavailable |
|||
|
#5
PIPE, OUTLET
2F4-14752-00-00
|
$40.46 | ||
|
Unavailable |
|||
|
#6
SCREW, PAN HEAD (92503-06010-00
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAY, MUFFLER 1
2A4-14771-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#11
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.05 | ||
|
Unavailable |
|||
|
#12
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Unavailable |
|||
|
#
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Unavailable |
|||
|
#13
PROTECTOR, MUFF 1
2A4-14718-00-20
|
$19.49 | ||
|
Unavailable |
|||
|
#
PROTECTOR, MUFF 1
2A4-14718-00-T5
|
$18.49 | ||
|
Unavailable |
|||
|
#14
SCREW, BIND
98903-06010-00
Superseded by 98980-06010-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90202-05005-00
Superseded by 90202-05188-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
EMBLEM, PROTECTOR
2F4-14729-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#
EMBLEM, PROTECTOR
2A4-14729-00-00
|
$2.17 | ||
|
Unavailable |
|||
|
#
EMBLEM, PROTECTOR
3J8-14729-00-00
|
$3.36 | ||
|
Unavailable |
|||
