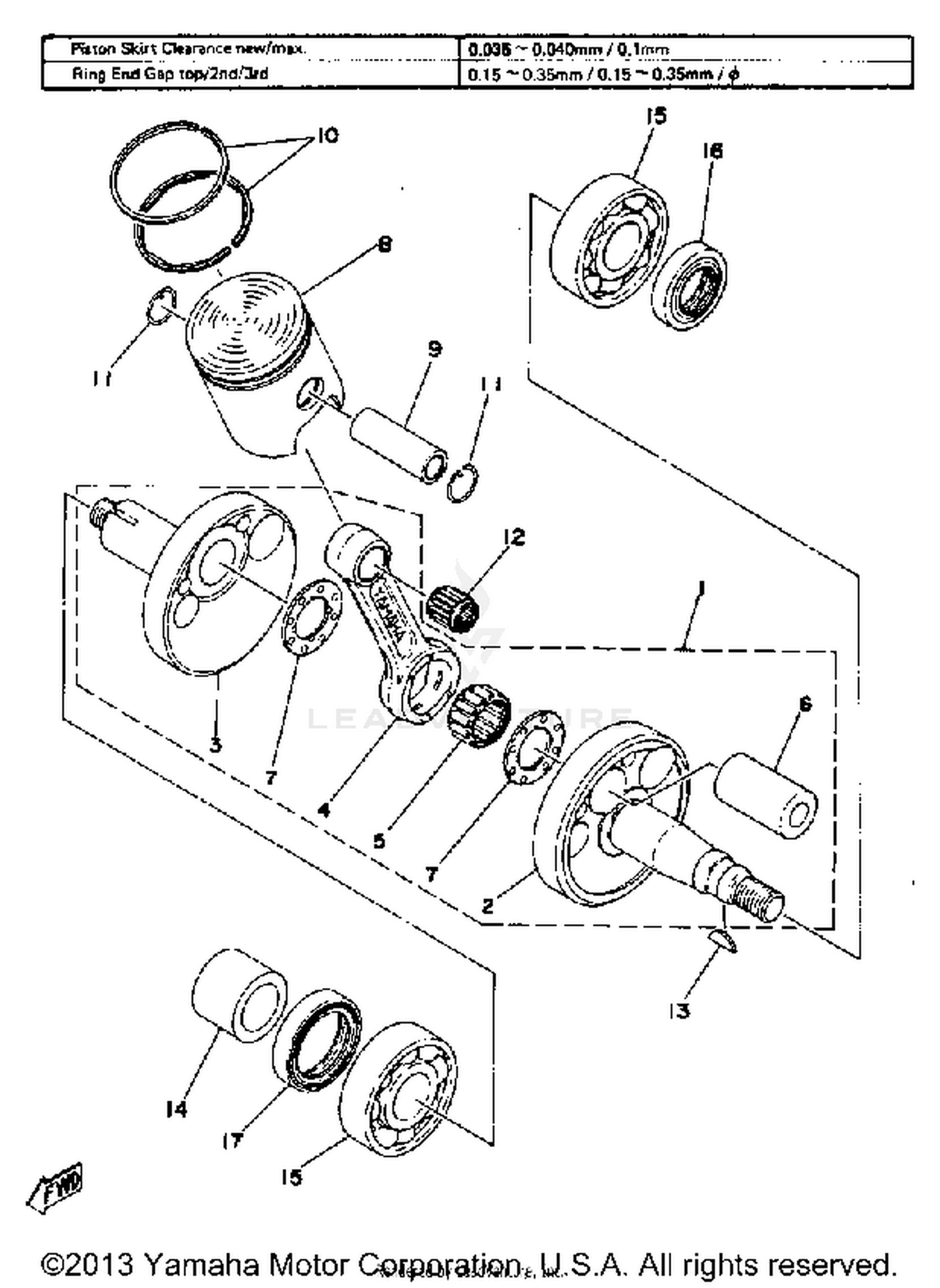

Crank - Piston Gt80g Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY
1K9-11400-00-00
|
$479.99 | ||
|
Unavailable |
|||
|
#2
CRANK 1
598-11412-00-00
|
$113.99 | ||
|
Unavailable |
|||
|
#3
CRANK 2
598-11422-00-00
|
$86.99 | ||
|
Unavailable |
|||
|
#4
ROD, CONNECTING (3R1-11651-00
3R1-11651-01-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING CYLINDER #10
93310-418T0-00
Superseded by 93310-418C4-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, CRANK 1
257-11681-00-00
Superseded by 257-11681-10-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
90209-18112-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON STD
3J8-11631-00-96
|
$101.99 | ||
|
Unavailable |
|||
|
#
PISTON 4 O/S 1.00
3J8-11638-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#
PISTON 3 O/S 0.75
3J8-11637-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#
PISTON 1 O/S 0.25
3J8-11635-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#
PISTON 2 O/S 0.50
3J8-11636-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#9
PIN, PISTON
527-11633-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON RINGSET STD
2A4-11610-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 1ST
2A4-11610-10-00
|
$25.60 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 2ND
2A4-11610-20-00
|
$29.10 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 3RD (3RD O/S)
2A4-11610-30-00
|
$31.44 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 4TH (4TH O/S)
2A4-11610-40-00
|
$37.99 | ||
|
Unavailable |
|||
|
#11
CIRCLIP
93450-13022-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93310-11268-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
KEY, WOODRUFF
90280-03017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-205E9-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
93306-20458-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL
93102-20009-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL, SW-TYPE (93103-28100)
93103-28011-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
