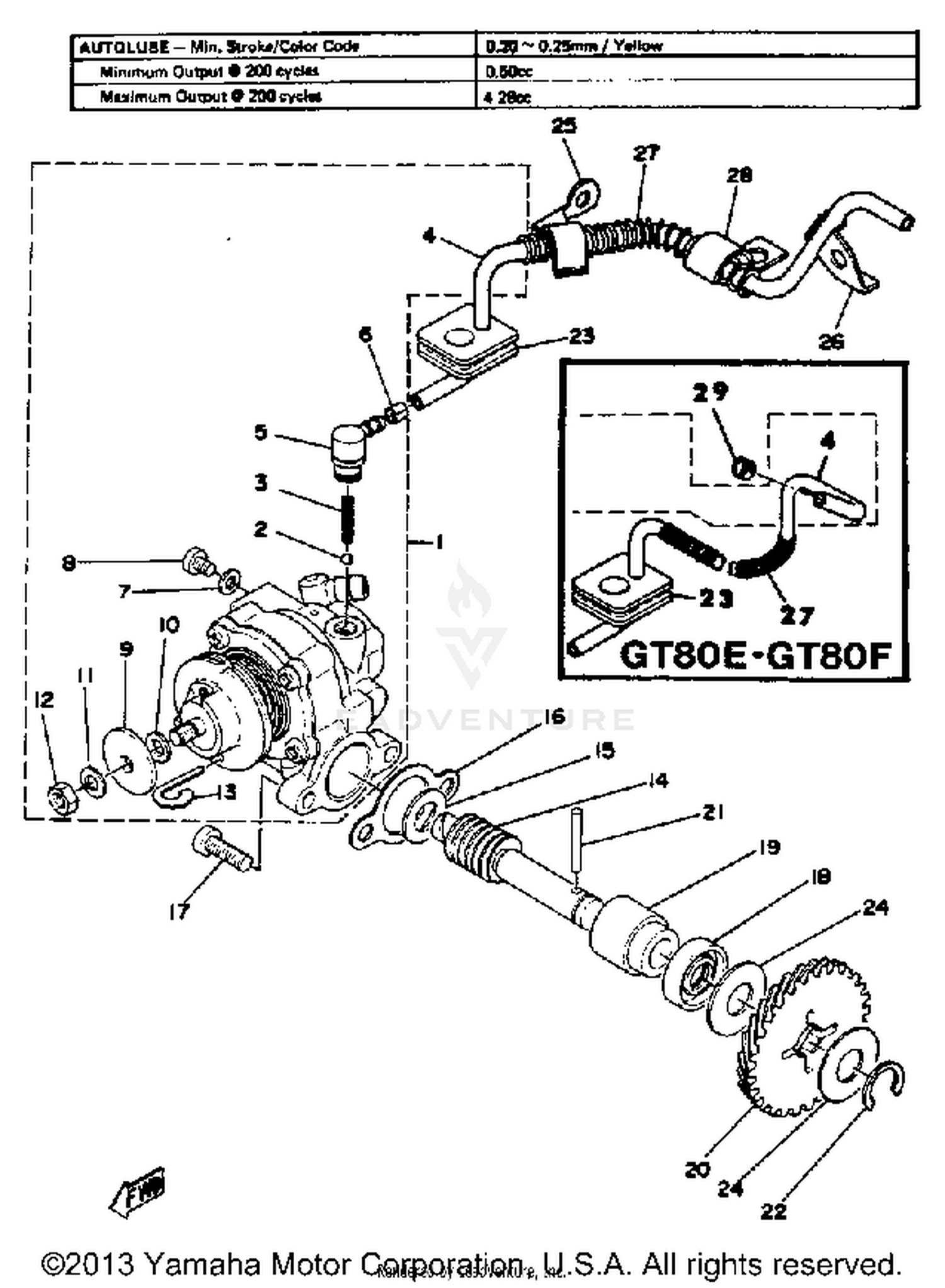

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL PUMP ASSEMBLY
1K8-13101-01-00
|
$64.99 | ||
|
Unavailable |
|||
|
#2
BALL
93505-32002-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, COMPRESSION
90501-02217-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE (L700)
90445-05217-00
Superseded by 90445-05M07-00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
NOZZLE
353-13552-01-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP
90468-02033-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
90430-04004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, BIND
98901-04008-00
Superseded by 98980-04008-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, ADJUSTING
137-13138-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM (T=1.0)
137-13137-00-10
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM (T=0.5)
137-13137-00-05
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM (T=0.1MM)
137-13137-00-00
Superseded by 137-13137-00-10
|
$7.49 | ||
|
Unavailable |
|||
|
#11
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
367-13146-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHAFT, WORM
257-13175-00-00
|
$23.63 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
90201-08624-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET, PUMP CASE
3MT-13116-00-00
Superseded by 126-13116-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL
93101-10090-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
METAL, WORM SHAFT OUTER
1E7-13176-00-00
Superseded by 137-13176-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, PUMP DRIVE
353-13178-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#21
PIN, DOWEL
93603-22028-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP
99001-08600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOLDER, OIL PIPE
248-13174-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-105J4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOLDER, OIL PIPE
367-13174-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOLDER
367-15378-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#27
SPRING, COMPRESSION
90501-06025-00
|
$2.40 | ||
|
Unavailable |
|||
|
#28
CLAMP
90462-06009-00
Superseded by 90462-05005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP
90468-02033-00
|
$7.49 | ||
|
Unavailable |
|||
