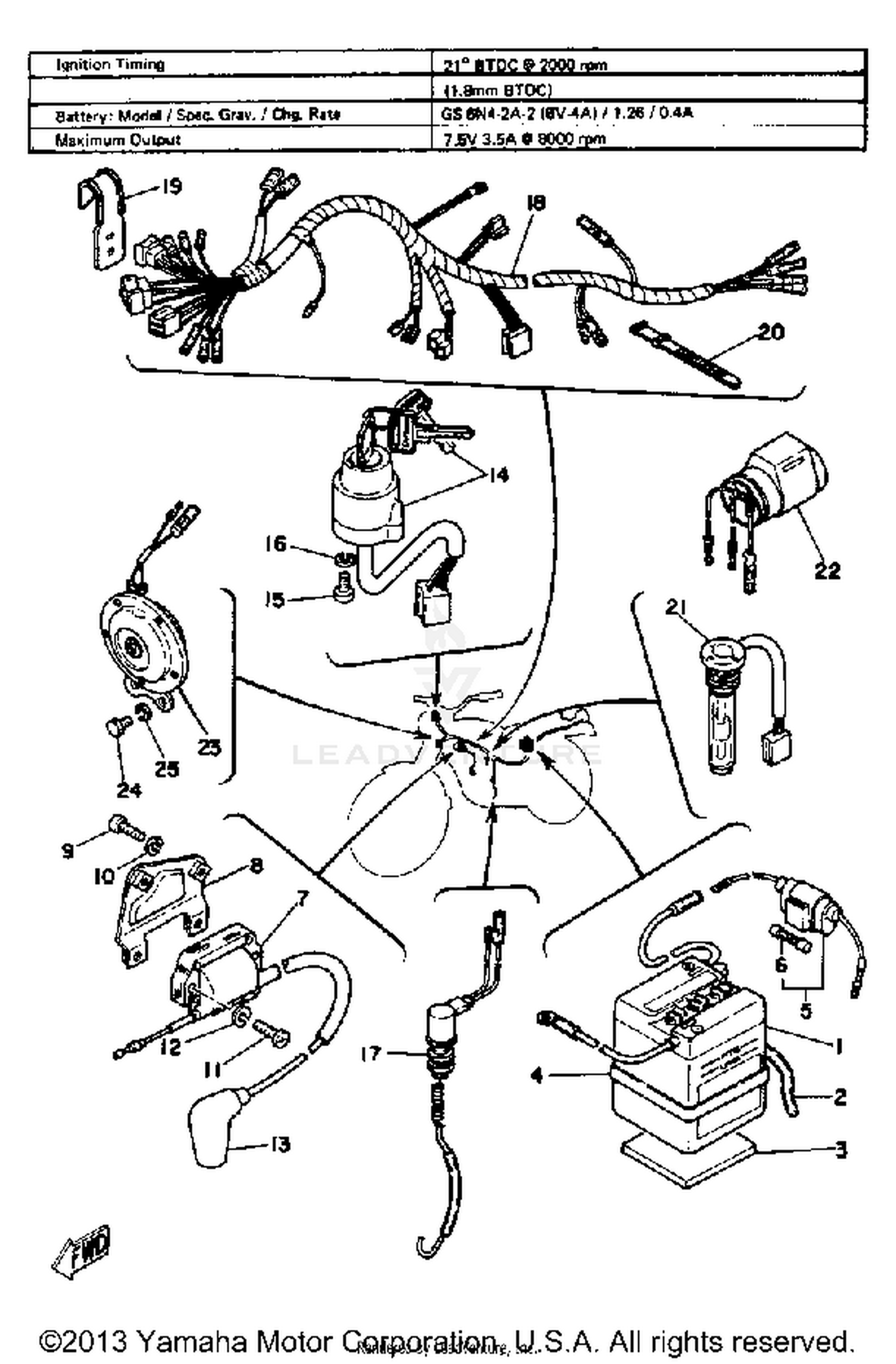

Electrical 1 Gt80g Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
6N4-2A-2 GS BATTERY
BTG-6N42A-20-00
Superseded by 6N4-2A200-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE
90445-08172-00
|
$4.60 | ||
|
Unavailable |
|||
|
#3
DAMPER, LOCATING 2
583-24182-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BAND, BATTERY
308-82124-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#5
FUSE HOLDER ASSY
55K-82150-01-00
Superseded by 55K-82150-02-00
|
$13.99 | ||
|
Unavailable |
|||
|
#6
FUSE (12V-10A)
116-82151-00-00
Superseded by 1A0-82151-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
IGNITION COIL ASSEMBLY
5G4-82310-40-00
Superseded by 355-82310-40-00
|
$187.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, IGN COIL
375-82316-01-00
|
$26.99 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#13
PLUG CAP ASSY
56J-82370-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
MAIN SWITCH ASSY
1FE-82510-00-00
Superseded by 53C-82510-01-00
|
$59.99 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
STOP SWITCH ASSEMBLY
353-82530-03-00
|
$50.99 | ||
|
Unavailable |
|||
|
#18
WIRE HARNESS ASSEMBLY
3J8-82590-50-00
|
$41.08 | ||
|
Unavailable |
|||
|
#19
CLAMP
2A3-82594-00-00
|
$0.70 | ||
|
Unavailable |
|||
|
#20
BAND, SWITCH CORD
437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL LVL GAUGE ASSEMBLY
2E7-85720-02-00
|
$72.99 | ||
|
Unavailable |
|||
|
#22
FLASHER RELAY ASSEMBLY
2F7-83350-60-00
|
$54.99 | ||
|
Unavailable |
|||
|
#23
HORN
2A7-83371-10-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
