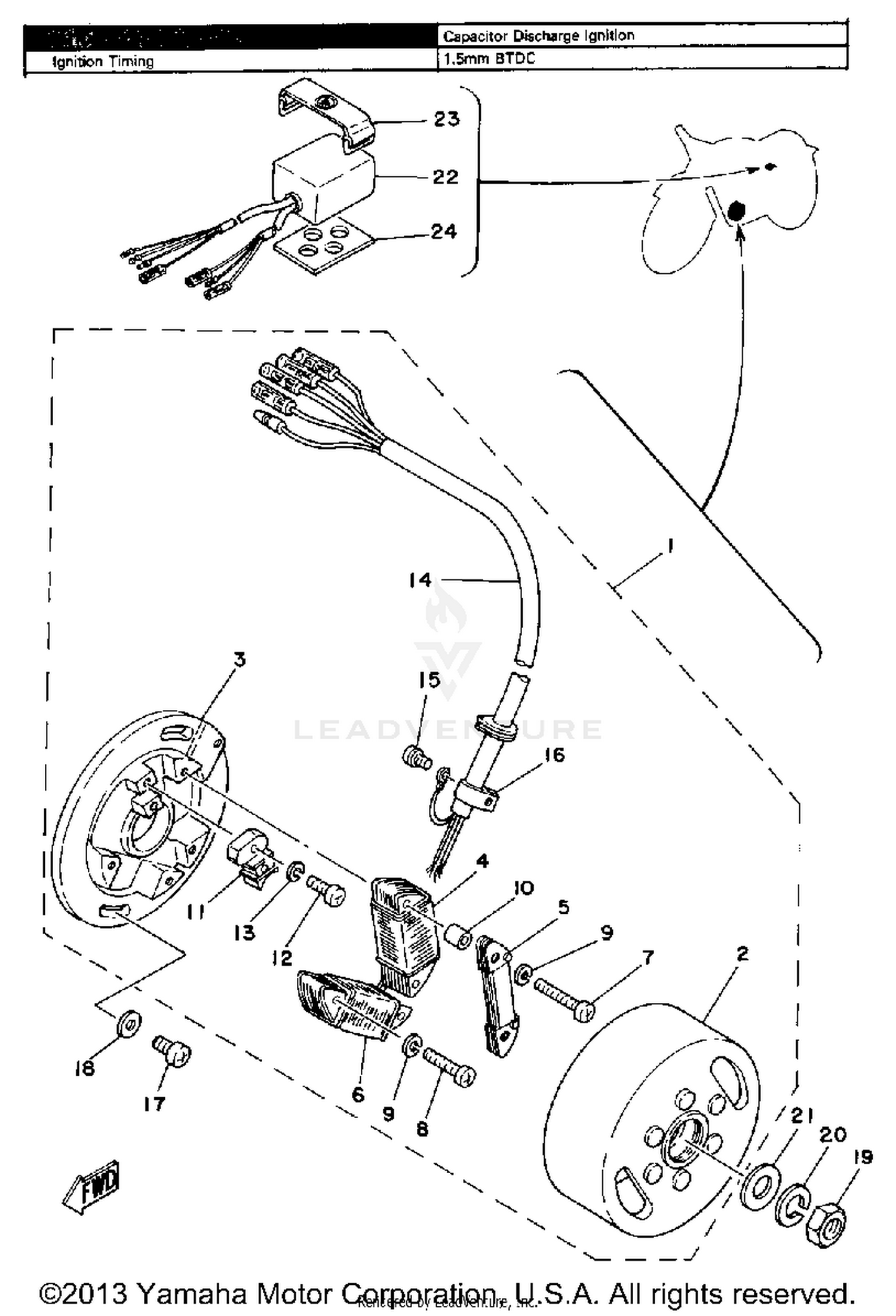

C - D - I - Magneto Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CDI MAGNETO ASSEMBLY
2W6-85500-20-00
|
$452.99 | ||
|
Unavailable |
|||
|
#2
ROTOR ASSEMBLY
1W2-85550-20-00
|
$168.99 | ||
|
Unavailable |
|||
|
#3
BASE, MAGNETO
1W2-85509-20-00
|
$85.99 | ||
|
Unavailable |
|||
|
#4
COIL SOURCE 1
2W6-85511-20-00
|
$90.99 | ||
|
Unavailable |
|||
|
#5
COIL SOURCE 2
2W6-85512-20-00
|
$88.99 | ||
|
Unavailable |
|||
|
#6
COIL, LIGHTING 1
1W2-85513-20-00
|
$117.99 | ||
|
Unavailable |
|||
|
#7
SCREW, PAN HEAD
98501-04035-00
Superseded by 98507-04035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98511-04030-00
Superseded by 98507-04030-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER
1W2-85516-20-00
|
$22.99 | ||
|
Unavailable |
|||
|
#11
COIL, PULSER
4V6-85580-20-00
|
$175.99 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Unavailable |
|||
|
#14
LEAD WIRE ASSEMBLY
2W6-85515-20-00
|
$22.32 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN HEAD
97601-04106-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
445-81328-20-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, HEXAGON
90170-12347-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92901-12100-00
Superseded by 92990-12100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-12593-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CDI UNIT ASSEMBLY
2W6-85540-20-00
|
$248.99 | ||
|
Unavailable |
|||
|
#23
BAND, TOOL
21V-21376-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER
2K7-85547-00-00
Superseded by 3RB-85547-01-00
|
$9.49 | ||
|
Unavailable |
|||
