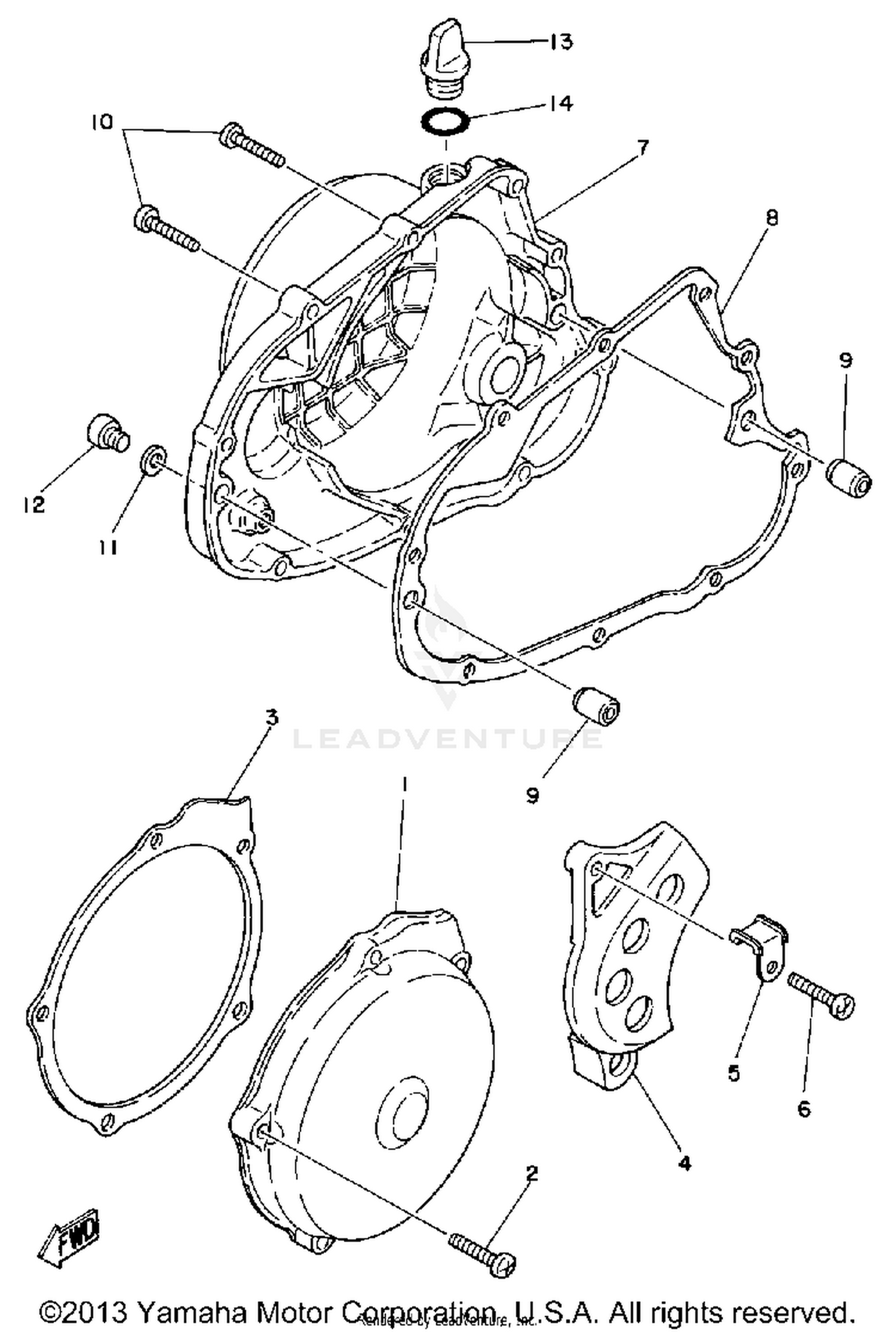

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE L
1W1-15411-00-00
|
$49.33 | ||
|
Unavailable |
|||
|
#2
SCREW, PAN HEAD
98516-06030-00
Superseded by 98517-06030-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET 1
1W1-15455-00-00
Superseded by 1W1-15455-01-00
|
$18.99 | ||
|
Unavailable |
|||
|
#4
COVER, CRANKCASE R
2W5-15421-00-00
|
$38.79 | ||
|
Unavailable |
|||
|
#5
CLAMP 2
2A6-15484-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98516-06030-00
Superseded by 98517-06030-00
|
$3.10 | ||
|
Unavailable |
|||
|
#7
COVER, CRANKCASE 3
1W1-15431-00-00
|
$145.99 | ||
|
Unavailable |
|||
|
#8
GSKT, CRCS
18G-15451-01-00
Superseded by 18G-15451-03-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98516-06030-00
Superseded by 98517-06030-00
|
$3.10 | ||
|
Unavailable |
|||
|
#11
GASKET
90430-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
98506-06008-00
Superseded by 98517-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUG, OIL LEVEL
1G8-15362-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
