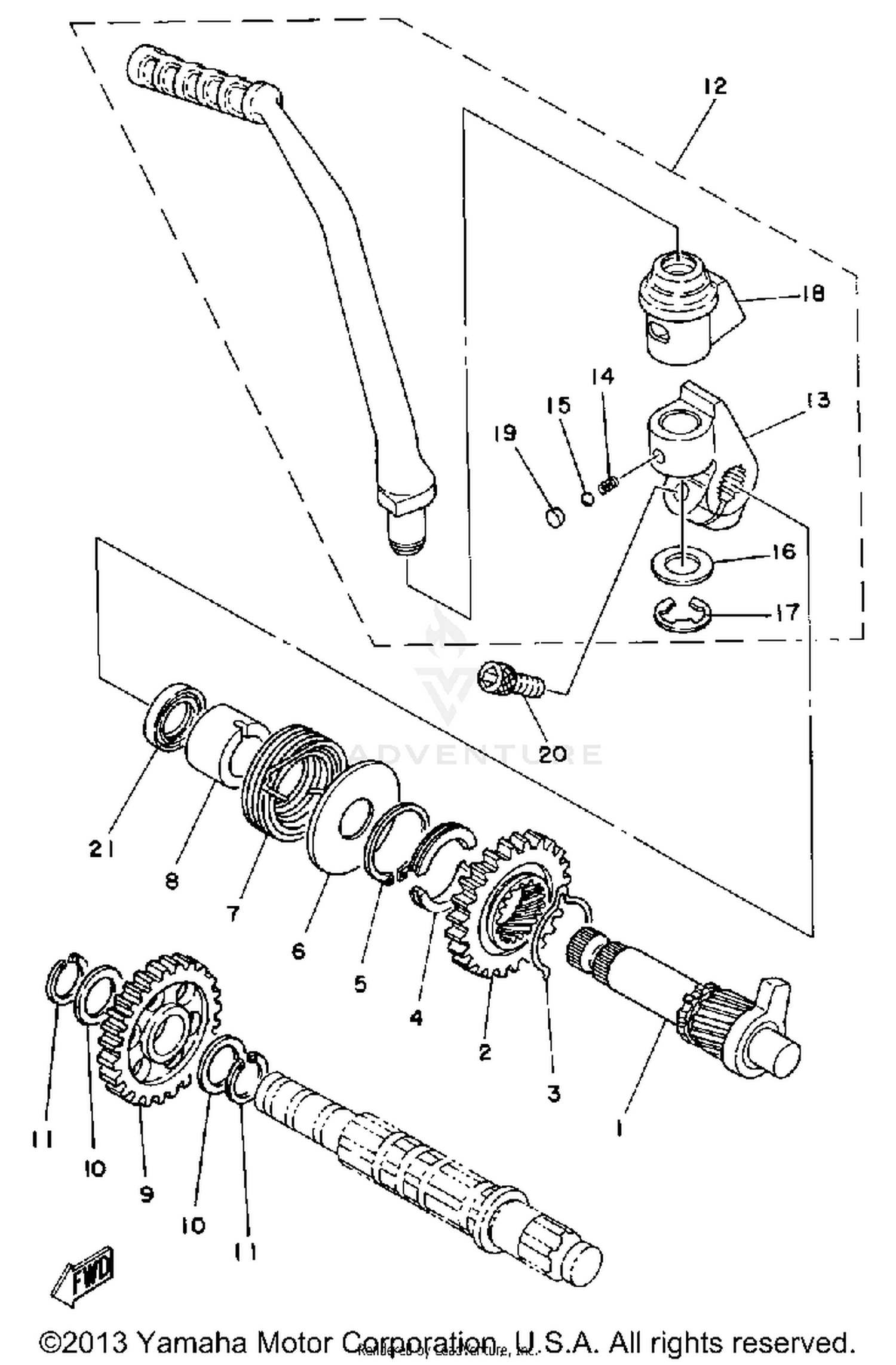

Kick Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
KICK AXLE ASSEMBLY
2A6-15660-01-00
|
$237.99 | ||
|
Unavailable |
|||
|
#2
GEAR, KICK (27T)
1W1-15641-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLIP
90468-26048-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, KICK GEAR
248-15654-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
99009-30400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, SPRING
401-15676-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, TORSION
90508-26346-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER
1W1-15666-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, KICK IDLE (25T)
525-15651-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM 1 (0.5T)
137-17417-00-05
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
93440-15012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
KICK CRANK ASSEMBLY (1W1-15611-
1W1-15620-01-00
|
$257.99 | ||
|
Unavailable |
|||
|
#13
BOSS, KICK CRANK
1W1-15621-01-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, COMPRESSION
90501-10459-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BALL
93503-16010-00
Superseded by 93503-16003-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-12541-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
93430-08007-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, KICK LEVER
1W1-15618-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLUG, TAPER
90336-06030-00
|
$2.25 | ||
|
Unavailable |
|||
|
#20
BOLT
91316-08025-00
Superseded by 91317-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL
93101-17062-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
