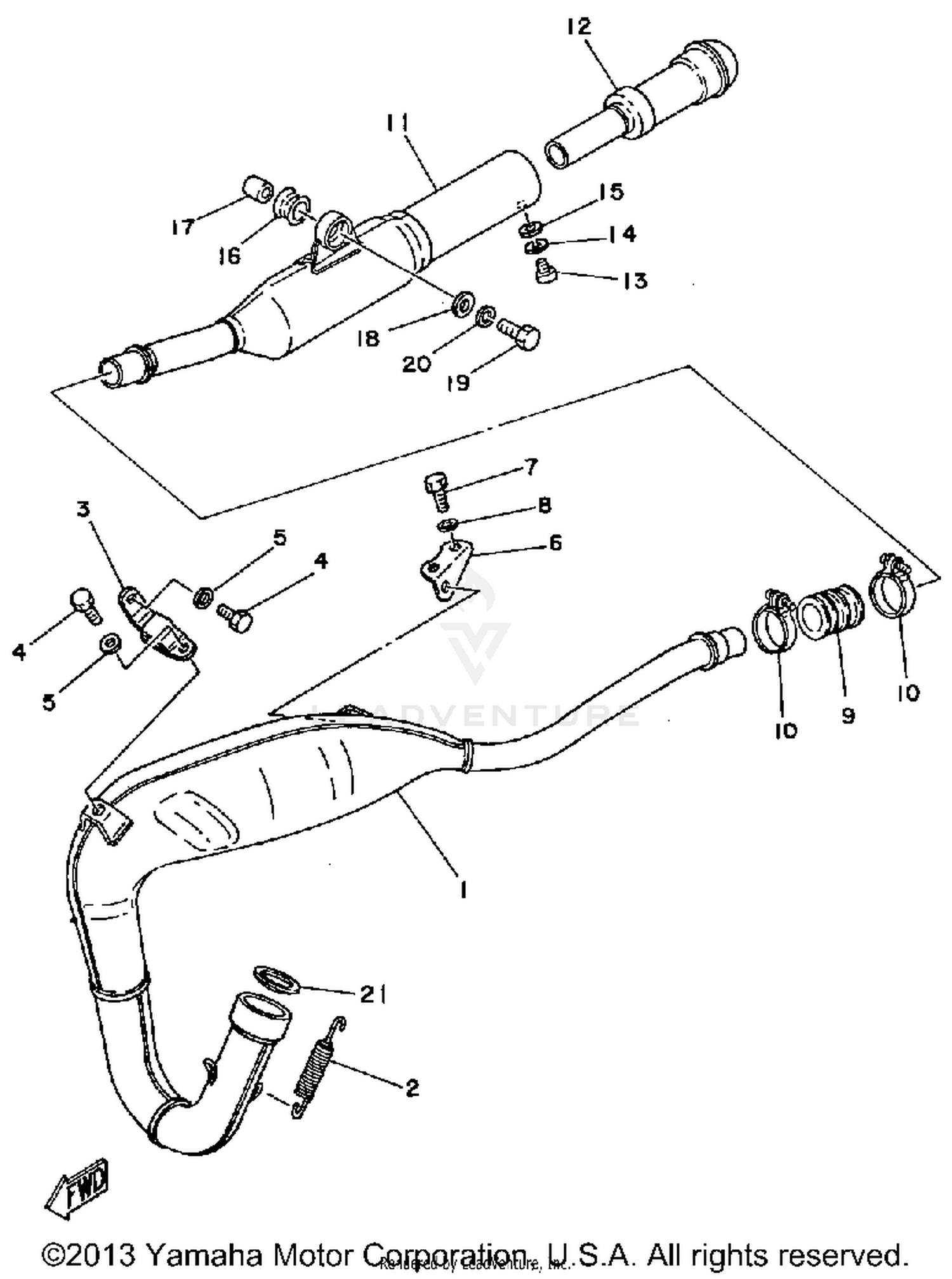

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY L
3R9-14610-00-00
|
$294.99 | ||
|
Unavailable |
|||
|
#2
SPRING, TENSION
90507-20030-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, MUFFLER 2
1M1-14772-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#4
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, MUFFLER 1
565-14771-00-00
Superseded by 565-14771-01-00
|
$17.99 | ||
|
Unavailable |
|||
|
#7
BOLT
97013-06012-00
|
$4.85 | ||
|
Unavailable |
|||
|
#8
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#9
GASKET, MUFFLER
1W2-14714-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP, HOSE
90460-37026-00
Superseded by 90460-37130-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SILENCER, EXHAUST
2A6-14753-00-00
|
$78.92 | ||
|
Unavailable |
|||
|
#12
PIPE, OUTLET
1M1-14752-01-00
|
$97.99 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#16
DAMPER, MUFFLER
565-14747-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-08258-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-085E6-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
97313-08030-00
Superseded by 97013-08030-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET, EXHAUST PIPE
3R3-14613-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
