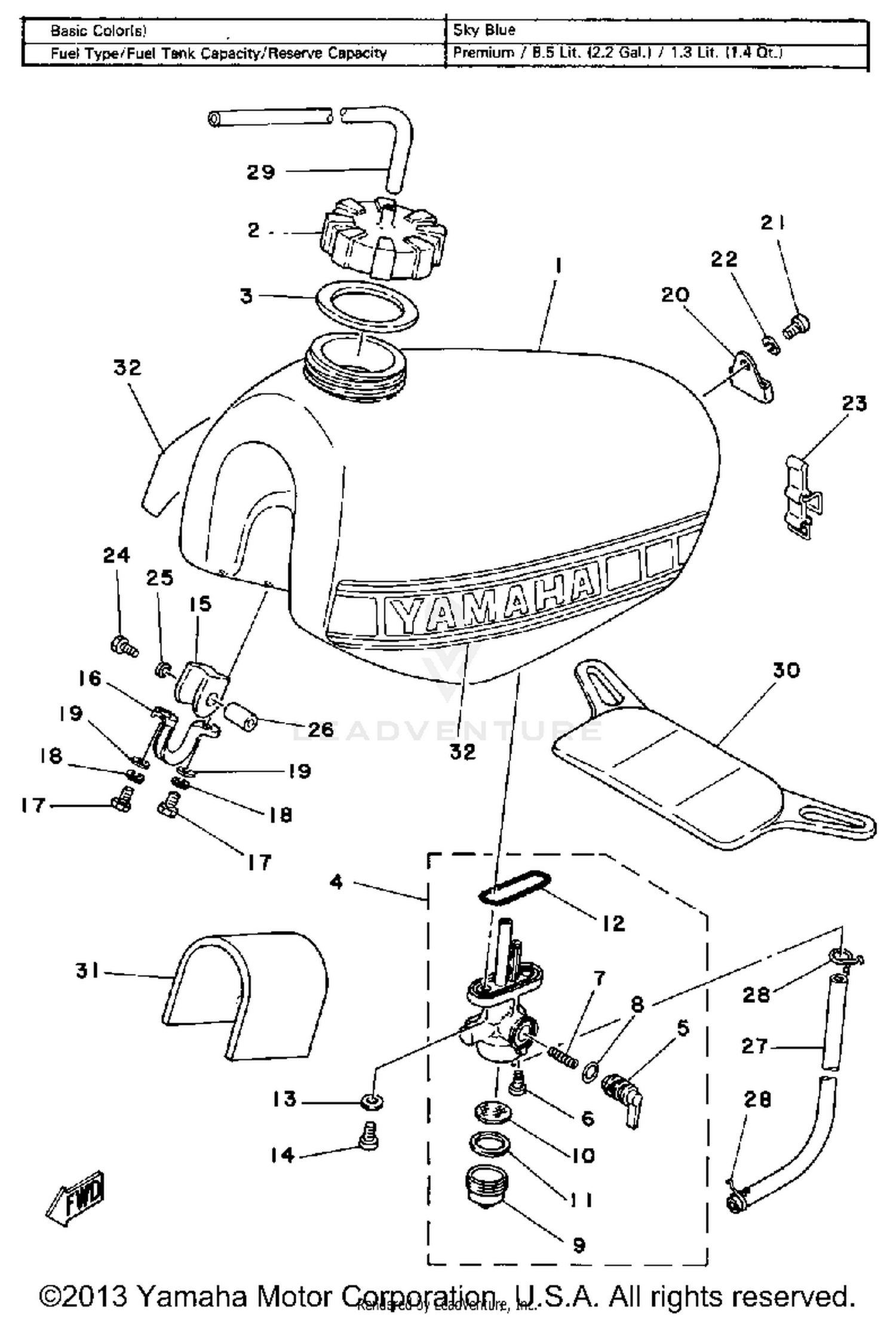

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
3R9-24110-00-00
|
$211.99 | ||
|
Unavailable |
|||
|
#2
BODY, CAP
1K7-24611-01-00
|
$36.99 | ||
|
Unavailable |
|||
|
#3
GASKET, CAP
1K7-24612-02-00
Superseded by 3R9-24612-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#4
FUEL COCK ASSEMBLY 1
3R9-24500-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#5
LEVER, COCK
2W6-24524-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#6
SCREW, LVR FITTING
2N3-24535-00-00
|
$4.50 | ||
|
Unavailable |
|||
|
#7
SPRING
2W6-24529-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#8
GASKET
2N3-24528-00-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUP, FILTER
357-24521-10-00
|
$5.44 | ||
|
Unavailable |
|||
|
#10
GASKET
357-24522-10-00
|
$8.99 | ||
|
Unavailable |
|||
|
#11
NET, FILTER
2W6-24561-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#12
O-RING
2W6-24512-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER, LOCATING 2
1W1-24182-01-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER, DAMPER
1W1-24144-01-00
|
$16.49 | ||
|
Unavailable |
|||
|
#17
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET, FUEL TNK 2
2K5-24192-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#23
BAND, TNK FITTING 1
2K5-24173-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#24
BOLT, WITH WASHER
90119-06022-00
|
$2.15 | ||
|
Unavailable |
|||
|
#25
WASHER, PLATE
90201-06407-00
Superseded by 90201-06747-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR, LEVER 1
90387-07393-00
Superseded by 36Y-83913-01-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOSE (L100)
90445-11295-00
Superseded by 90445-11293-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOSE (L540)
90445-09361-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
DAMPER, LOCATING 1
2K5-24181-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#31
DAMPER, LOCATING 3
1W1-24183-00-00
|
$7.52 | ||
|
Unavailable |
|||
|
#32
GRAPHIC SET
3R9-24240-10-00
|
$37.30 | ||
|
Unavailable |
|||
