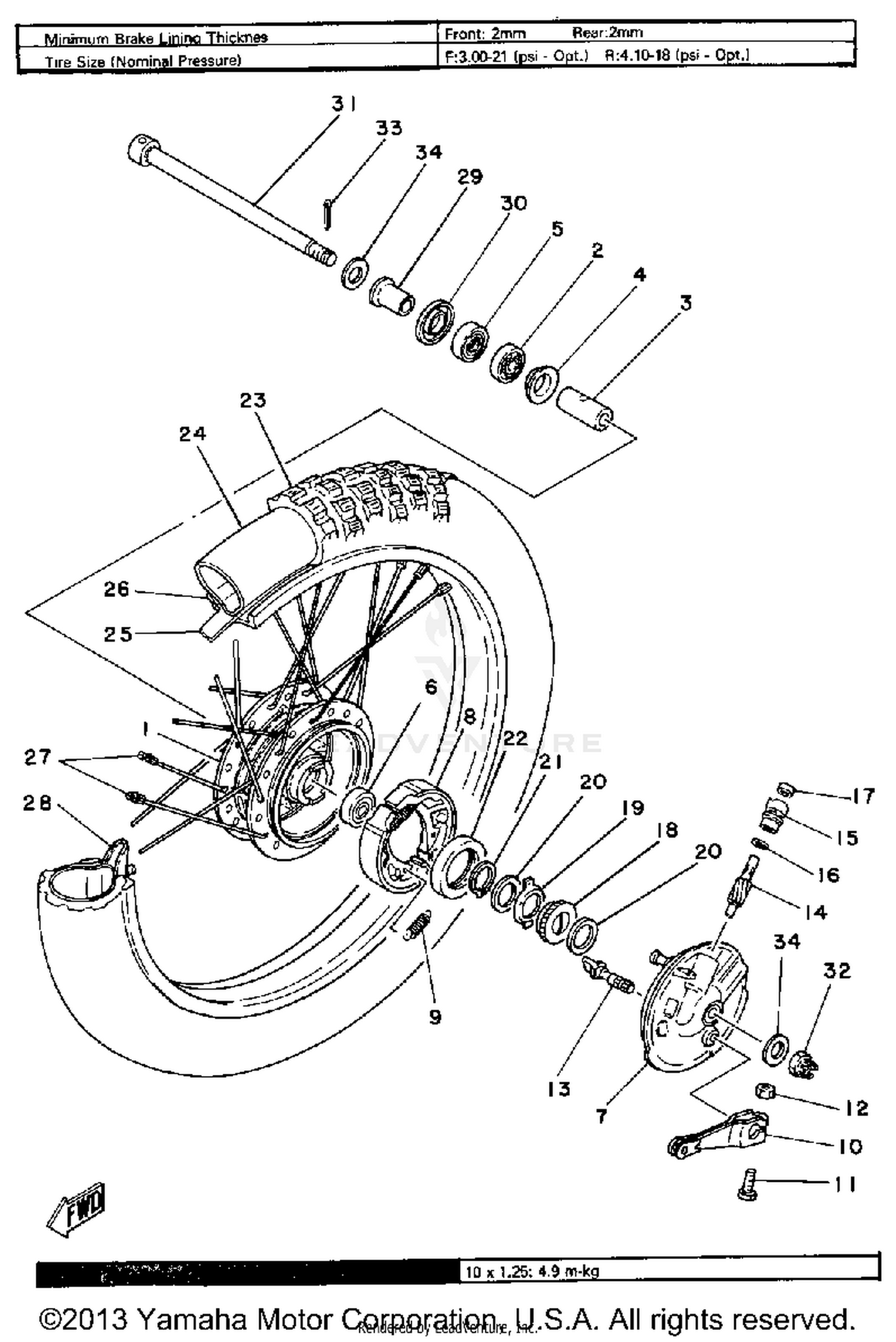

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
248-25111-00-98
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-30103-00
Superseded by 93306-30102-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER
90560-12261-00
Superseded by 90560-12138-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLANGE, SPACER
109-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93102-18008-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93306-30103-00
Superseded by 93306-30102-00
|
$36.99 | ||
|
Unavailable |
|||
|
#7
PLATE, BRAKE SHOE
3R9-25121-00-98
|
$54.98 | ||
|
Unavailable |
|||
|
#8
BRAKESHOE SET
22F-W2534-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#9
SPRING, TENSION
90506-16150-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
LEVER, CAMSHAFT 1 (401-25155-00
401-25155-11-00
|
$32.99 | ||
|
Unavailable |
|||
|
#11
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAMSHAFT
122-25351-02-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, METER
3R9-25138-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#15
BUSH
109-25136-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-07076-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL
93104-07003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, DRIVE
3R9-25135-00-00
|
$7.88 | ||
|
Unavailable |
|||
|
#19
CLUTCH, METER
183-25149-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-20269-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP
99009-20400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL
93105-47007-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BS 300X21 M21
94130-21554-00
|
$43.53 | ||
|
Unavailable |
|||
|
#24
TUBE (MCS 2.75/3.00-21 TR6)
94227-21123-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BAND,RIM (1.60-21)
94330-21084-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
RIM 1.60X21
94416-21265-00
|
$266.99 | ||
|
Unavailable |
|||
|
#27
SPOKE SET, FRONT
345-25104-01-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPACER, BEAD
1T1-25194-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR (183-25183-00)
90387-12265-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, HUB DUST
2K5-25118-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
AXLE, WHEEL
353-25381-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, CASTLE
90171-10004-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
90201-122A7-00
Superseded by 90201-12047-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
