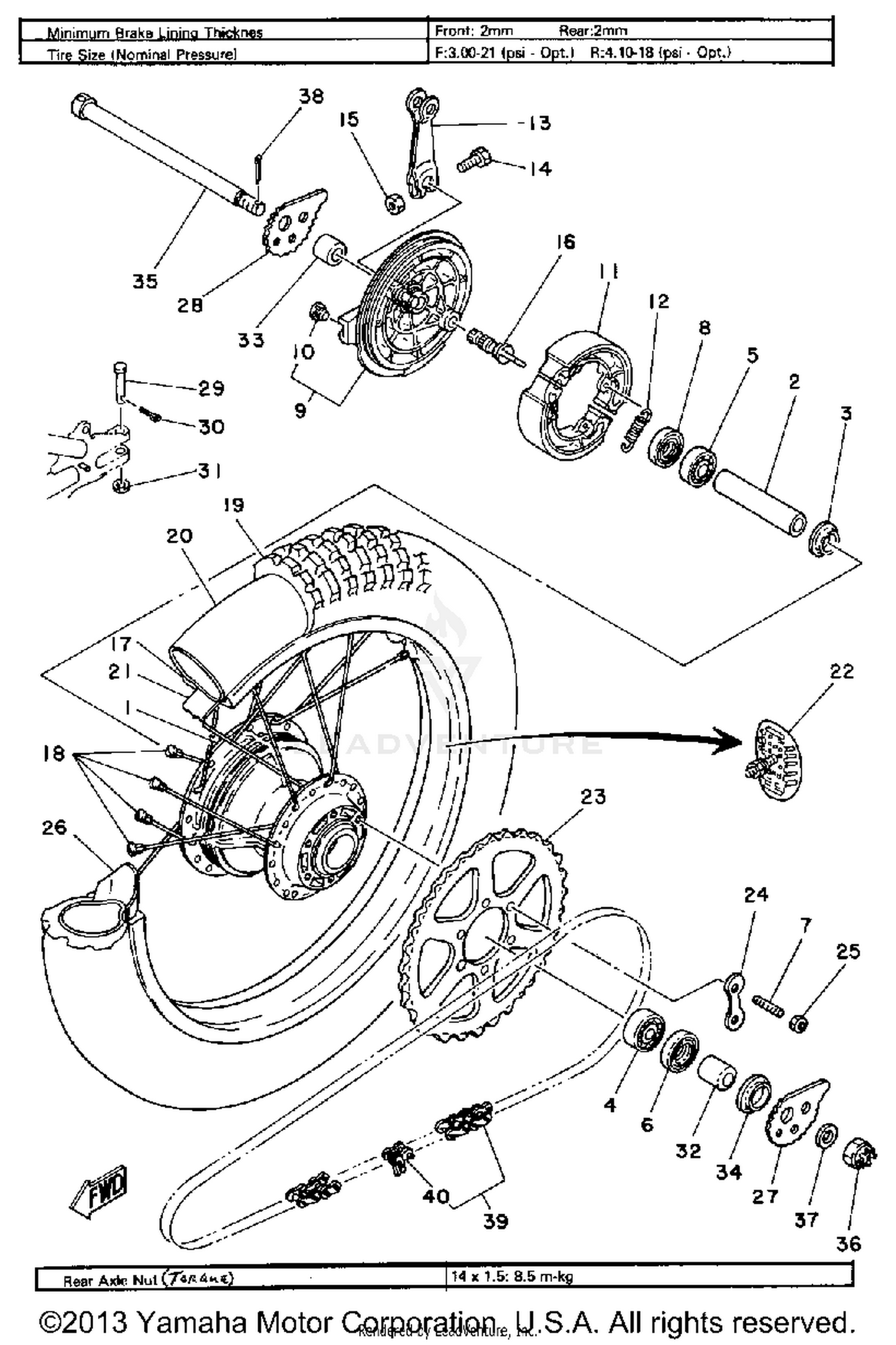

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
1W1-25311-00-98
|
$206.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-15313-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLANGE, SPACER
146-25115-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-30202-00
Superseded by 93306-30212-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-20209-00
Superseded by 93306-20205-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93106-26005-00
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, STUD
90116-10221-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
93104-22018-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRAKE SHOE PLATE ASSEMBLY (2A6-
99999-02024-00
|
$106.99 | ||
|
Unavailable |
|||
|
#10
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRAKE SHOE SET
183-W2536-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#12
SPRING, TENSION
90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER, CAMSHAFT 1
1E2-25155-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAMSHAFT
2RH-25351-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
RIM 1.85X18
94418-18245-00
|
$274.99 | ||
|
Unavailable |
|||
|
#18
SPOKE SET, REAR
537-25304-01-00
|
$131.99 | ||
|
Unavailable |
|||
|
#19
410-18 4PR M22
94141-18649-00
|
$55.99 | ||
|
Unavailable |
|||
|
#20
TUBE (4.10-18)
94241-18153-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND, RIM (2.50-18)
94345-18081-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPACER, BEAD
2X3-25394-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#23
SPROCKET, DRIVN 46T
3R9-25446-10-00
|
$49.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 44T
3R9-25444-10-33
|
$44.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 48T
3R9-25448-10-00
|
$54.99 | ||
|
Unavailable |
|||
|
#24
WASHER
1G8-25412-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPACER, BEAD
2X3-25394-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#27
PULLER, CHAIN 1
1W2-25388-01-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PULLER, CHAIN 2
1W2-25389-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN, CLEVIS
91701-06042-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#32
COLLAR
90387-15524-00
|
$6.99 | ||
|
Unavailable |
|||
|
#33
COLLAR
90387-15524-00
|
$6.99 | ||
|
Unavailable |
|||
|
#34
COVER, HUB DUST
401-25367-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
AXLE, WHEEL (2A6-25381-00-00)
5X3-25381-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, PLATE
90201-15238-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
520D5-100L DID (94515-20100)
94585-20100-00
Superseded by 9Y585-20099-00
|
$108.99 | ||
|
Unavailable |
|||
|
#40
JOINT,CHAIN (DID 520DM-RJ)
94685-20001-00
Superseded by 94681-68001-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
