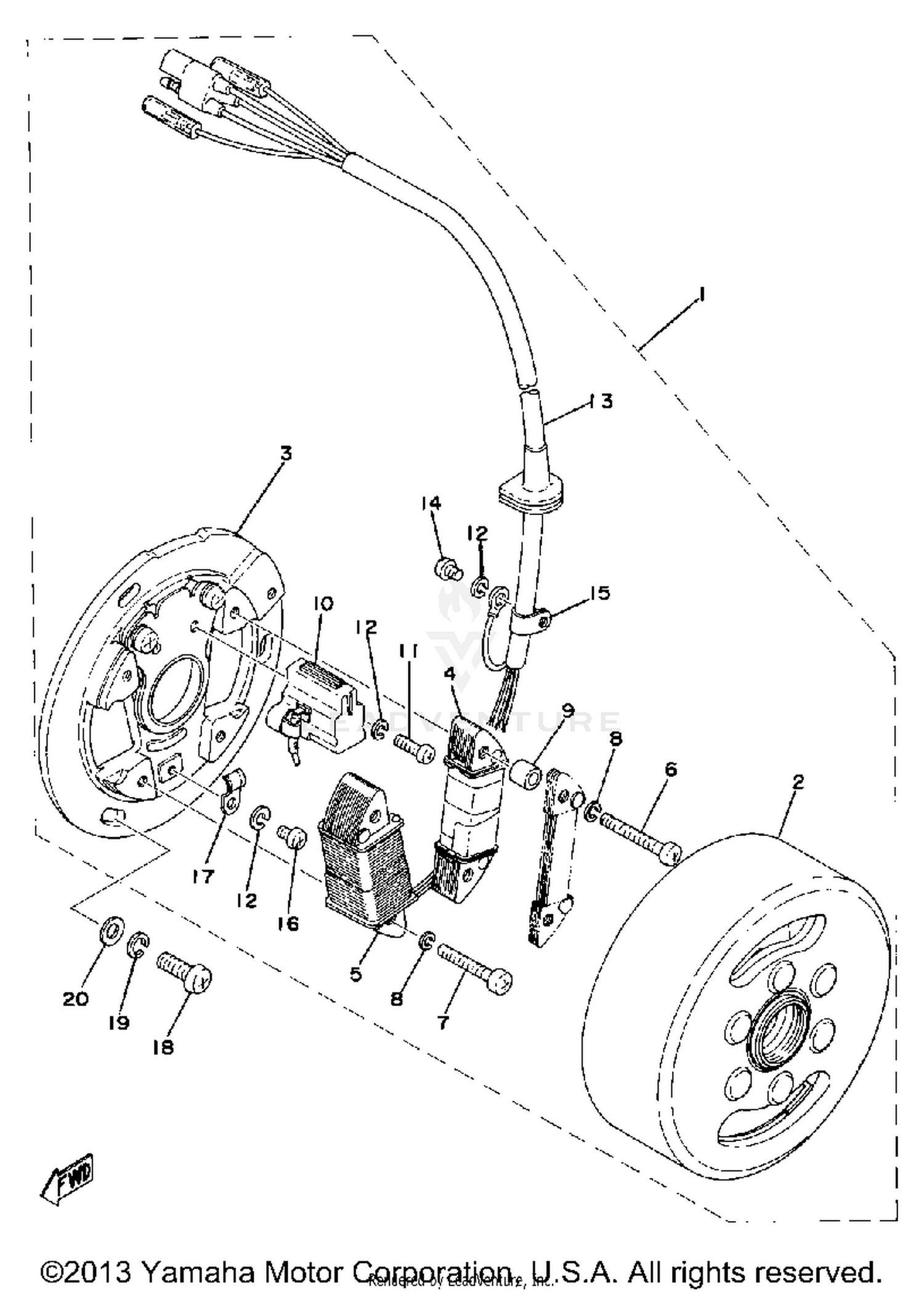

1976 Yamaha IT400 C - D - I - MAGNETO OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CDI MAGNETO ASSEMBLY
1K7-85500-20-00
|
$265.99 | ||
|
Unavailable |
|||
|
#2
ROTOR ASSEMBLY
445-85550-21-00
|
$222.99 | ||
|
Unavailable |
|||
|
#3
BASE, MAGNETO
445-85509-20-00
|
$46.48 | ||
|
Unavailable |
|||
|
#4
COIL SOURCE 2
445-85512-20-00
|
$150.99 | ||
|
Unavailable |
|||
|
#5
COIL, LIGHTING 1
510-85513-25-00
|
$50.28 | ||
|
Unavailable |
|||
|
#6
SCREW, PAN HEAD
98501-05035-00
Superseded by 98507-05035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98503-05025-00
Superseded by 98580-05525-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92990-05100-00
|
$0.28 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER
445-85519-20-00
|
$6.49 | ||
|
Unavailable |
|||
|
#10
COIL, PULSER
445-85580-21-00
|
$142.99 | ||
|
Unavailable |
|||
|
#11
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEAD WIRE ASSEMBLY
510-85515-25-00
|
$31.04 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
445-81328-20-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
98511-04006-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP, LEAD
445-85528-20-00
|
$2.17 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN HEAD
98580-06020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLAIN
92990-06200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
