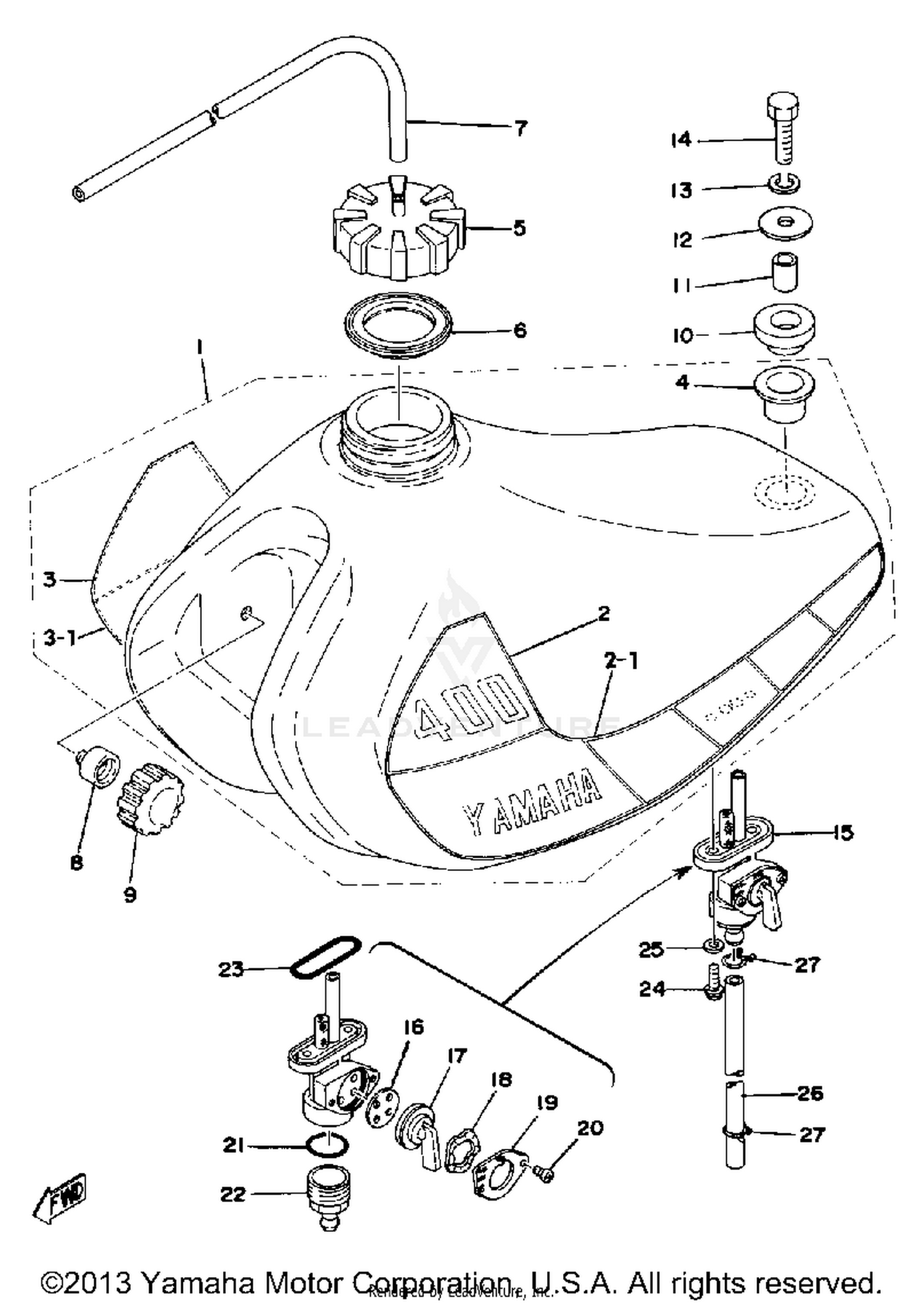

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
1K7-24110-00-01
|
$252.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 3
1K7-24246-01-00
|
$21.95 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 4
1K7-24247-01-00
|
$12.08 | ||
|
Unavailable |
|||
|
#2
GRAPHIC, FUEL TNK 1
1K7-24244-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#3
GRAPHIC, FUEL TNK 2
1K7-24245-01-00
|
$13.49 | ||
|
Unavailable |
|||
|
#4
COLLAR
90387-23539-00
|
$2.39 | ||
|
Unavailable |
|||
|
#5
BODY, CAP
1K7-24611-01-00
|
$36.99 | ||
|
Unavailable |
|||
|
#
BODY FUEL TANK CAP (1K7-24611-0
99999-00973-00
|
$48.99 | ||
|
Unavailable |
|||
|
#
GASKET, CAP
1K7-24612-02-00
Superseded by 3R9-24612-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#6
GASKET, CAP
1K7-24612-01-00
|
$7.99 | ||
|
Unavailable |
|||
|
#7
HOSE (L675)
90445-09111-00
Superseded by 90445-090F6-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER, DAMPER
1K7-24144-00-00
|
$2.17 | ||
|
Unavailable |
|||
|
#9
DAMPER, LOCATING 1
278-24181-00-00
Superseded by 3TB-24181-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET
90480-23192-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-10538-00
|
$1.83 | ||
|
Unavailable |
|||
|
#12
WAHSER, PLAIN
90201-10146-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92990-10100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT,WITH WASHER
97301-10035-00
Superseded by 97070-10035-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
FUEL COCK ASSEMBLY 1 (214-24500
498-24500-01-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
VALVE
498-24523-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
LEVER, COCK
498-24524-01-00
|
$39.99 | ||
|
Unavailable |
|||
|
#18
WASHER, WAVE
90206-18025-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, LVR FITTING
498-24525-00-00
|
$12.16 | ||
|
Unavailable |
|||
|
#20
SCREW, LEVER FITTING
214-24535-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET
498-24522-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CUP, FILTER
498-24521-00-00
|
$11.24 | ||
|
Unavailable |
|||
|
#23
GASKET
214-24512-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90202-05187-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE
90445-11149-00
|
$5.99 | ||
|
Unavailable |
|||
|
#27
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
