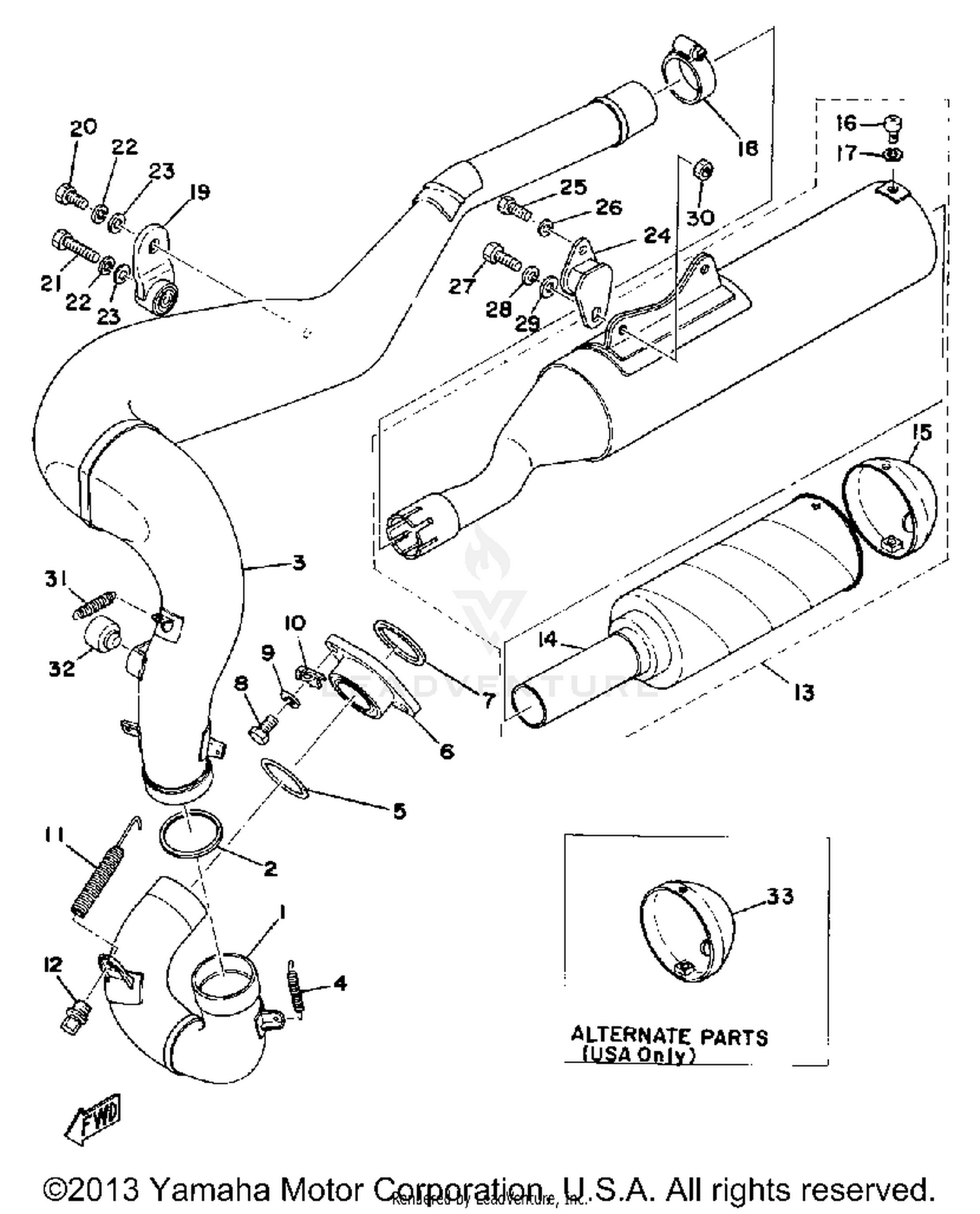

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST L
510-14611-01-00
|
$88.99 | ||
|
Unavailable |
|||
|
#2
GASKET
248-14623-00-00
Superseded by 248-14623-10-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
MUFFLER L
510-14711-02-00
|
$177.99 | ||
|
Unavailable |
|||
|
#4
SPRING, TENSION
90506-18068-00
|
$6.49 | ||
|
Unavailable |
|||
|
#5
GASKET, EXHAUST PIPE
214-14613-00-00
Superseded by 214-14613-09-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, RING
214-14612-00-00
|
$42.72 | ||
|
Unavailable |
|||
|
#7
GASKET
248-14623-00-00
Superseded by 248-14623-10-00
|
$7.99 | ||
|
Unavailable |
|||
|
#8
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE
363-14685-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#11
SPRING, TENSION (145-14683-00)
90507-20012-00
|
$14.99 | ||
|
Unavailable |
|||
|
#12
BOLT, HOOK
409-14684-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#13
SILENCER ASSEMBLY
1K7-14750-21-00
|
$108.99 | ||
|
Unavailable |
|||
|
#14
PIPE, OUTLET
1K7-14752-00-00
|
$47.56 | ||
|
Unavailable |
|||
|
#15
CAP, SILENCER
1K7-14787-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#18
CLAMP, HOSE
90460-35076-00
|
$10.45 | ||
|
Unavailable |
|||
|
#19
STAY, MUFFLER 1
483-14771-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#20
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
97313-08035-00
Superseded by 97013-08035-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
STAY, MUFFLER 2
483-14781-02-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEX
97313-06018-00
Superseded by 97013-06018-00
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#27
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.21 | ||
|
Unavailable |
|||
|
#28
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#29
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Unavailable |
|||
|
#30
NUT
95333-08600-00
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING, TENSION
90506-14129-00
|
$11.49 | ||
|
Unavailable |
|||
|
#32
STOPPER, MAIN STAND
278-27114-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
CAP, SILENCER
510-14787-20-00
|
$3.36 | ||
|
Unavailable |
|||
