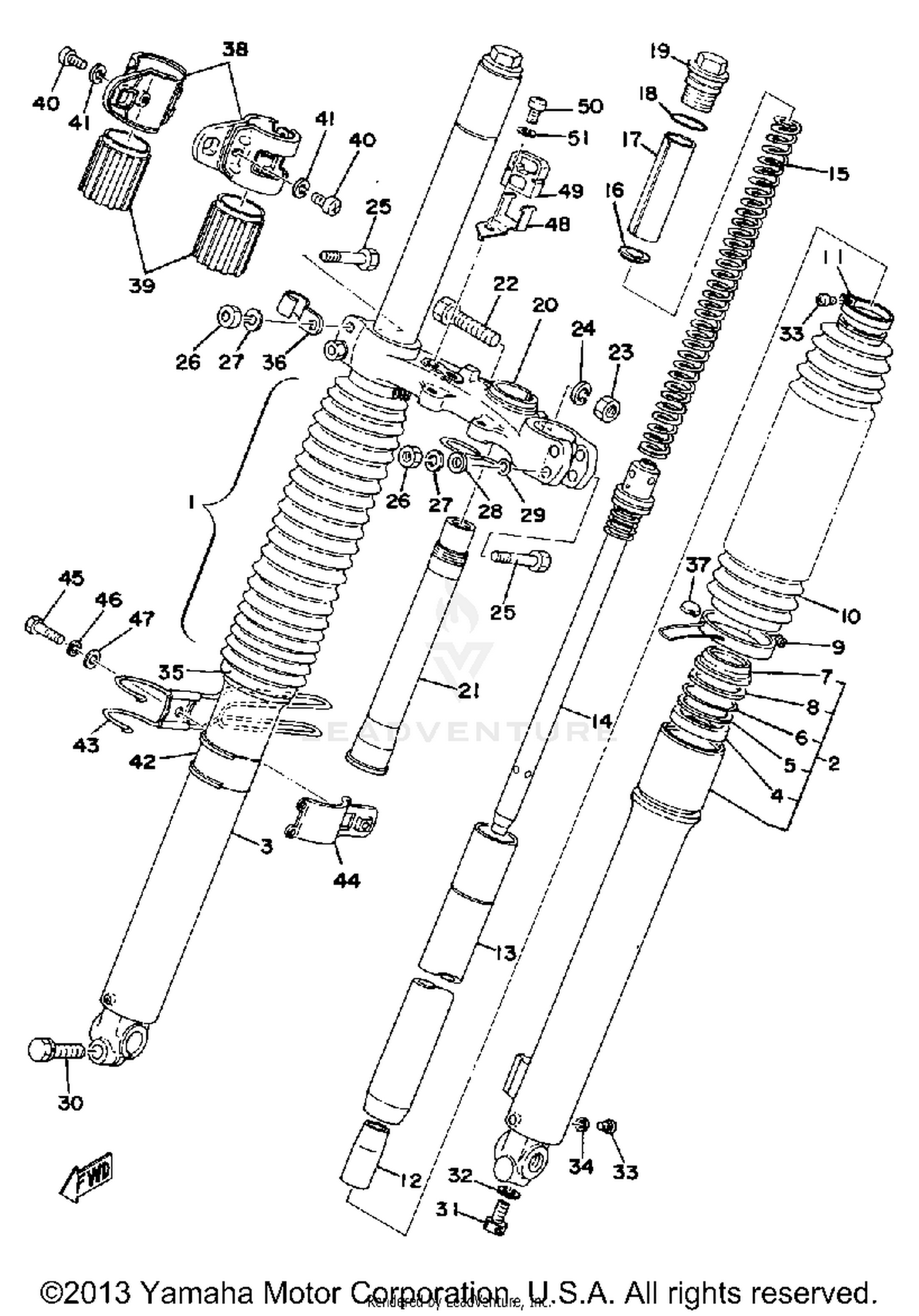

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
1K7-23101-00-00
|
$197.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
1K7-23126-00-00
|
$105.99 | ||
|
Unavailable |
|||
|
#3
TUBE, OUTER 2
1K7-23136-00-00
|
$116.99 | ||
|
Unavailable |
|||
|
#4
OIL SEAL
48Y-23145-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, OIL SEAL
509-23146-L0-00
|
$3.57 | ||
|
Unavailable |
|||
|
#6
CLIP, OIL SEAL
509-23156-L0-00
|
$2.37 | ||
|
Unavailable |
|||
|
#7
COVER, DUST SEAL
509-23148-L0-00
|
$5.24 | ||
|
Unavailable |
|||
|
#8
SEAL, DUST
509-23144-L0-00
|
$23.99 | ||
|
Unavailable |
|||
|
#9
HOLDER, CABLE 1
583-23318-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#10
BOOT, FRONT FORK
509-23191-L1-00
|
$28.99 | ||
|
Unavailable |
|||
|
#11
BAND, BOOT
341-92090-60-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPINDLE, TAPER
509-23173-L0-00
|
$4.56 | ||
|
Unavailable |
|||
|
#13
INNER TUBE 1
1K7-23110-00-00
|
$61.68 | ||
|
Unavailable |
|||
|
#14
CYLINDER, FRTFRK
1K7-23170-00-00
|
$32.12 | ||
|
Unavailable |
|||
|
#15
SPRING, FRONT FORK
1K7-23141-00-00
|
$19.28 | ||
|
Unavailable |
|||
|
#16
SEAT, SPRING UPPER
583-23142-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#17
SPACER
1K7-23118-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#18
GASKET
240-23114-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, CAP (583-23111-00)
2W6-23111-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#20
UNDER BRACKET
2H1-23340-00-33
|
$177.99 | ||
|
Unavailable |
|||
|
#21
SHAFT, STEERING
1E6-23341-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#22
BOLT 2
322-23356-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#23
NUT
322-23357-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#24
WASHER, SPRING
92990-10100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
90101-08340-00
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, HEXAGON
90170-08180-00
|
$1.74 | ||
|
Unavailable |
|||
|
#27
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOLDER, CABLE 2
509-23319-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#30
BOLT 1 (90119-08011)
J60-23346-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#31
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
GASKET
509-23158-L0-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BAND
509-23489-L0-00
|
$10.49 | ||
|
Unavailable |
|||
|
#36
CLIP
90468-20071-00
|
$1.49 | ||
|
Unavailable |
|||
|
#37
HOLDER
509-26393-00-00
|
$2.00 | ||
|
Unavailable |
|||
|
#38
STAY, HEADLIGHT 1
1K7-84118-60-33
|
$18.22 | ||
|
Unavailable |
|||
|
#39
DAMPER, HDLT STAY
1K7-84136-61-00
|
$1.75 | ||
|
Unavailable |
|||
|
#40
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#42
DAMPER 1
1K7-21541-00-00
|
$1.78 | ||
|
Unavailable |
|||
|
#43
HOLDER, CABLE 1
1K7-23318-00-00
|
$4.56 | ||
|
Unavailable |
|||
|
#44
HOLDER, CABLE 2
498-23319-01-00
|
$9.28 | ||
|
Unavailable |
|||
|
#45
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#47
WASHER, PLAIN
92990-06200-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#48
STAY, COUPLER
1K7-21396-01-00
|
$1.15 | ||
|
Unavailable |
|||
|
#49
HOLDER, BATT BOX
1K7-21388-00-00
|
$0.52 | ||
|
Unavailable |
|||
|
#50
BOLT
97013-06012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
