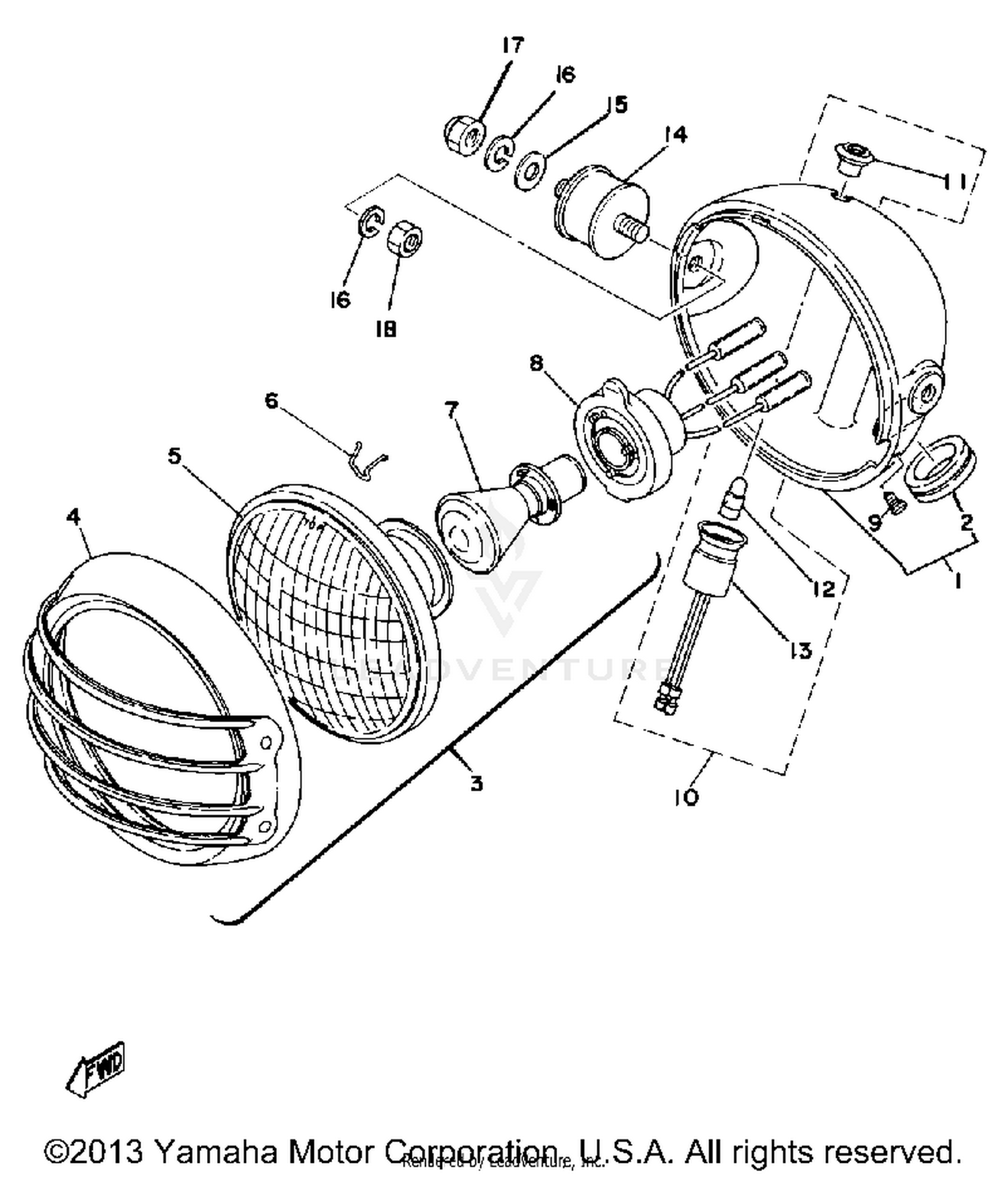

Head Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSEMBLY, HEADLIGHT
539-84130-00-36
|
$74.99 | ||
|
Unavailable |
|||
|
#2
GROMMET, WRHRNES
150-84153-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
RIM, HEADLIGHT
493-84115-60-00
|
$80.99 | ||
|
Unavailable |
|||
|
#5
LENS ASSEMBLY
434-84120-60-00
|
$11.79 | ||
|
Unavailable |
|||
|
#6
SPRING, REFLECTOR
195-84324-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BULB, HL6V35/35W
214-84114-60-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SOCKET
214-84112-61-00
|
$73.99 | ||
|
Unavailable |
|||
|
#9
SCREW, COUNTERSUNK
90152-05005-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#10
PILOT LIGHT ASSEMBLY
214-84101-61-00
|
$25.99 | ||
|
Unavailable |
|||
|
#11
BODY, PILOT LIGHT
256-84357-61-00
|
$10.60 | ||
|
Unavailable |
|||
|
#12
BULB
104-83517-10-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SOCKET CORD ASSEMBLY 2
214-84150-61-00
|
$24.99 | ||
|
Unavailable |
|||
|
#14
BOLT, SPECIAL
1K7-84137-60-00
|
$8.88 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT (CROWN) (93501-08800-00)
95303-08800-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
95333-08600-00
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
