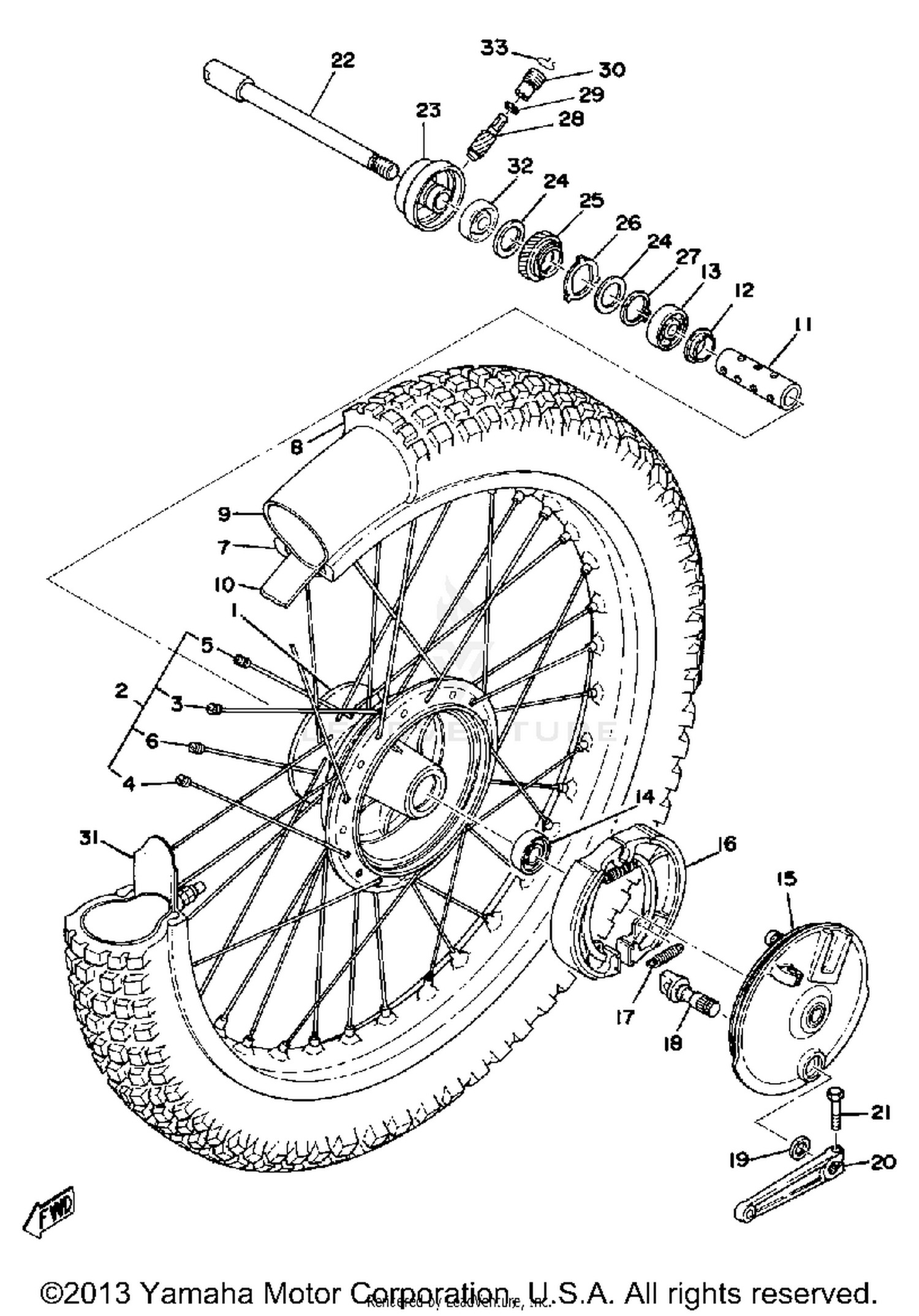

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
1K7-25111-10-98
|
$132.99 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, FRONT
1E6-25104-01-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPOKE SET, INNER 1
1E6-25196-91-00
|
$9.28 | ||
|
Unavailable |
|||
|
#4
SPOKE SET, OUTER 1
1E6-25197-91-00
|
$6.86 | ||
|
Unavailable |
|||
|
#5
SPOKE SET, INNER 2
1E6-25179-91-00
|
$9.28 | ||
|
Unavailable |
|||
|
#6
SPOKE SET, OUTER 2
1E6-25189-91-00
|
$9.28 | ||
|
Unavailable |
|||
|
#7
RIM 1.60X21
94416-21326-00
|
$513.99 | ||
|
Unavailable |
|||
|
#8
300-21 M1B (TT)
94130-213A4-00
|
$78.99 | ||
|
Unavailable |
|||
|
#9
TUBE (MCS 2.75/3.00-21 TR6)
94227-21101-00
Superseded by 94227-21123-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, RIM
94327-21024-00
|
$4.60 | ||
|
Unavailable |
|||
|
#11
SPACER
90560-15116-00
|
$13.99 | ||
|
Unavailable |
|||
|
#12
FLANGE, SPACER 2
146-25116-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93306-20211-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93306-20204-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, BRAKE SHOE
483-25121-00-98
|
$92.80 | ||
|
Unavailable |
|||
|
#16
BRAKE SHOE KIT
322-W2535-00-00
Superseded by 322-W253A-10-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, TENSION
90506-17328-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAMSHAFT
23X-25151-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#19
SEAL, CAMSHAFT
137-25159-00-00
|
$3.75 | ||
|
Unavailable |
|||
|
#20
LEVER, CAMSHAFT 1
322-25155-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#21
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#22
AXLE, WHEEL
509-25181-00-00
|
$46.02 | ||
|
Unavailable |
|||
|
#23
HOUSING, GEAR
1K7-25191-00-00
|
$15.04 | ||
|
Unavailable |
|||
|
#24
WASHER, PLATE
90201-22283-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
GEAR, DRIVE
1K7-25135-00-00
|
$12.52 | ||
|
Unavailable |
|||
|
#26
CLUTCH, METER
1K7-25149-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#27
CIRCLIP
93410-22014-00
Superseded by 99009-22400-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
GEAR, METER
1K7-25138-00-00
|
$8.46 | ||
|
Unavailable |
|||
|
#29
SHIM, ROD
102-18416-00-00
|
$4.65 | ||
|
Unavailable |
|||
|
#30
BUSH
306-25136-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#31
SPACER, BEAD
1T1-25194-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
OIL SEAL
93106-40027-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
CIRCLIP
93410-22014-00
Superseded by 99009-22400-00
|
$7.99 | ||
|
Unavailable |
|||
