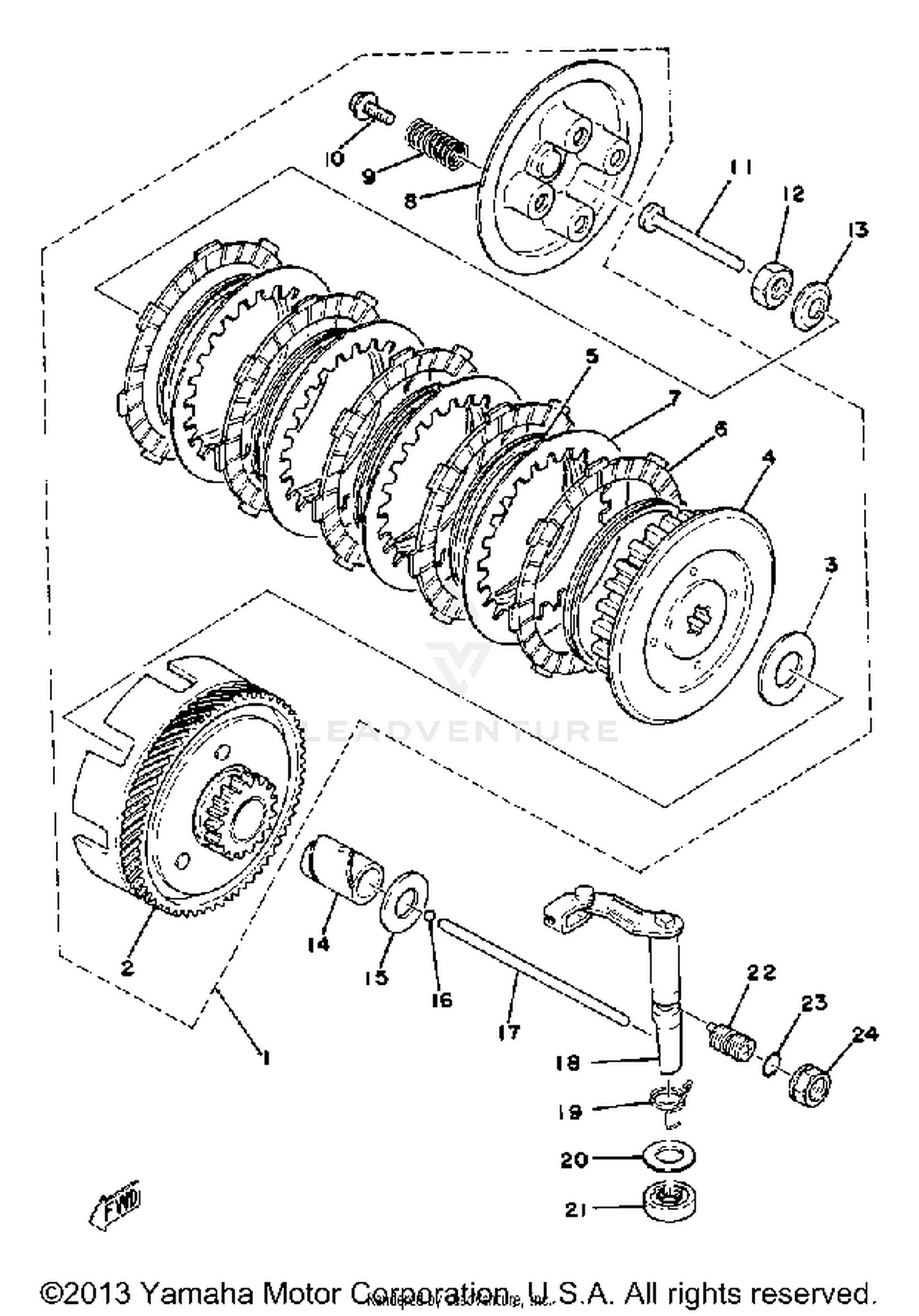

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH ASSEMBLY
1V1-16301-10-00
|
$94.99 | ||
|
Unavailable |
|||
|
#2
PRIMARY DRIVEN GEAR COMP. (74
1V1-16150-10-00
|
$254.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, THRUST 1
131-16154-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOSS, CLUTCH
1V1-16371-02-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, CUSHION
1V1-16367-00-00
Superseded by 1V1-16367-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#6
PLATE, FRICTION
598-16321-01-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH 1
1V1-16324-00-00
Superseded by 1V1-16324-10-00
|
$21.99 | ||
|
Unavailable |
|||
|
#8
PLATE, PRESSURE 1
598-16351-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, COMPRESSION
90501-20125-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, WITH WASHER
90119-05001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROD, PUSH 1
137-16356-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
90170-12060-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, CONICAL SPRING
90208-12015-00
Superseded by 90208-12800-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER
90560-17147-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-17558-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BALL
93503-16010-00
Superseded by 93503-16003-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD, PUSH 2
1X0-16357-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#18
PUSH LEVER ASSEMBLY
525-16380-00-00
|
$94.99 | ||
|
Unavailable |
|||
|
#19
SPRING, TORSION
90508-14132-00
|
$4.85 | ||
|
Unavailable |
|||
|
#20
WASHER, PLATE
90201-14217-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL
93104-14059-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
90149-12097-00
|
$8.99 | ||
|
Unavailable |
|||
|
#23
O-RING
93210-10096-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
90179-12197-00
|
$2.70 | ||
|
Unavailable |
|||
