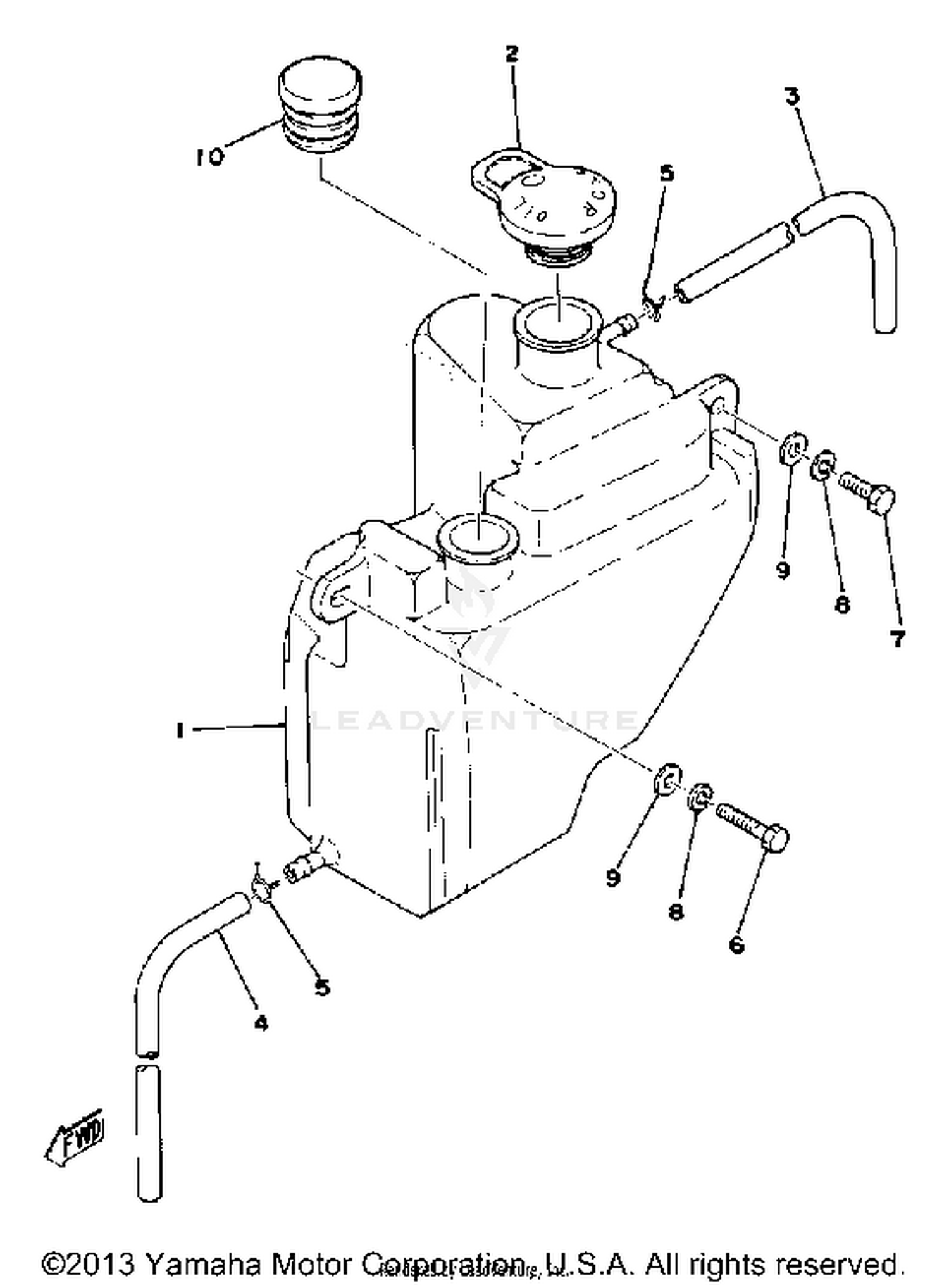

Oil Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK, OIL
1T9-21751-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#2
BODY, CAP
1T9-21771-00-00
Superseded by 1T9-21771-01-00
|
$7.49 | ||
|
Unavailable |
|||
|
#3
HOSE (L675)
90445-09111-00
Superseded by 90445-090F6-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE 5
90445-09252-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP
90467-08003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
BODY, CAP
3M2-21771-00-00
|
$14.49 | ||
|
Unavailable |
|||
