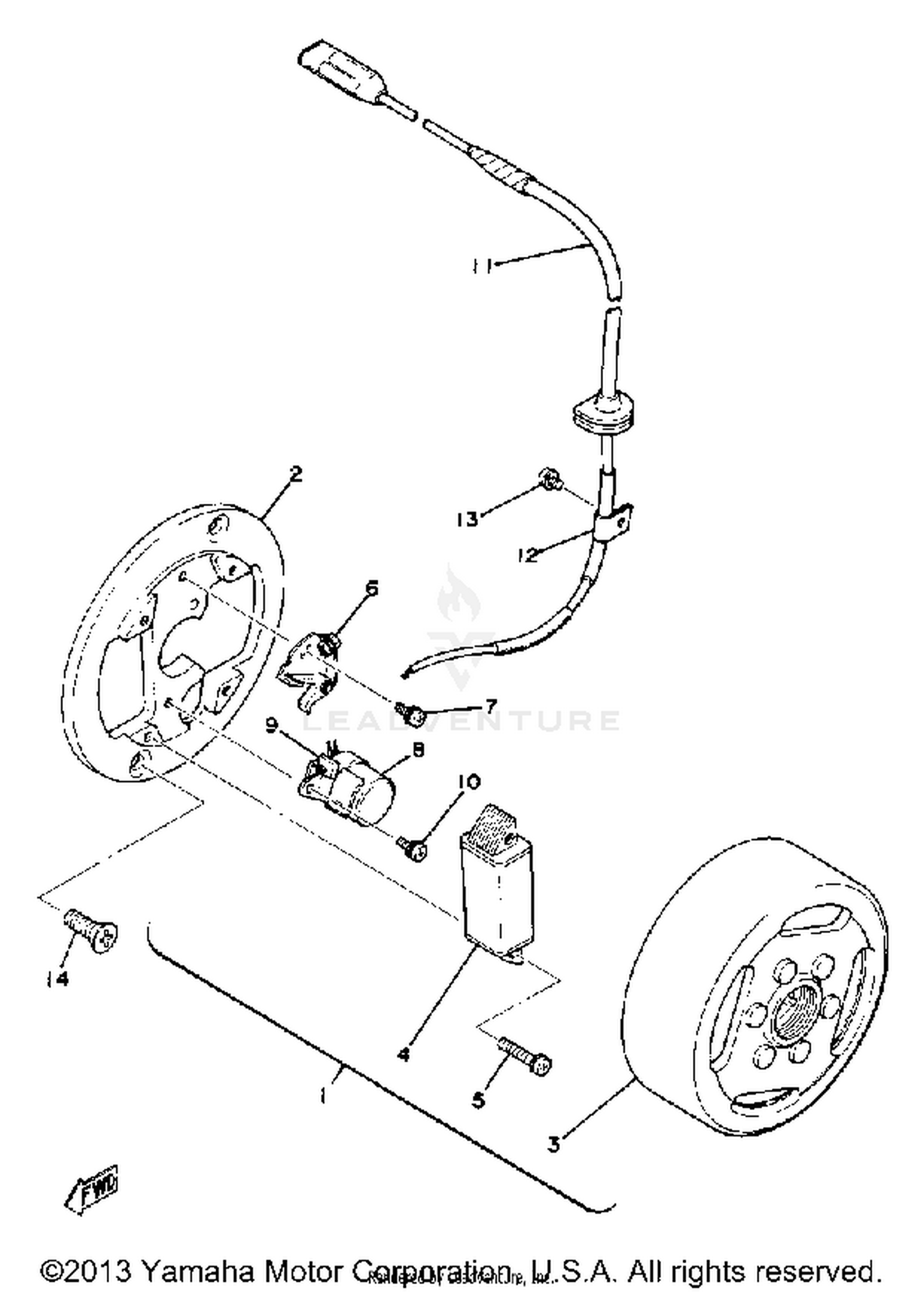

Flywheel Magneto Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FLYWHL MAGNETO ASSEMBLY
3M1-81300-20-00
|
$119.99 | ||
|
Unavailable |
|||
|
#2
BASE, MAGNETO
437-81309-20-00
|
$54.99 | ||
|
Unavailable |
|||
|
#3
ROTOR ASSEMBLY
3M1-81350-20-00
|
$88.72 | ||
|
Unavailable |
|||
|
#4
COIL, SOURCE
511-81312-20-00
|
$163.99 | ||
|
Unavailable |
|||
|
#5
SCREW, PAN HEAD
97602-04125-00
Superseded by 98517-04025-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
CONTACT BRKR ASSEMBLYASSY
2A6-81321-20-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
110-81346-21-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CONDENSER 1
1K8-81325-20-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
LUBRICATOR
116-81331-20-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
110-81346-21-00
|
$5.49 | ||
|
Unavailable |
|||
|
#11
LEAD WIRE ASSEMBLY
3M1-81315-20-00
|
$8.28 | ||
|
Unavailable |
|||
|
#12
CLAMP
104-81328-20-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
97601-04106-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, OVAL HEAD (92701-06012)
98603-06012-00
|
$1.85 | ||
|
Unavailable |
|||
