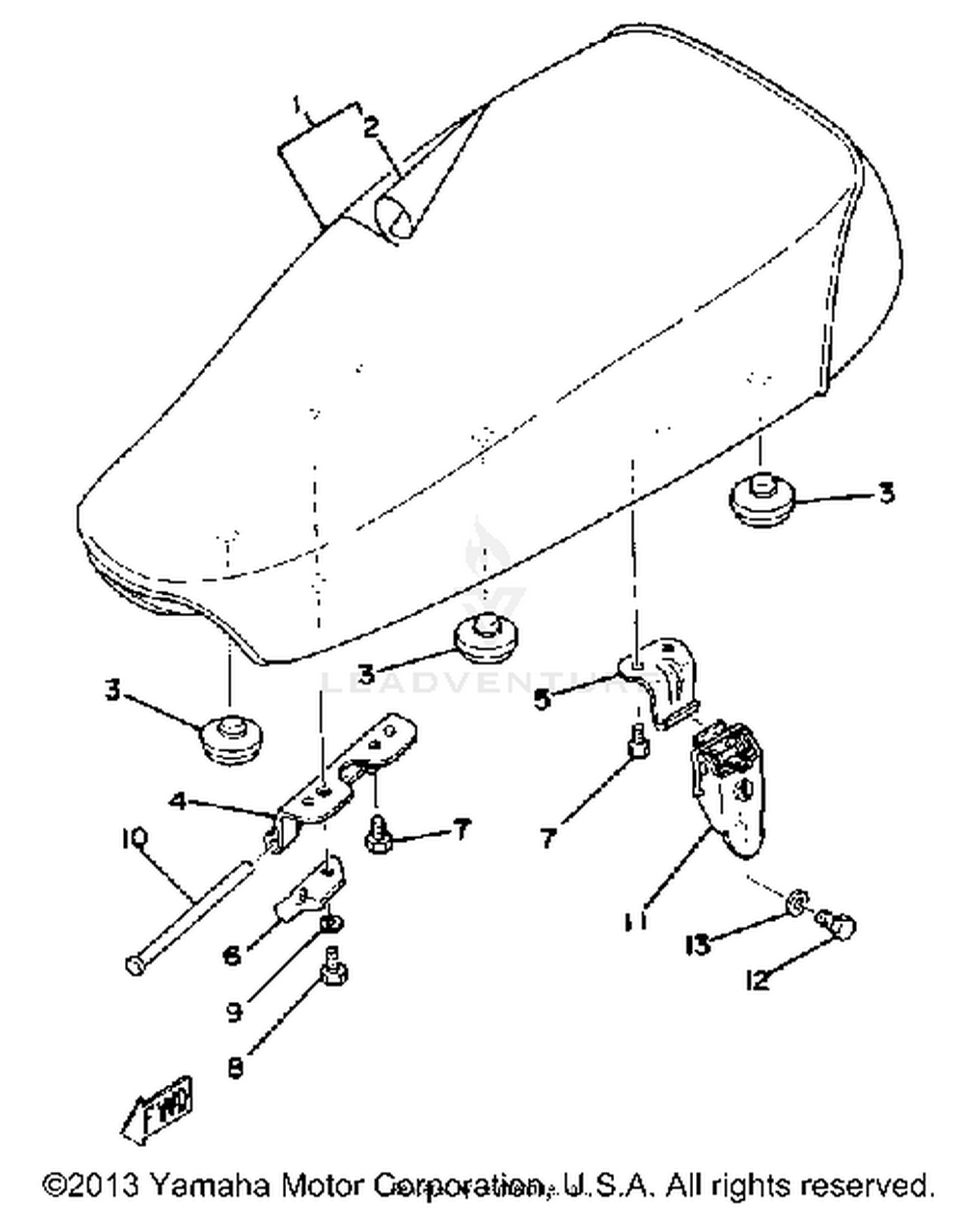

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSEMBLY
1T9-W2471-01-00
|
$318.99 | ||
|
Unavailable |
|||
|
#2
COVER, SINGLE SEAT
1T9-24711-00-00
|
$82.99 | ||
|
Unavailable |
|||
|
#3
PAD, SEAT
1L9-24741-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HINGE, SEAT
538-24726-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#5
BRACKET, SEAT
278-24728-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#6
STOPPER
1T9-24768-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#7
BOLT
90101-06304-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN
1K8-24774-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAT LEVER ASSEMBLY
214-24708-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
97013-06012-00
|
$4.85 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
