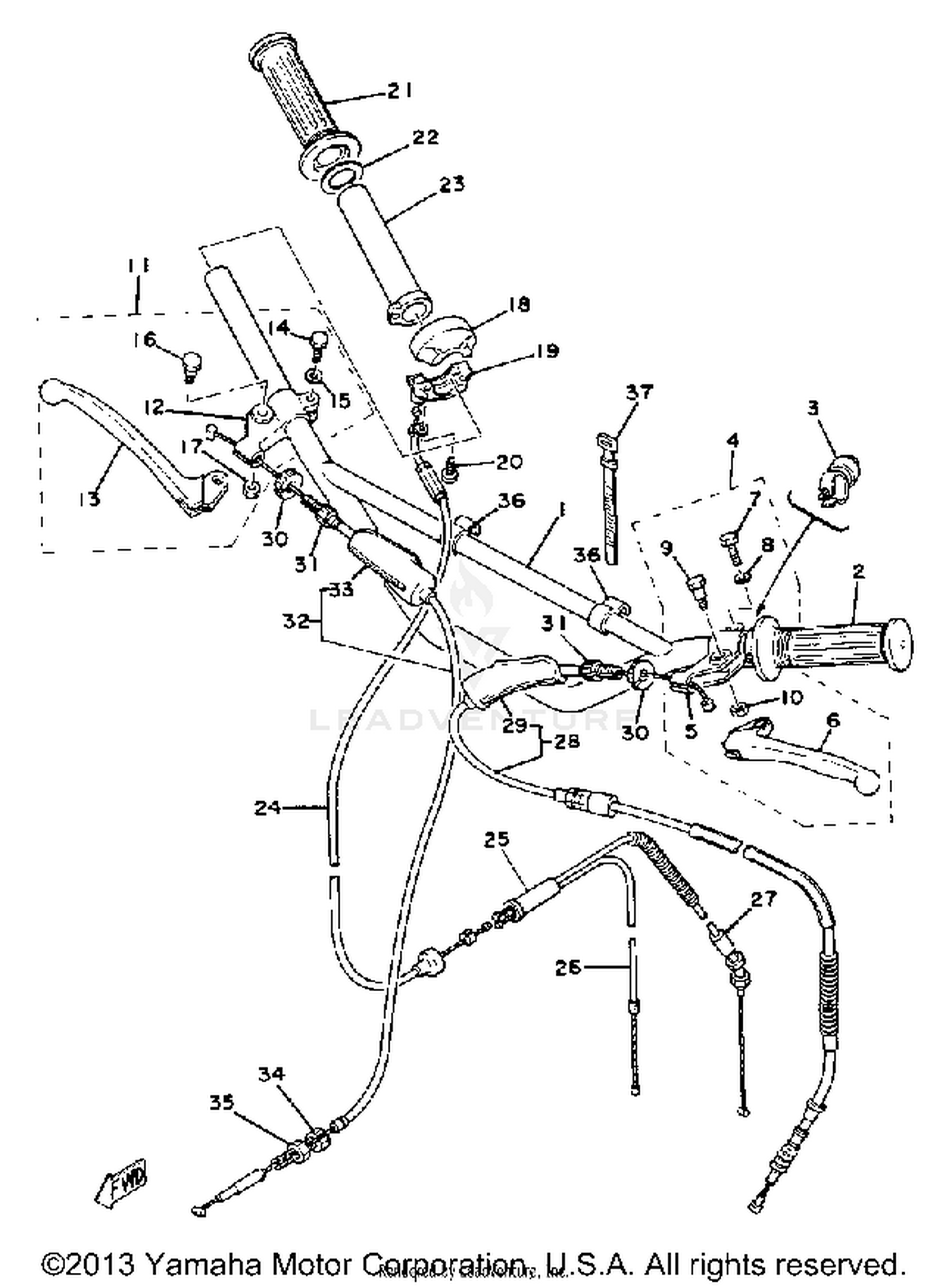

Handle-wire Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
3M1-26111-01-00
|
$69.99 | ||
|
Unavailable |
|||
|
#2
GRIP
2N3-26241-00-00
Superseded by 2N3-26241-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH, HANDLE 1
3M1-83976-00-00
|
$24.95 | ||
|
Unavailable |
|||
|
#4
LEVER HOLDER ASSEMBLY 1
214-82910-06-00
|
$53.99 | ||
|
Unavailable |
|||
|
#5
HOLDER, LEVER 1
214-82911-01-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
LEVER 1
214-83912-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (661)
97003-06022-00
Superseded by 97013-06022-00
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
90109-06797-00
Superseded by 90109-061F3-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER HOLDER ASSEMBLY 2
233-82920-34-00
|
$30.48 | ||
|
Unavailable |
|||
|
#12
HOLDER, LEVER 2
233-82921-31-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER R
233-83922-30-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT (661)
97003-06022-00
Superseded by 97013-06022-00
|
$0.85 | ||
|
Unavailable |
|||
|
#15
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#16
BOLT
90109-06797-00
Superseded by 90109-061F3-00
|
$6.49 | ||
|
Unavailable |
|||
|
#17
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Unavailable |
|||
|
#18
CAP, GRIP UPPER
1V1-26281-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#19
CAP, GRIP LOWER
1V1-26282-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#21
GRIP (RIGHT)
2N3-26242-00-00
Superseded by 2N3-26242-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE (1V1-26249-00)
90201-261L1-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
TUBE, THRTL GUIDE
1V1-26243-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CABLE,THROTTLE1
3M1-26311-00-00
Superseded by 3M1-26311-01-00
|
$40.99 | ||
|
Unavailable |
|||
|
#25
CONNECTOR, CABLE
214-26261-00-00
Superseded by 214-26261-01-00
|
$7.49 | ||
|
Unavailable |
|||
|
#26
CABLE, THROTTLE 2
1T9-26312-10-00
|
$14.49 | ||
|
Unavailable |
|||
|
#27
CABLE, PUMP
1T9-26321-10-00
|
$37.99 | ||
|
Unavailable |
|||
|
#28
CABLE, CLUTCH
3M1-26335-00-00
Superseded by 3M1-26335-10-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
COVER, HANDLE LEVER 1
382-26372-01-00
Superseded by 498-26372-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT
90179-08316-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
CABLE, BRAKE
3M1-26341-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#33
COVER, HANDLE LEVER 1
498-26372-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#34
BOLT
90123-06011-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, SPEC''L SHAPE
90179-06143-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLIP
90468-15064-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
