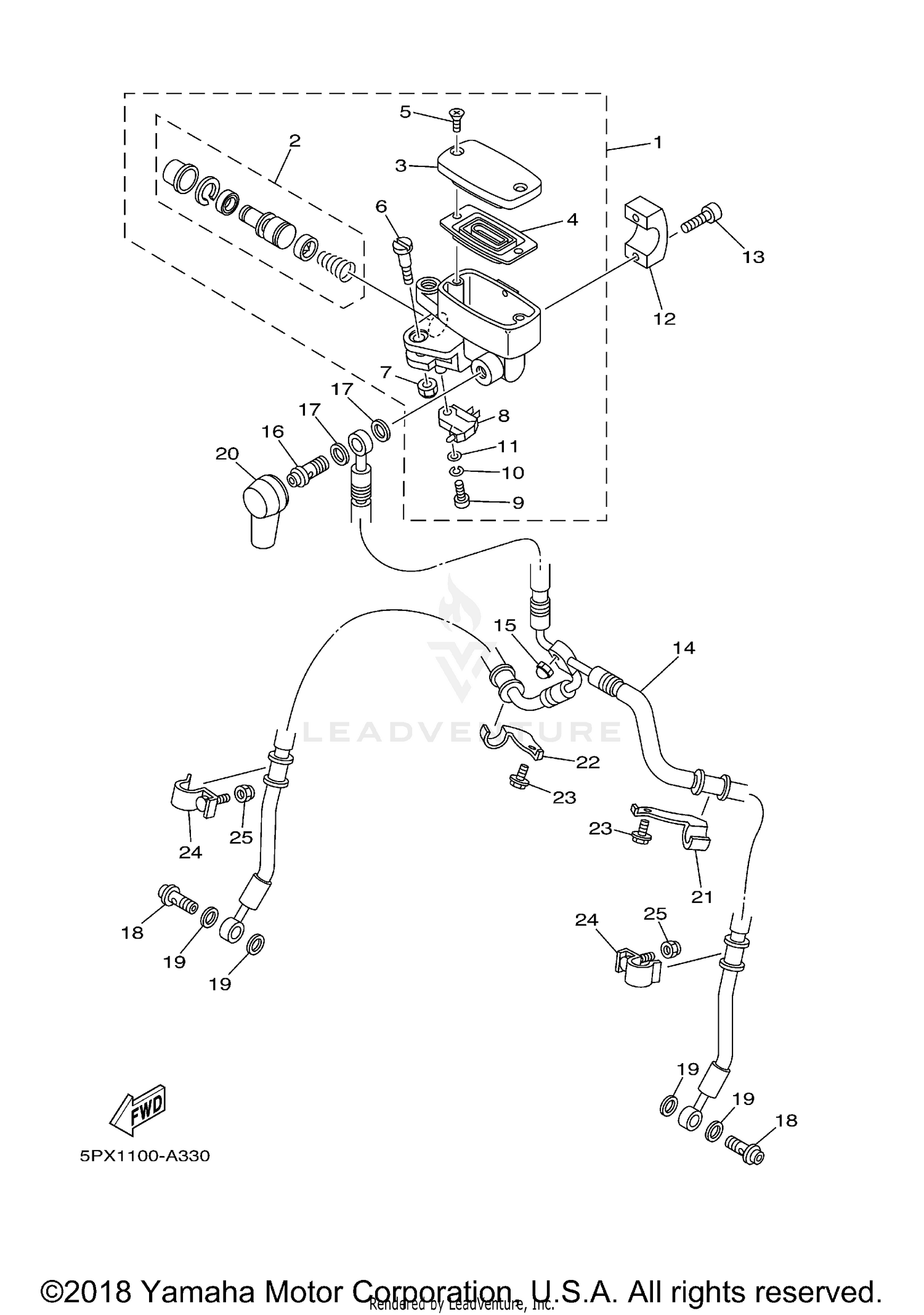

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSY
5PX-W2587-00-00
Superseded by 5PX-W2587-01-00
|
$417.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
5PX-W0041-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RESERVOIR CAP SET
4NK-W2585-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
DIAPHRAGM, RESERVOIR
4NK-25854-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
4NK-2589H-00-00
Superseded by 3D8-2589H-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, LEVER
4NK-2589F-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, U
95604-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
FRONT STOP SWITCH ASSY
4HM-83980-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW,PANHEAD
98502-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92902-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
92902-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, MASTER CYLINDER
4NK-25867-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
91314-06025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE, BRAKE 1
5PX-25872-00-00
|
$191.90 | ||
|
Unavailable |
|||
|
#15
NUT
90176-06043-00
Superseded by 95307-06800-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, UNION
90401-10172-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, UNION
90401-10172-00
|
$5.49 | ||
|
Unavailable |
|||
|
#19
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Unavailable |
|||
|
#20
BOOT, MASTER CYLINDER
4L0-25862-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOLDER, BRAKE HOSE
5PX-25886-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#22
HOLDER, BRAKE HOSE
5PX-25887-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
95807-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOLDER, BRAKE HOSE 1
5PX-25875-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#25
NUT
90176-06043-00
Superseded by 95307-06800-00
|
$3.60 | ||
|
Unavailable |
|||
