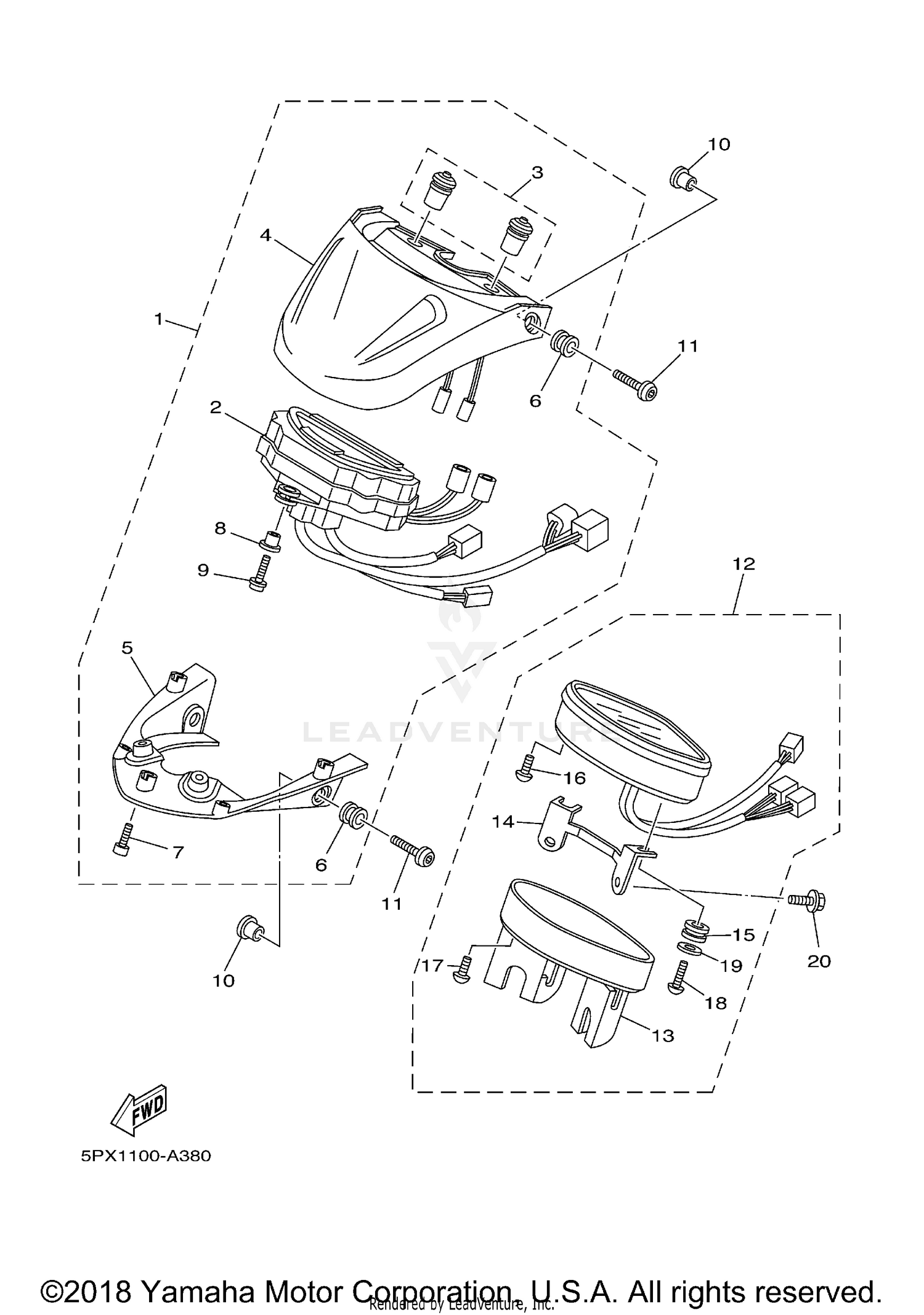

Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
METER ASSY (MPH)
5PX-83500-20-00
Superseded by 5PX-83500-21-00
|
$964.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LCD ASSY
5PX-8358G-20-00
Superseded by 5PX-8358G-21-00
|
$919.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH, METER CONTROL
5PX-8358J-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, METER 1 ASSY
5PX-8357B-00-00
|
$368.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, METER 2
5PX-83579-00-00
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET
90480-12007-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
91380-04010-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
5PX-83522-00-00
|
$3.30 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD WITH WASHER
97602-03112-00
|
$1.15 | ||
|
Unavailable |
|||
|
#10
SPACER
90560-06201-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
90149-06302-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPEEDOMETER ASSY
5PX-83570-00-00
Superseded by 5PX-83570-01-00
|
$339.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, SPEEDOMETER
5PX-83507-00-00
|
$83.99 | ||
|
Unavailable |
|||
|
#14
BRACKET, METER
5PX-83519-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER
4XV-83513-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, TAPPING
97707-30014-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, TAPPING
90164-03010-00
Superseded by 90167-03058-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
53Y-83524-00-00
Superseded by 90201-05033-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEXAGON SOCKET HEAD
91314-08012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
