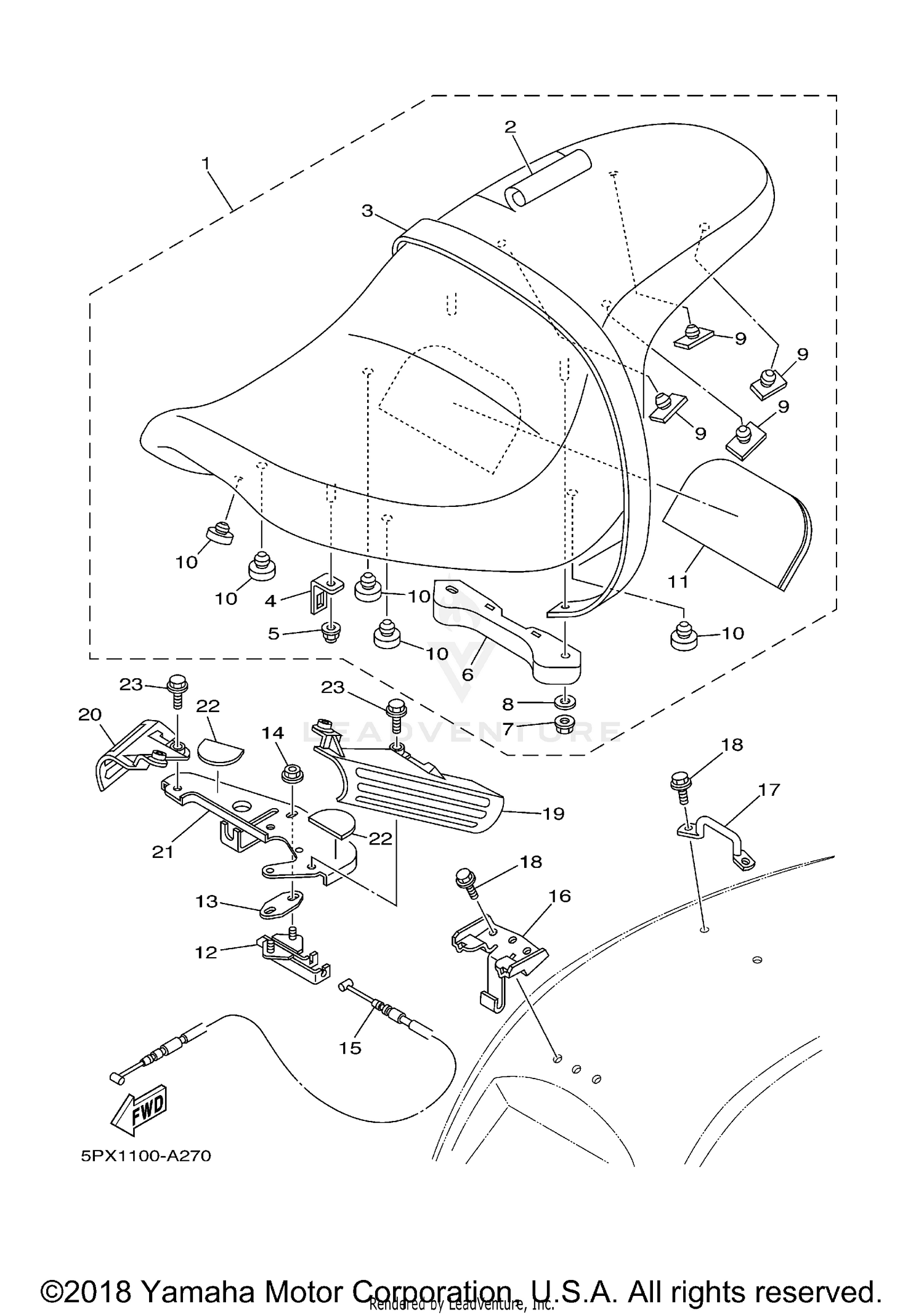

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DOUBLE SEAT ASSY
5PX-24730-00-00
|
$414.91 | ||
|
Unavailable |
|||
|
#2
SEAT COVER COMP.
5PX-2470F-00-00
|
$188.99 | ||
|
Unavailable |
|||
|
#3
SEAT BAND ASSY
5PX-24720-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#4
STAY, REAR
5PX-24719-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, FLANGE
95707-06500-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, SEAT
5PX-2471A-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#7
NUT, U FLANGE
95607-06200-00
Superseded by 95604-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER, SEAT
509-24724-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PAD, SEAT
22W-24741-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, SEAT
5PX-24723-01-00
|
$4.70 | ||
|
Unavailable |
|||
|
#12
SEAT LOCK ASSY
4BP-24780-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE
4BP-24792-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, FLANGE
95707-06500-00
|
$1.15 | ||
|
Unavailable |
|||
|
#15
CABLE, SEAT LOCK
5PX-2478E-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET
5PX-2475N-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET 6
5PX-2475R-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95027-08016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PROTECTOR, 1
5PX-2476U-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PROTECTOR, 2
5PX-2476V-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRACKET, SEAT 1
5PX-21341-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAL 2
5PX-21735-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
95817-08020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
