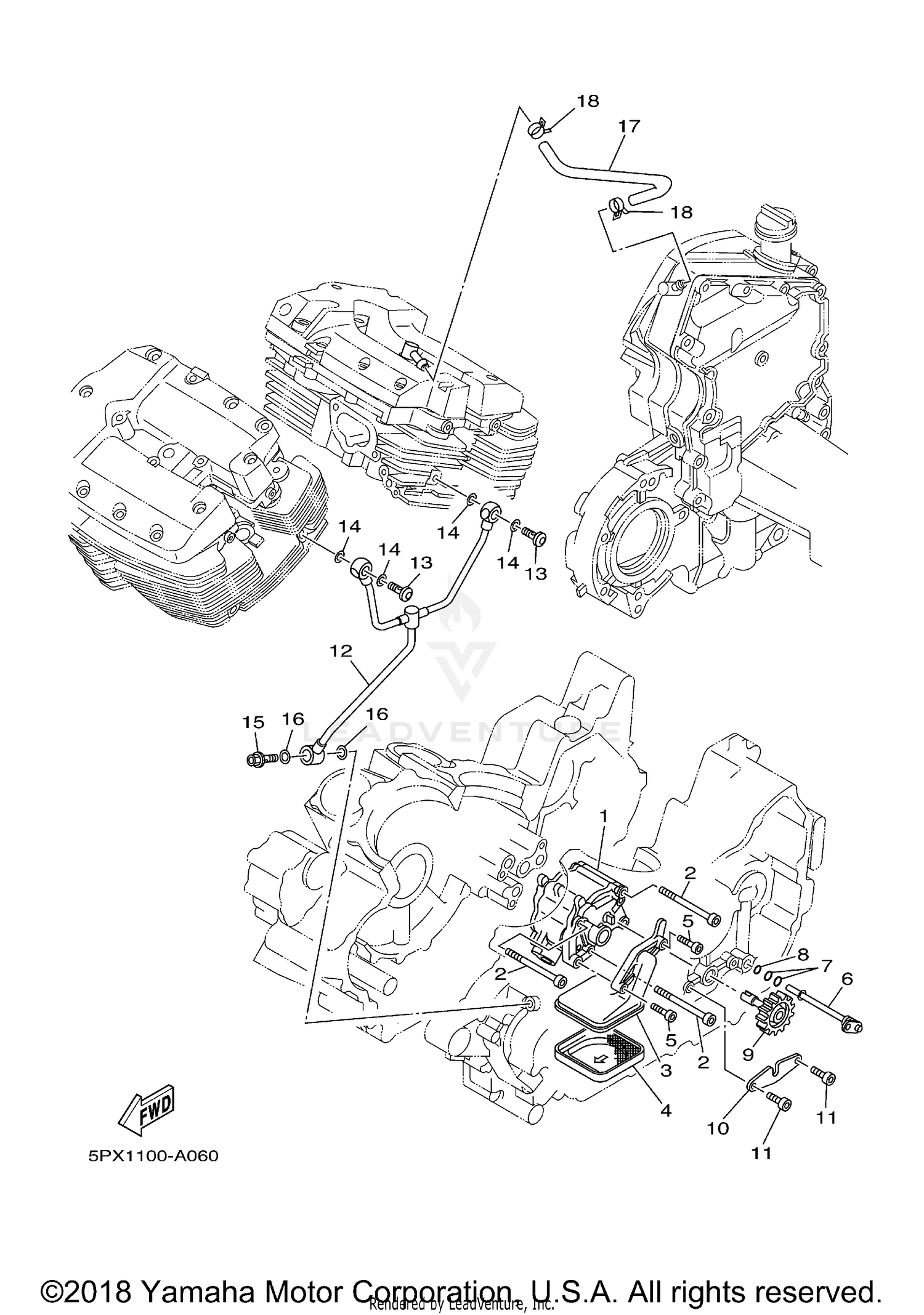

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL PUMP ASSY
5PX-13300-00-00
Superseded by 5PX-13300-03-00
|
$484.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
91317-06080-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOUSING, STRAINER
4WM-13412-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
STRAINER, OIL
4WM-13411-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEXAGON SOCKET HEAD
90110-06057-00
Superseded by 90110-06058-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE, DELIVERY 2
4WM-13171-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-09754-00
Superseded by 93210-09350-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
93210-06667-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
DRIVEN GEAR ASSY
5PX-13360-00-00
Superseded by 5YU-13360-00-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, STOPPER 1
4WM-1357N-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (4MY)
91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL PIPE COMP. 1
5PX-13405-00-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, UNION
90401-10175-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET
90430-10188-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, UNION
90401-08001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET
90430-08119-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE, OIL 1
5PX-13464-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP
90467-110A0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
