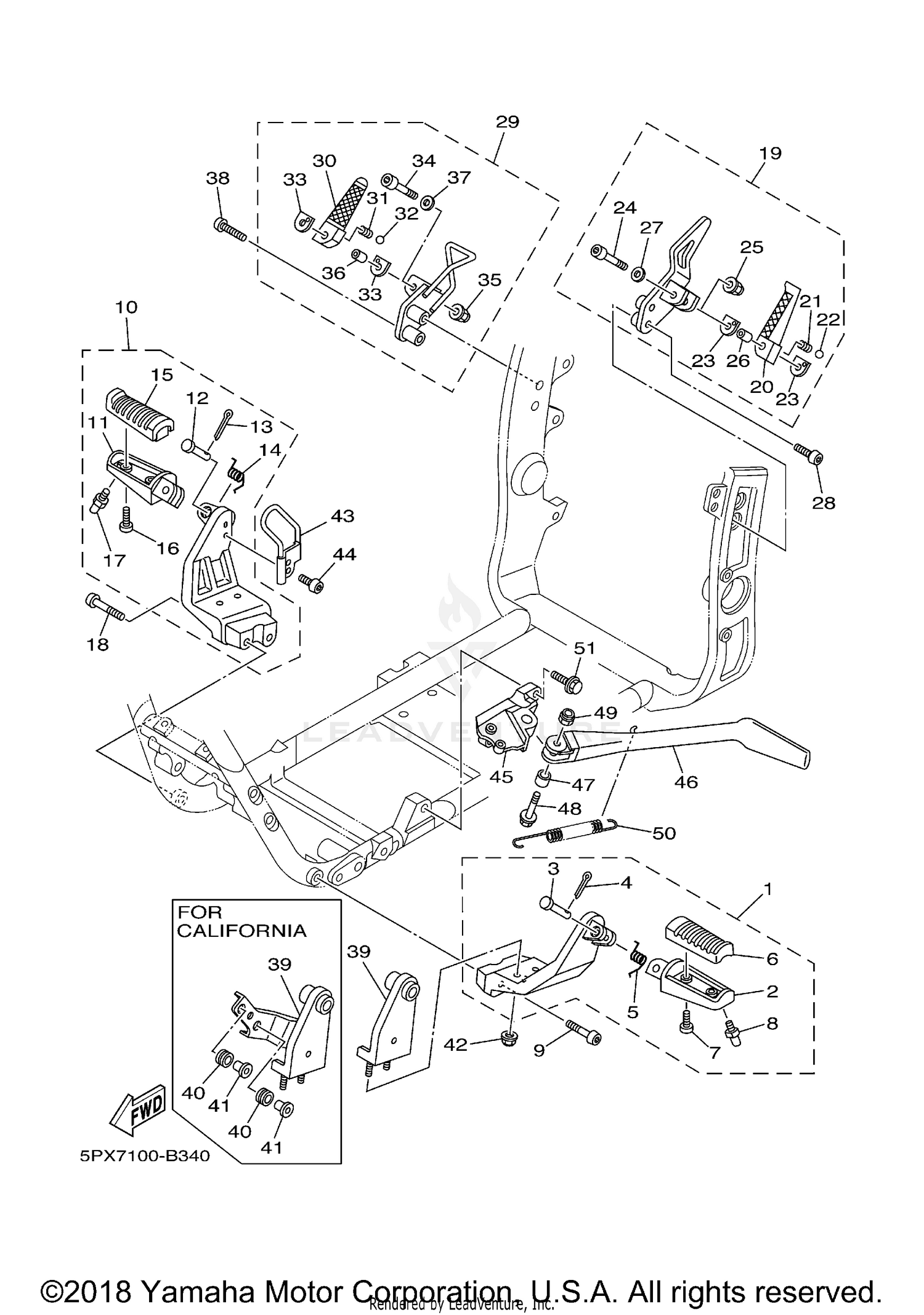

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FOOTREST ASSY (LEFT)
5PX-27410-00-00
|
$289.99 | ||
|
Unavailable |
|||
|
#2
FOOTREST
4BH-27451-01-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, CLEVIS
91701-08035-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TORSION
90508-20572-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, FOOTREST
4BP-27413-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
90157-05079-00
Superseded by 98507-05014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
5PX-27435-00-00
Superseded by 5PX-27435-09-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEX. SOCKET BUTTON
92014-10050-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
FRONT FOOTREST ASSY (RIGHT)
5PX-27420-00-00
|
$360.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
FOOTREST
4BH-27461-01-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, CLEVIS
91701-08035-00
|
$6.49 | ||
|
Unavailable |
|||
|
#13
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Unavailable |
|||
|
#14
SPRING, TORSION
90508-20572-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
COVER, FOOTREST
4BP-27413-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN HEAD
90157-05079-00
Superseded by 98507-05014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#17
BOLT
5PX-27435-00-00
Superseded by 5PX-27435-09-00
|
$17.99 | ||
|
Unavailable |
|||
|
#18
BOLT, HEX. SOCKET BUTTON
92014-10050-00
|
$7.49 | ||
|
Unavailable |
|||
|
#19
REAR FOOTREST ASSY 1
5PX-27430-00-00
|
$131.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
FOOTREST, REAR 1
5PX-27431-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, COMPRESSION
90501-15001-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
BALL
93501-04011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPECIAL
2NT-27437-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
91380-06040-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, U FLANGE
95604-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR, LEVER 1
90387-06554-00
Superseded by 36Y-83913-01-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-066G5-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, HEX. SOCKET BUTTON
90111-10010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
REAR FOOTREST ASSY 2
5PX-27440-00-00
|
$130.99 | ||
|
Unavailable |
|||
|
#30
FOOTREST, REAR 2
5PX-27441-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#31
SPRING, COMPRESSION
90501-15001-00
|
$2.05 | ||
|
Unavailable |
|||
|
#32
BALL
93501-04011-00
|
$7.49 | ||
|
Unavailable |
|||
|
#33
WASHER, SPECIAL
2NT-27437-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#34
BOLT
91380-06040-00
|
$2.10 | ||
|
Unavailable |
|||
|
#35
NUT, U FLANGE
95604-06200-00
|
$7.49 | ||
|
Unavailable |
|||
|
#36
COLLAR, LEVER 1
90387-06554-00
Superseded by 36Y-83913-01-00
|
$9.49 | ||
|
Unavailable |
|||
|
#37
WASHER, PLATE
90201-066G5-00
|
$2.20 | ||
|
Unavailable |
|||
|
#38
BOLT, HEX. SOCKET BUTTON
90111-10011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
BRACKET 3
5PX-27443-10-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BRACKET 3
5PX-27443-00-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
GROMMET
90480-13163-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
COLLAR
90387-062L2-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT, SELF-LOCKING
95607-08200-00
Superseded by 90185-08169-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
GUIDE, PLATE
5PX-2721A-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#44
BOLT, BUTTON HEAD
92017-06010-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#45
BRACKET, SIDE STAND
5PX-27321-00-00
|
$167.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
STAND, SIDE
5PX-27311-00-00
|
$216.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
COLLAR
90387-1215U-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT, FLANGE
90105-12018-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
NUT, SELF-LOCKING
90185-12119-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
SPRING, TENSION
90506-35003-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
BOLT, FLANGE
90105-10061-00
Superseded by 95817-10030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
