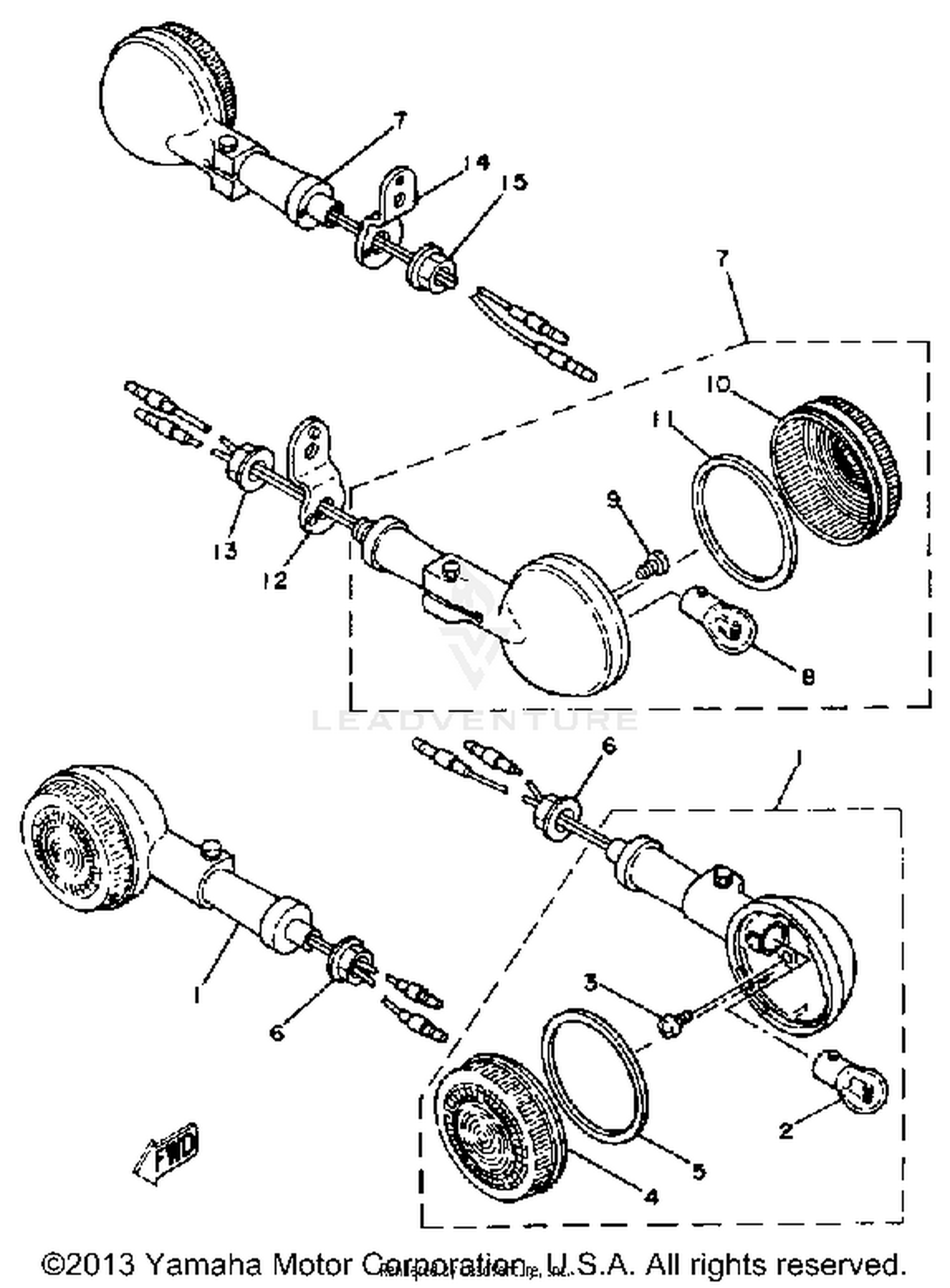

Flasher Light Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRT FLSHR LITE ASSEMBLY
5H0-83310-70-00
|
$136.99 | ||
|
Unavailable |
|||
|
#2
BULB (12V-32CP)
256-83311-70-XX
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, TAPPING
97701-40510-00
Superseded by 97707-40610-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS, FLASHER
3Y6-83312-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, FLASHER LENS
3Y6-83313-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, FLANGE
95701-12500-00
Superseded by 90179-12588-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
R FLSHR LITE ASSEMBLY
3Y6-83330-70-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BULB (12V-32CP)
256-83311-70-XX
|
$2.35 | ||
|
Unavailable |
|||
|
#9
SCREW, TAPPING
97701-40510-00
Superseded by 97707-40610-00
|
$7.49 | ||
|
Unavailable |
|||
|
#10
LENS, FLASHER
3Y6-83312-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#11
GASKET, FLASHER LENS
3Y6-83313-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#12
STAY, FLASHER 1
5H0-83318-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#13
NUT, FLANGE
95701-12500-00
Superseded by 90179-12588-00
|
$6.49 | ||
|
Unavailable |
|||
|
#14
STAY, FLASHER 2
5H0-83328-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#15
NUT, FLANGE
95701-12500-00
Superseded by 90179-12588-00
|
$6.49 | ||
|
Unavailable |
|||
